45° / 0 3NH Laboratory Colorimeter NS808 Laboratory Brightness Factor And Chromaticity Coordinates
45° / 0 3NH Laboratory Colorimeter NS808 Laboratory Brightness Factor And Chromaticity Coordinates
45° / 0 3NH Laboratory Colorimeter NS808 Laboratory Brightness Factor And Chromaticity Coordinates
45° / 0 3NH Laboratory Colorimeter NS808 Laboratory Brightness Factor And Chromaticity Coordinates
45° / 0 3NH Laboratory Colorimeter NS808 Laboratory Brightness Factor And Chromaticity Coordinates
45° / 0 3NH Laboratory Colorimeter NS808 Laboratory Brightness Factor And Chromaticity Coordinates
45° / 0 3NH Laboratory Colorimeter NS808 Laboratory Brightness Factor And Chromaticity Coordinates
45° / 0 3NH Laboratory Colorimeter NS808 Laboratory Brightness Factor And Chromaticity Coordinates
Specifications
Brand Name :
3nh
Model Number :
NS808
Certification :
CE / ROHS / TUV / ISO9001:2015
Place of Origin :
P.R.China
MOQ :
1pcs
Price :
Negotiable
Payment Terms :
T/T,Paypal,, Western Union
Supply Ability :
5000pcs per month
Delivery Time :
1 working day
Packaging Details :

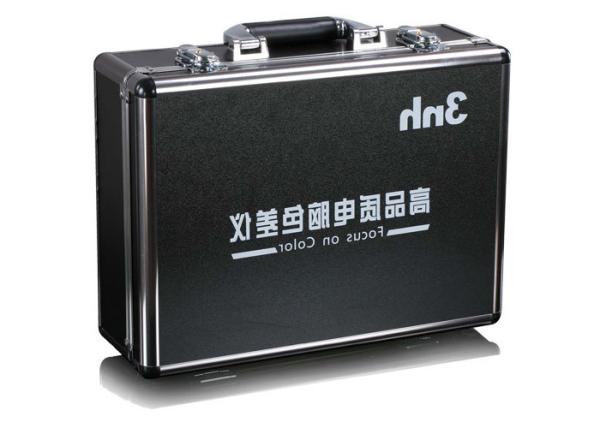

Packed in Alumimum box firstly, and then reinforced with carton box for outer packing,Carton Size:40.5*20.9*31.9cm
Illuminating/Viewing Geometry :
45°/0 (45° ring-shaped illumination, vertical viewing angle),
Data Storage :
1000 Standards, 15000 Samples
Colorimetric Value :
Standard deviation ΔE*ab≤0.04
PC Software :
SQCT
Inter-instrument Error :
Within Delta E*ab 0.2 (Average for 12 BCRA Series II color tiles)
Measuring Aperture :
Φ8mm
Description

45° / 0 3NH Laboratory Colorimeter NS808 Laboratory Brightness Factor And Chromaticity Coordinates

Applications

NS808 precise traffic road sign spectrophotometer is a dedicated instrument for the color measurements of traffic road signs. NS808 can be easily used to measure the brightness factor of reflecting film and chromaticity coordinates of all kinds of traffic signs. Its system has the built-in GB2893 safety color module and all the standard color modules of GB/T18833 road traffic reflecting film. So, users can choose from them freely according to application. And users can also conveniently customize polygon tolerance they want.

NS808 spectrophotometer also goes with a powerful PC software SQCT which includes more extended functions that can enormously facilitate your work. Once combined with a PC via the software SQCT, NS808 can perform perfect measurements, analysis and comparison of the color of traffic signs.

With the configuration of universal test component and powder test box, measurements of liquid, paste, powder and particle can be implemented without hesitation.

Specifications

NS808 Precise Traffic Sign Spectrophotometer
Model Number NS808
Illuminating/Viewing Geometry 45°/0 (45° ring-shaped illumination, vertical viewing angle),
Conform to standard CIE No. 15, GB/T3978, GB2893, GB/T18833
Measuring Aperture Φ8mm
Integrating Sphere Diameter Φ58mm
Repetitive Error Spectral Reflectance: Standard deviation within 0.1%(400~700nm: within 0.2%)
Colorimetric Value: Standard deviation ΔE*ab≤0.04 (Measurement Conditions: white calibration plate measured 30 times at 5 seconds intervals after white calibration performed.)
Inter-Instruments Error ΔE*ab≤0.2 (Average value of the measurement results of the 12 tint plates of BCRA series Ⅱ)
Wavelength Range 400~700nm
Wavelength Pitch 10nm
Reflectance Range 0~200%
Color Space CIE LAB, XYZ, Yxy, LCh, CIE LUV
Color Difference Formula ΔE*ab, ΔE*uv, ΔE*94, ΔE*cmc(2:1), ΔE*cmc(1:1), ΔE*00
Display Data Spectral Value/Graph, Colorimetric Value, Color Difference Value/Graph, PASS/FAIL Result, Color Offset, Color Simulation

Other Chromaticity Data WI(ASTM E313, CIE/ISO, AATCC, Hunter),
YI(ASTM D1925, ASTM 313),
TI(ASTM E313, CIE/ISO),
Metamerism Index (Mt),
Color Strength, Color Stain, Color Fastness
Observer Angle 2°/10°
Light Sources Type D65, D50, A, C, D55, D75, F2, F6, F7, F8, F10, F11, F12
Light Source Device Combined LED Light
Light Source Life 5 years, More than 1.6 million measurements
Sensor Silicon Photoelectric Diode Array
Measuring Time 1.5s
Data Storage 1000 Standards, 15000 Samples
Data Port USB&RS232
Display Size TFT 3.5"
Touch-Screen Yes
Operating Temperature 0~40℃(32~104℉)
Storage Temperature -20~50℃(-4~122℉)
PC Software SQCT
Weight 600g
Dimension 90*77*230mm
Battery Large Capacity Li-ion Battery
Standard Accessory Power Adapter, Li-ion Battery, Operating Instruction, CD-ROM(containing color management software), Data Cable, White and Black Calibration Cavity, Protective Cover and Wrist Strap.
Optional Accessory Universal Test Components, Micro Printer, Powder Test Box
Certificates CE & RoHS & TUV & FCC & ISO9001

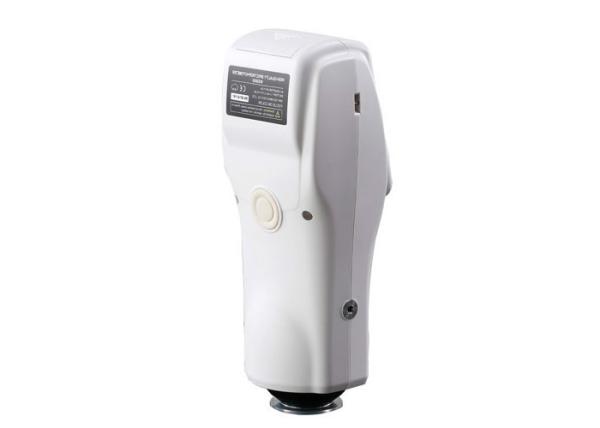

Product detail shows


45° / 0 3NH Laboratory Colorimeter NS808 Laboratory Brightness Factor And Chromaticity Coordinates

45° / 0 3NH Laboratory Colorimeter NS808 Laboratory Brightness Factor And Chromaticity Coordinates

45° / 0 3NH Laboratory Colorimeter NS808 Laboratory Brightness Factor And Chromaticity Coordinates

You may like

FAQ


1: Q: Is your company accept customization?
A: We accept OEM/ ODM. Any color and any logo is welcome if placed at least 10pcs.

2: Q:Does your products have warranty?
A: YES, We offer 1 year warranty. Our policy: Is there any quality problem, First, send the defective machine to us and you bear the freight. Second, we send back to you free after fixed.

3: Q: After an order placed, when to deliver?
A: It depends on whether we are in stock or not. If we are, generally we can arrange shipment in 1 days after payment. If not, it will be decided by factory production.

4: Q: How to place an order?
A: a: send us an inquiry.
b: confirm your wanted products
c: confirm the price and freight and other details
d: finish the payment
e: we arrange the shipment
f: you got your products
