Φ8mm Measuring Aperture Integrating Colorimeter NR200 to Develop Multifaceted Colors in Duochrome Cosmetics
Φ8mm Measuring Aperture Integrating Colorimeter NR200 to Develop Multifaceted Colors in Duochrome Cosmetics
Φ8mm Measuring Aperture Integrating Colorimeter NR200 to Develop Multifaceted Colors in Duochrome Cosmetics
Φ8mm Measuring Aperture Integrating Colorimeter NR200 to Develop Multifaceted Colors in Duochrome Cosmetics
Φ8mm Measuring Aperture Integrating Colorimeter NR200 to Develop Multifaceted Colors in Duochrome Cosmetics
Φ8mm Measuring Aperture Integrating Colorimeter NR200 to Develop Multifaceted Colors in Duochrome Cosmetics
Φ8mm Measuring Aperture Integrating Colorimeter NR200 to Develop Multifaceted Colors in Duochrome Cosmetics
Φ8mm Measuring Aperture Integrating Colorimeter NR200 to Develop Multifaceted Colors in Duochrome Cosmetics
Specifications
Brand Name :
3nh
Model Number :
NR200
Certification :
CE / FCC/ ROHS / TUV / ISO9001:2015
Place of Origin :
China
MOQ :
1pcs
Price :
Negotiable
Payment Terms :
T/T, Western Union,Paypal
Supply Ability :
5000pcs/month
Delivery Time :
1 working day
Packaging Details :
Packed in carton box
Illuminating/Viewing Geometry :
D/8° (Diffused illumination, 8 degree viewing angle),
Dimension :
205×70×100 mm
Measuring Aperture :
Φ8mm
Repetitive Error :
Standard Deviation within ΔE*ab=0.08
Storage :
100 Standards, 20000 Samples
Errors Between Each Equipment :
ΔE*ab ≤0.50
Description

Φ8mm Measuring Aperture Integrating Colorimeter NR200 to Develop Multifaceted Colors in Duochrome Cosmetics

There’s a lot of room for error in creating cosmetics, as development hinges on interference pigments. These pigments “interfere” with an existing color and if used incorrectly, the end result could be lackluster. As such, base color is the key to establishing a cosmetic that uses interference pigments to their full advantage. By using Φ8mm Measuring Aperture Integrating Colorimeter NR200, cosmetics manufacturers can develop a base color that works perfectly with interference pigments and move that color into mass production.

Brief Introduction

Φ8mm Measuring Aperture Integrating Colorimeter NR200 to Develop Multifaceted Colors in Duochrome Cosmetics is another mainstream brand Integrating Colorimeter introduced by 3nh which has synthesized the advantages of ten more traditional imported colorimeters and has experienced ten thousands tests and applied many innovative technologies. Accurate, Stable, Exquisite and Affordable!

Main Features

1. Leading Humanity Design and Convenient Operation
One-touch access to measurement interface
Structure design in line with ergonomics
Easy-to-use operating interface
2. Stable Measurement Performance
The repeatability △E is 0.08.
Portable structure design which is more conductive to keeping the instrument stable when using.
3. Convenient and Fast Locating
Illumination locating is a fast, simple and convenient locating which created by 3nh.
4. PC Software—Realize More Function Expansion
3nh has the intellectual property of PC software CQCS3. The corresponding software serial number and password protection are configured in 3nh colorimeter.
Be able to perform color difference analysis, color difference cumulative analysis, chromaticity index, color sample database management, simulating object color, etc.
5. Advanced Power Management Design
3nh is the first enterprise using high capacity Li-ion battery in colorimeter.
3nh Li-ion battery can be repeatedly charged which will save cost. Meanwhile, it can measure more than 3000 times on one charge to ensure the stability of long time measurement.

Technical Specification

Name&Model Colorimeter NR200
Illuminating/Viewing Geometry 8°/D (8° illumination, diffuse Viewing),
Observer CIE 10° Standard Observer
Measuring Aperture Φ8mm
Repetitive Error Standard Deviation within ΔE*ab=0.08
(Calculating Method: Average value of the results of 30 measurements of the standard white plate)
Inter-Instrument Error Within ΔE*ab=0.5
Color Space CIE L*a*b*C*h, CIE L*a*b, CIE XYZ
Color Difference Formula ΔE*ab, ΔL*a*b*, ΔE*C*h*
Measurement Time 1.5s
Measuring Range L: 0-100
Light Source Type D65
Light Source Device LED Blue Light Excitation
Light Source Life 5 years, more than 1.6 million measurements
Sensor Silicon Photoelectric Diode Array
Data Storage 100 Standards, 20000 Samples
Data Port USB
Standard Accessory AC Adapter, Li-ion Battery, Operation Manual, Software CD, USB Cable, White Calibration Cover, Φ8mm and Φ4mm Measuring Aperture
Optional Accessory Mini-printer, Powder Test Box

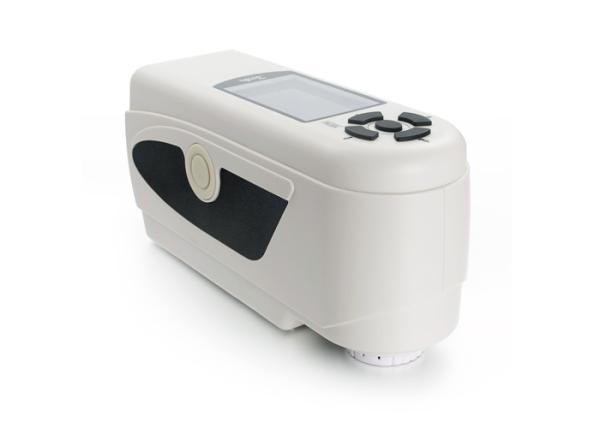

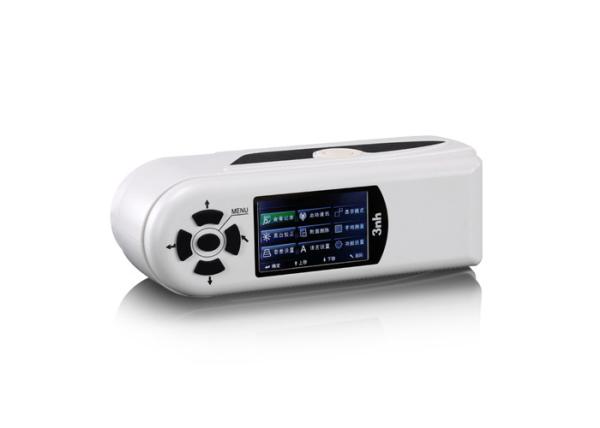

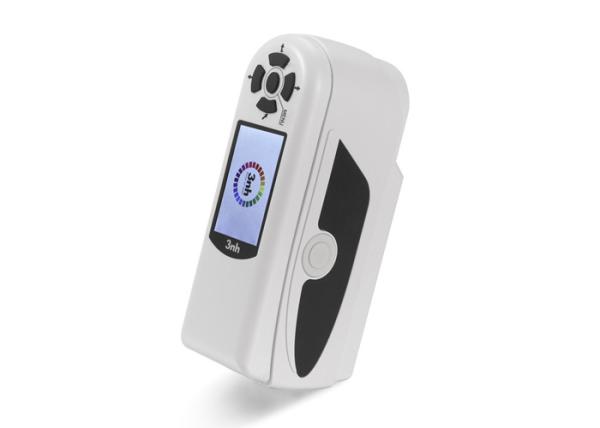

Product Images

Φ8mm Measuring Aperture Integrating Colorimeter NR200 to Develop Multifaceted Colors in Duochrome Cosmetics

Φ8mm Measuring Aperture Integrating Colorimeter NR200 to Develop Multifaceted Colors in Duochrome Cosmetics

Φ8mm Measuring Aperture Integrating Colorimeter NR200 to Develop Multifaceted Colors in Duochrome Cosmetics

Application

Φ8mm Measuring Aperture Integrating Colorimeter NR200 is widely used in Duochrome Cosmetics,Textiles, printing and dyeing, plastic, paint, ink, printing, paint, spray, chemical, ceramics, shoes, leather, hardware, furniture, electrical appliances, packaging, and other industries and color management.

FAQ

1: Q: Is your company accept customization?
A: We accept OEM/ ODM. Any color and any logo is welcome if placed at least 10pcs.

2: Q:Does your products have warranty?
A: YES, We offer 1 year warranty. Our policy: Is there any quality problem, First, send the defective machine to us and you bear the freight. Second, we send back to you free after fixed.

3: Q: After an order placed, when to deliver?
A: It depends on whether we are in stock or not. If we are, generally we can arrange shipment in 1 days after payment. If not, it will be decided by factory production.

4: Q: How to place an order?
A: a: send us an inquiry.
b: confirm your wanted products
c: confirm the price and freight and other details
d: finish the payment
e: we arrange the shipment
f: you got your products
