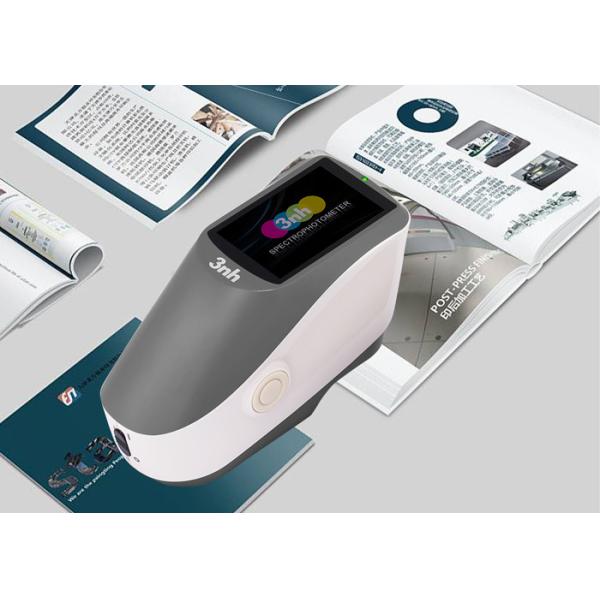

45/0 Microblading Inks Spectrophotometer YD5010 Printing and Packaging Companies Color Matching Machine
45/0 Microblading Inks Spectrophotometer YD5010 Printing and Packaging Companies Color Matching Machine
45/0 Microblading Inks Spectrophotometer YD5010 Printing and Packaging Companies Color Matching Machine
45/0 Microblading Inks Spectrophotometer YD5010 Printing and Packaging Companies Color Matching Machine
45/0 Microblading Inks Spectrophotometer YD5010 Printing and Packaging Companies Color Matching Machine
45/0 Microblading Inks Spectrophotometer YD5010 Printing and Packaging Companies Color Matching Machine
45/0 Microblading Inks Spectrophotometer YD5010 Printing and Packaging Companies Color Matching Machine
45/0 Microblading Inks Spectrophotometer YD5010 Printing and Packaging Companies Color Matching Machine
Specifications
Brand Name :
3nh
Model Number :
YD5010
Certification :
CE / FCC/ ROHS / TUV / ISO9001:2015
Place of Origin :
China
MOQ :
1pcs
Price :
Negotiable
Payment Terms :
T/T, Paypal, Western Union
Supply Ability :
5000pcs per month
Delivery Time :
1 working day
Packaging Details :
Packed in Alumimum box firstly, and then reinforced with carton box for outer packing
Illumination/Observation system :
45/0(45 ring-shaped illumination, 0 degree viewing angle); ISO 5-4,CIE No.15
Measuring Aperture :
Customized one aperture：Φ2mm,Φ4mm,Φ8mm optional
Inter-instrument Error :
Within ΔE*ab 0.2 (Average for 12 BCRA Series II color tiles) Except M3
Repeatability :
Density: Within 0.01 D
Density Standards :
ISO Status A, E, I, T
Observer Angle :
2°/10°
Description

45/0 Microblading Inks Spectrophotometer YD5010 Printing and Packaging Companies Color Matching Machine

Product Introduction

3nh launched new model 45/0 Microblading Inks Spectrophotometer YD5010 Printing and Packaging Companies Color Matching Machine with 45/0(45 ring-shaped illumination, 0 degree viewing angle), comply to standard ISO 5-4,CIE No.15. It is suitable for using in ink printing, in Film Processing, Textile Printing and Dyeing, Plastic Electronics and Other Industries for Color Measurement and Quality Control;especially suitable for the measurement and quality control of optical density and dot enlargement in ink printing; and it is able to customize single aperture Φ2mm,Φ4mm,Φ8mm.

Under the 45/0 geometric optical illumination and the testing conditions of M0, M1,M2 , M3 stipulated by ISO 13655 standard, the instrument can accurately measure the reflectance data of samples. Under multiple color spaces, it can accurately measure various printing density indexes, color difference formulas and color indexes, and can meet the user's regular testing of various parameters.

45/0 Microblading Inks Spectrophotometer YD5010 Printing and Packaging Companies Color Matching Machine is the industry benchmark for measuring color in print and packaging.From densitometers to highly advanced spectrophotometers, for use with paper, film or other substrates, the 45/0 Microblading Inks Spectrophotometer YD5010 Printing and Packaging Companies Color Matching Machine is one of the most accurate and consistent color measurement instruments on the market. With easy-to-use features, everyone in your organization will be able to access the color data they need quickly and easily.

Product Features

  • 1.Perfect combination of the beautiful appearance and the ergonomic structure design;
  • 2.Combined LED light sources with long life and low power consumption, including UV light;
  • 3.Switchable apertures: Φ2/4/8mm, adapt to more samples;
  • 4.Accurately measure reflectance spectrum, CMYK density and Lab value of the sample;
  • 5.High-configuration electronic hardware: 3.5-inch TFT true-color screen, capacitive touch screen, concave grating, 256-pixel dual-array CMOS image sensor, etc.；
  • 6.Two standard observer angles: 2/10, multiple light source modes and color systems;
  • 7.USB mode is widely used;
  • 8.Large-capacity storage space, over 10,000 test data;
  • 9.Especially suitable for process control and quality control of printing plants;
  • 10.PC software has powerful function expansion.

Technical Details

Model YD5010
Measurement Geometry 45/0(45 ring-shaped illumination, 0 degree viewing angle); ISO 5-4,CIE No.15
Features Common spectrophotometer densitometer, apply in Raw Beeswax for Color Consistency, ink printing, in Film Processing, Textile Printing and Dyeing, Plastic Electronics and Other Industries for Color Measurement and Quality Control;especially suitable for the measurement and quality control of optical density and dot enlargement in ink printing;able to customize single aperture Φ2mm,Φ4mm,Φ8mm.
Light Source Combined LED Light, UV Light
Spectral separation device Concave Grating
Detector 256 Image Element Double Array CMOS Image Sensor
Wavelength Range 400~700nm
Wavelength Pitch 10nm
Half Bandwidth 10nm
Measurement Conditions Compliance with ISO 13655 measurement conditions;
M0 (CIE Light Soure A)
M1 (CIE Light Soure D50)
M2 (Excluding UV light source)
M3 (M2+Polarized light filter)
Density Standards ISO Status A, E, I, T
Density index Density value, density difference, dot area, dot enlargement, overprint, printing characteristics, printing contrast, tone error and gray level
Measurement aperture Customized one aperture:Φ2mm,Φ4mm,Φ8mm optional
Color Spaces CIE LAB,XYZ,Yxy,LCh
Color Difference Formula ΔE*ab,ΔE*94,ΔE*00
Other Colorimetric Index /
Observer Angle 2°/10°
Illuminants A,C,D50,D55,D65,D75,F2,F7,F11,F12
Measurement Time About 1.5s
Repeatability Density: Within 0.01 D
Chromaticity value:within ΔE*ab 0.04 ( When a white calibration plate is measured 30 times at 5 second intervals after white calibration) Except M3
Inter-instrument Error Within ΔE*ab 0.2 (Average for 12 BCRA Series II color tiles) Except M3
Measurement mode Single Measurement, Average Measurement(2-99)
Size(L*W*H) 184*77*105mm
Weight About 600g
Power source Li-ion battery. 5000 measurements within 8 hours
Illuminant Life Span 5 years, more than 3 million times measurements
Display 3.5-inch TFT color LCD, Capacitive Touch Screen
Interface USB,
Data memory 10000 pcs
Language Simplified Chinese, English, Traditional Chinese
Working Environment Temperature: 0~40℃; Humidity: 0~85% (No Condensation);altitude: less than 2000 m
Storage Environment Temperature: -20~50℃; Humidity: 0~85% (No Condensation))
Standard Accessory Power Adapter, USB Cable, Built-in li-ion battery, User Manual, software(download from the website),White and Black Calibration Board, Protective Cover,Polarization filter box,Locating Plate
Optional Accessory Micro Printer
Notes: The specifications are subject to change without notice.

Product Images

45/0 Microblading Inks Spectrophotometer YD5010 Printing and Packaging Companies Color Matching Machine

45/0 Microblading Inks Spectrophotometer YD5010 Printing and Packaging Companies Color Matching Machine

45/0 Microblading Inks Spectrophotometer YD5010 Printing and Packaging Companies Color Matching Machine

Applicable Industries

45/0 Microblading Inks Spectrophotometer YD5010 Printing and Packaging Companies Color Matching Machine is widely used in ink printing, in Film Processing, Textile Printing and Dyeing, Plastic Electronics and Other Industries for Color Measurement and Quality Control; especially suitable for the measurement and quality control of optical density and dot enlargement in ink printing.

Densitometer


A densitometer is a device that measures the degree of darkness (the optical density) of a photographic or semitransparent material or of a reflecting surface.The densitometer is basically a light source aimed at a photoelectric cell.It determines the density of a sample placed between the light source and the photoelectric cell from differences in the readings.Modern densitometers have the same components, but also have electronic integrated circuitry for better reading.
