3nh Domestic Non-Contact Spectrophotometer YL4520 Food Pills Particle Color Difference Meter Paste Color Meter
3nh Domestic Non-Contact Spectrophotometer YL4520 Food Pills Particle Color Difference Meter Paste Color Meter
3nh Domestic Non-Contact Spectrophotometer YL4520 Food Pills Particle Color Difference Meter Paste Color Meter
3nh Domestic Non-Contact Spectrophotometer YL4520 Food Pills Particle Color Difference Meter Paste Color Meter
3nh Domestic Non-Contact Spectrophotometer YL4520 Food Pills Particle Color Difference Meter Paste Color Meter
3nh Domestic Non-Contact Spectrophotometer YL4520 Food Pills Particle Color Difference Meter Paste Color Meter
3nh Domestic Non-Contact Spectrophotometer YL4520 Food Pills Particle Color Difference Meter Paste Color Meter
3nh Domestic Non-Contact Spectrophotometer YL4520 Food Pills Particle Color Difference Meter Paste Color Meter
Specifications
Brand Name :
3nh
Model Number :
YL4520
Certification :
CE / FCC/ ROHS / TUV / ISO9001:2015
Place of Origin :
China
MOQ :
1pcs
Price :
Negotiable
Payment Terms :
T/T, Paypal, Western Union
Supply Ability :
1000pcs per month
Delivery Time :
3 working days
Packaging Details :
Packed in carton box
Illumination system :
45/0 method
Light Source :
Full spectrum LED light
Non-contact distance :
7.5mm
Sample height :
0~150mm
Distance adjustment method :
Manual adjustment (test height can be stored)
Inter-instrument Error :
Within ΔE*ab 0.25
Description

3nh Domestic Non-Contact Spectrophotometer YL4520 Food Pills Particle Color Difference Meter Paste Color Meter


Brief Introduction

3nh Domestic Non-Contact Spectrophotometer Food Pills Particle Color Difference Meter Paste Color Meter YL4520 is a benchtop grating spectrophotometer which is developed by 3nh independently with independent Itellctuall property. YL4520 has many features, like 7 Inches TFT capacitive touch screen display, full illuminants, UV light source, 45/0 optical geometry, which can achieve precise non-contact measurement between the measuring probe and the sample like liquids, sauces, powders, etc. It can be applied for accurate color analysis and transmission in laboratories and R& D industries; it can also be used for accurate color measurement and quality control of automated production lines; it is widely used in cosmetics, fruits and vegetables, food hygiene, plastic electronics, paint and ink, printing, ceramics and other industries.

Product Features

  • According to the actual height of the testing sample, the measuring probe can be moved up and down automatically and the height of the testing sample can be stored.
  • TFT true color 7 inch capacitive touch screen; concave grating.
  • 256 Image Element Double Array CMOS Image Sensor.
  • Wavelength range: 400-700nm, 10nm output.
  • Lighting source: full spectrum LED light and UV light.
  • Multiple measurement modes: Sample mode, QC mode, Continuous Statistical mode are optional to meet more customer needs.
  • Large capacity storage: Sample mode + QC mode: 40,000 Continuous statistics mode: 10,000
  • Built- in camera locating.
  • PC software has powerful expansion function.


Technical Parameters

Model YL4520
Illumination system

45/0 method(45 ring-shaped illumination, vertical viewing);
Comply with the standards of CIE No.15,GB/T 3978,GB 2893,GB/T 18833,ISO7724-1,ASTM E1164,DIN5033 Teil7,GB 2893,GB/T 18833.
Features

45/0 non-contact benchtop spectrophotometer, which can achieve precise non-contact measurement between the measuring probe and the sample

like liquids, sauces, powders, etc. It can be applied for accurate color analysis and transmission in laboratories and R & D industries; it can also be used for

accurate color measurement and quality control of automated production lines; it is widely used in cosmetics, fruits and vegetables, food hygiene, plastic electronics,paint and ink, printing, ceramics and other industries . And it can be used for fluorescent sample measurement.
Light Source Full spectrum LED light
Spectrophotometric Mode Concave Grating
Sensor 256 Image Element Double Array CMOS Image Sensor
Wavelength Range 400~700nm/10nm output
Measured Reflectance Range 0~200%
Measured Reflectance Range Φ20mm
Non-contact distance 7.5mm
Sample height 0~150mm
Distance adjustment method Manual adjustment (test height can be stored)
Measuring mode Sample mode/QC Mode/Continuous statistics mode
Locating Method Camera View Finder Locating
Color Space CIE LAB,XYZ,Yxy,LCh,CIE LUV,HunterLAB
Color Difference Formula ΔE*ab,ΔE*uv,ΔE*94,ΔE*cmc(2:1),ΔE*cmc(1:1),ΔE*00,ΔE(Hunter)
Other Colorimetric Index

WI(ASTM E313,CIE/ISO,AATCC,Hunter),YI(ASTM D1925,ASTM 313),TI(ASTM E313,CIE/ISO),
Metamerism Index MI, Staining Fastness, Color Fastness, Color Strength, Opacity
Observer Angle 2°/10°
Illuminant D65,A,C,D50,D55,D75,F1,F2(CWF),F3,F4,F5,F6,F7(DLF),F8,F9,F10(TPL5),F11(TL84),F12(TL83/U30)
Displayed Data Spectrogram/Values, Samples Chromaticity Values, Color Difference Values/Graph, Chromaticity Graph, Color Simulation, PASS/FAIL Result, Color Offset
Measuring Time About1.5s
Data Storage Capacity Sample mode + QC mode: 30,000,Continuous statistics mode: 10,000


Repeatability

Spectral reflectance: Standard deviation within 0.08%
Chromaticity value: Within ΔE*ab 0.05 (When a white calibration plate is measured 30 times at 5 second intervals after white calibration)
Inter-instrument Error Within ΔE*ab 0.25(Average for 12 BCRA Series II color tiles)
Measurement Mode Single Measurement, Average Measurement(2 ~ 99 times)
Dimension 330*250*370mm
Weight About 10 kg
Power Supply DC 24V, 3A Power Adapter
Illuminant Life Span 5 years, more than 3 million times measurements
Display Screen 7" TFT Capacitive Screen-touch Display
Data Port USB/RS-232
Language Simplified Chinese,Traditional Chinese,English
Working Environment Temperature0~40℃; Humidity: 0~85% (No Condensation); Altitude < 2000m
Storage Environment Temperature-20~50℃; Humidity: 0~85% (No Condensation)
Standard Accessory Power Adapter, User Manual, USB cable, Standard Calibration Board, Black calibration Board
Notes The specifications are subject to change without notice.




Applications


3nh Domestic Non-Contact Spectrophotometer Food Pills Particle Color Difference Meter Paste Color Meter YL4520 is widely used in cosmetics, fruits and vegetables, food hygiene, plastic electronics,paint and ink, printing, ceramics and other industries . And it can be used for fluorescent sample measurement.

3nh Domestic Non-Contact Spectrophotometer YL4520 Food Pills Particle Color Difference Meter Paste Color Meter

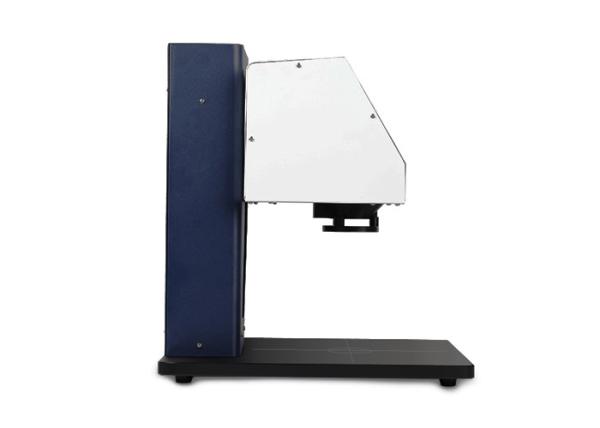

Product Pictures

3nh Domestic Non-Contact Spectrophotometer YL4520 Food Pills Particle Color Difference Meter Paste Color Meter

3nh Domestic Non-Contact Spectrophotometer YL4520 Food Pills Particle Color Difference Meter Paste Color Meter
