Cosmetic Foundation Shades Color Matching Spectrophotometer NS820 D/8° 4mm Aperture Liquid Spectrophotometer
Cosmetic Foundation Shades Color Matching Spectrophotometer NS820 D/8° 4mm Aperture Liquid Spectrophotometer
Cosmetic Foundation Shades Color Matching Spectrophotometer NS820 D/8° 4mm Aperture Liquid Spectrophotometer
Cosmetic Foundation Shades Color Matching Spectrophotometer NS820 D/8° 4mm Aperture Liquid Spectrophotometer
Cosmetic Foundation Shades Color Matching Spectrophotometer NS820 D/8° 4mm Aperture Liquid Spectrophotometer
Cosmetic Foundation Shades Color Matching Spectrophotometer NS820 D/8° 4mm Aperture Liquid Spectrophotometer
Cosmetic Foundation Shades Color Matching Spectrophotometer NS820 D/8° 4mm Aperture Liquid Spectrophotometer
Cosmetic Foundation Shades Color Matching Spectrophotometer NS820 D/8° 4mm Aperture Liquid Spectrophotometer
Specifications
Brand Name :
3nh
Model Number :
NS820
Certification :
CE / FCC/ ROHS / TUV / ISO9001:2015
Place of Origin :
China
MOQ :
1pcs
Price :
Negotiable
Payment Terms :
T/T, Paypal, Western Union
Supply Ability :
5000pcs per month
Delivery Time :
1 working day
Packaging Details :
Packed in Alumimum box firstly, and then reinforced with carton box for outer packing
Color :
White
Measuring Aperture :
Φ4mm
Inter-Instruments Error :
ΔE*ab≤0.2 (Average value of the measurement results of the 12 tint plates of BCRA series Ⅱ)
Wavelength Pitch :
10nm
Color Space :
CIE LAB, XYZ, Yxy, LCh, CIE LUV, LAB & WI & YI
Light Sources Type :
D65, A, C, D50, D55, D75, F1, F2(CWF), F3, F4, F5, F6, F7(DLF), F8, F9, F10(TPL5), F11(TL84), F12(TL83/U30)
Description
Cosmetic Foundation Shades Color Matching Spectrophotometer NS820 D/8° 4mm Aperture Liquid Spectrophotometer
Brief Introduction

3nh Cosmetic Foundation Shades Color Matching Spectrophotometer NS820 D/8° 4mm Aperture Liquid Spectrophotometer is equipped with SQC8 software, which is also comply with CIE No. 15,GB/ 3978. It not only can measure Lab value and deltaE value accurately, but also can display spectral reflectance curve which can realize color matching function and calculate the real parameters of various color formulas.

Product Description

Product Features

1. Elegant appearance combines ergonomic design;
2. D/8°(diffuse uniform illumination 8reception in accordance with standard CIE No. 15, GB/T3978;
3. 3.5" ultra-large touch-screen makes the operation interface quite friendly;

4. 15 oblique angle screen, in line with the human eye observation.
5. Oversized integrating sphere, more effective homogenization ray of lights.

6. Two kinds of standard observer angles, multiple light source, color spaces and color difference formulas, which is fit for all kinds of color measurement requests;

7. Repeatibility delta E*ab within 0.04,inter- instrument error delta E*ab within 0.2, super stable;

8. Large capacity storage, more than 15000 data;

9. PC software with powerful extension functions;

10. High hardware configuration with a number of innovative technologies.

Technical Specification

Model Number NS820
Illuminating/Viewing Geometry D/8° (Diffused illumination, 8 degree viewing angle),
Conform to the Standard CIE No.15, GB/T 3978.
Measuring Aperture Φ4mm
Integrating Sphere Diameter Φ58mm
Repetitive Error Spectral Reflectance: Standard deviation within 0.1%(400~700nm: within 0.2%)
Colorimetric Value: Standard deviation ΔE*ab≤0.04 (Measurement Conditions: white calibration plate measured 30 times at 5 seconds intervals after white calibration performed.)
Inter-Instruments Error ΔE*ab≤0.2 (Average value of the measurement results of the 12 tint plates of BCRA series Ⅱ)
Wavelength Range 400~700nm
Wavelength Pitch 10nm
Reflectance Range 0~200%
Color Space CIE LAB, XYZ, Yxy, LCh, CIE LUV, LAB & WI & YI
Color Difference Formula ΔE*ab, ΔE*uv, ΔE*94, ΔE*cmc(2:1), ΔE*cmc(1:1), ΔE*cmc(l:c), CIE2000ΔE*00, ΔE(h)
Display Data Spectral Value/Graph, Colorimetric Value, Color Difference Value/Graph, PASS/FAIL Result, Color Offset, Color Simulation, Color Index Setting(ΔE*94, ΔE*cmc, ΔE2000), Tolerance Prompt, Reverse Prompt
Other Chromaticity Data WI(ASTM E313, CIE/ISO, AATCC, Hunter),
YI(ASTM D1925, ASTM 313),
TI(ASTM E313, CIE/ISO),
Metamerism Index (Mt),
Color Strength, Color Stain, Color Fastness
Observer Angle 2°/10°
Light Sources Type D65, A, C, D50, D55, D75, F1, F2(CWF), F3, F4, F5, F6, F7(DLF), F8, F9, F10(TPL5), F11(TL84), F12(TL83/U30)
Light Source Device Combined LED Light
Light Source Life 5 years, More than 1.6 million measurements
Sensor Silicon Photoelectric Diode Array
Measuring Time 1.5s
Data Storage 1000 Standards, 15000 Samples
Data Port USB&RS232
Display Size TFT 3.5"
Touch-Screen Yes
Operating Temperature 0~40℃(32~104℉)
Storage Temperature -20~50℃(-4~122℉)
PC Software SQC8
Weight 600g
Dimension 90*77*230mm
Battery Large Capacity Li-ion Battery
Standard Accessory Power Adapter, Li-ion Battery, Operating Instruction, CD-ROM(containing color management software), Data Cable, White and Black Calibration Cavity, Protective Cover and Wrist Strap.
Optional Accessory Universal Test Components, Micro Printer, Powder Test Box
Certificates CE & RoHS & TUV & FCC & ISO9001

Product Application

Nowadays, color management instruments, like spectrophotometers, colorimeters, have been widely applied to industries like coating, plastic, ink, textile, food, printing, packaging, paper, medicine, automobile, medical, metal, cosmetics, ceramics, paint, marble, aluminum, leather, hardware, wood products, building decoration materials, coating cloth, other non-metallic materials, plating, automotive interior parts, toys, printing and dyeing, pigments, chemicals, footwear, scientific research institutions, laboratories, etc.

Cosmetic Foundation Shades Color Matching Spectrophotometer NS820 D/8° 4mm Aperture Liquid Spectrophotometer

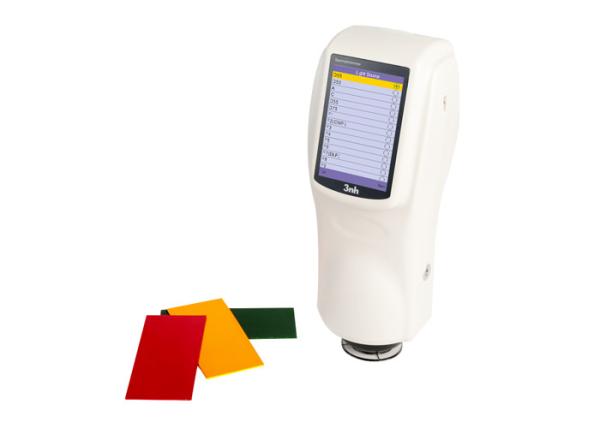

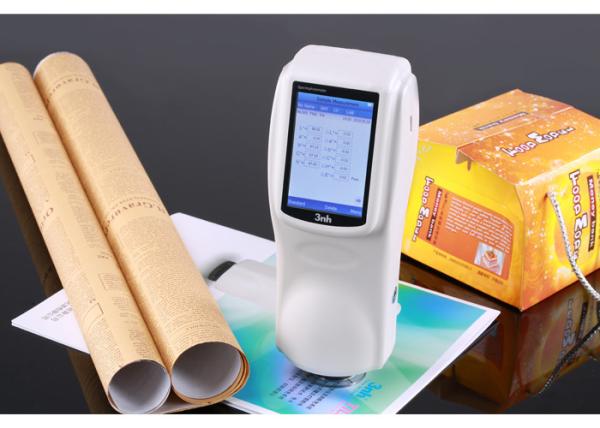

Product Images

Cosmetic Foundation Shades Color Matching Spectrophotometer NS820 D/8° 4mm Aperture Liquid Spectrophotometer

Cosmetic Foundation Shades Color Matching Spectrophotometer NS820 D/8° 4mm Aperture Liquid Spectrophotometer

Cosmetic Foundation Shades Color Matching Spectrophotometer NS820 D/8° 4mm Aperture Liquid Spectrophotometer

Packing & Delivery
Packaging
Size
47(L)*27(W)*38(D)
Weight
10 KG
Packaging Details
The normal package is box packing.
