A gloss meter is a tester for determining surface gloss. With the gloss meter, spectral reflections of a light beam that hits the surface, are measured.

The gloss meter is applied especially in areas where it is important that the surfaces have the same structure, and have the same surface characteristics. This often happens in quality control. The gloss meter is a measuring instrument which can be used in many different industries.

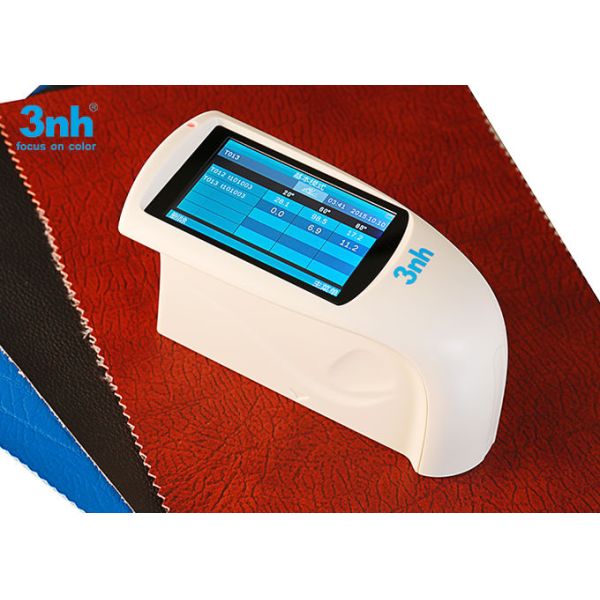

A special evaluation software comes with the gloss meter 3NH-HG268. So the measured data can be stored on the device first and transferred to a computer later. The software of the gloss meter also has an analysis function that serves for precise evaluation.

Highlights

- 20°, 60° and 85° in one: from high to low gloss - have the specified angle on hand

- One button for all angles measurement at the same location
- 3.5" TFT Panel, user friendly

- Built-in Li-ion rechargeable battery
- Internal data memory, up to save 1000 data
- Calibration plate supplied
- Fast measurement time

- With evaluation software

Applicication

3NH-NHG268 is widely used in the industrie which are sensitive to the surface such as Paint,Paper,ink,Plastic,film,Bamboo,flooring,Stainless steel,Aluminum oxidation,Stone,Ceramic tile,Leatherwear...

Specifications

Delivery Scope

1 x Glossmeter 3NH-HG268
1 x QC software
1 x Charging adapter
1 x USB cable
1 x Calibration plate
1 x Instruction manua

Delivery Time

1-2 working days after payment received.

Shipping Info.
Carton Meas: 29*19*10CM
Gross Weight:1KG

Warranty

We warrant to you that any Product purchased from us will, on delivery and for the following 1 year, conform in all material respects with its description, be of satisfactory quality, and be reasonably fit for all the purposes for which products of that kind are commonly supplied.

Optional Accessories

Micro-printer / Ref. No.: 3NH-SP-A-01

More Pics

How To Measure the Gloss?

Gloss is measured by shining a known amount of light at a surface and quantifying the reflectance. The angle of the light and the method by which the reflectance is measured are determined by the surface.

Gloss is measured using a Gloss Meter also known as a Glossmeter) which directs a light at a specific angle to the test surface and simultaneously measures the amount of reflection. The type of surface to be measured determines the gloss meter angle to be used and thus the gloss meter model.

The intensity is dependent on the material and the angle of illumination. In case of nonmetals (coatings, plastics) the amount of reflected light increases with the increase of the illumination angle. The remaining illuminated light penetrates the material and is absorbed or diffusely scattered dependent on the color.

Metals

Metals have a much higher reflection and are less angle dependent than non metals. The measurement results of a glossmeter are related to the amount of reflected light from a black glass standard with a defined refractive index, and not to the amount of incident light. The measurement value for this defined standard is equal to 100 gloss units. Materials with a higher refractive index can have a measurement value above 100 gloss units (GU), e.g. films.

To learn how to choose a glossmeter, please click here!
