Handheld Paint Spectrophotometer Equipment YS3060 Touch Screen Easy To Use 3NH
Handheld Paint Spectrophotometer Equipment YS3060 Touch Screen Easy To Use 3NH
Handheld Paint Spectrophotometer Equipment YS3060 Touch Screen Easy To Use 3NH
Handheld Paint Spectrophotometer Equipment YS3060 Touch Screen Easy To Use 3NH
Handheld Paint Spectrophotometer Equipment YS3060 Touch Screen Easy To Use 3NH
Handheld Paint Spectrophotometer Equipment YS3060 Touch Screen Easy To Use 3NH
Specifications
Brand Name :
3nh
Model Number :
YS3060
Certification :
CE / ROHS / TUV / ISO9001:2015
Place of Origin :
P.R.China
MOQ :
1pc
Price :
Negotiable
Payment Terms :
T/T, L/C, Paypal, L/C, D/A, Western Union
Supply Ability :
1000pcs per month
Delivery Time :
3 working days
Packaging Details :
Aluminium box in carton box
Color Space :
CIE Lab, XYZ, Yxy, LCh, CIE LUV, Hunter LAB
Specular Component :
SCI&SCE
Light sources :
D65, A, C, D50, D55, D75, F1, F2, F3, F4, F5, F6, F7, F8, F9, F10, F11, F12
Observer :
2° / 10°
Wavelength :
380 - 700nm
Wavelength interval :
10nm
Description

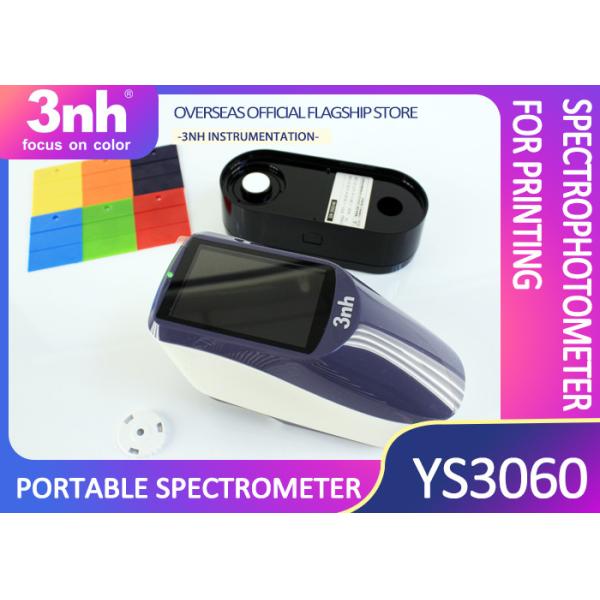

3NH Handheld Color Spectrophotometer YS3060 with Touch Screen Easy to Use, Carry to Everywhere

YS3060 SCE SCI hunter lab spectrophotometer device with software

Color Matching Spectrophotometer

Comply with CIE No.15,GB/T 3978,GB 2893,GB/T 18833,ISO7724/1,ASTM E1164,DIN5033 Teil7, YS3060 grating spectrophotometer features UV, SCI/SCE, USB / bluetooth, 8mm / 4mm switch aperture, etc. It has high accuracy 0.03 based on white calibration plate measured 30 times at 5 seconds intervals.

Model Items YS3060
Optical Geometry Reflect: di:8°, de:8°(diffused illumination, 8-degree viewing angle)
Integrating Sphere Size 48mm
Light Source Combined LED Light, UV Light
Spectrophotometric Mode Concave Grating
Sensor 256 Image Element Double Array CMOS Image Sensor
Wavelength Range 400-700nm
Wavelength Interval 10nm
Semiband Width 10nm
Measured Reflectance Range 0-200%
Measuring Aperture Dual Aperture: 10mm/8mm & 5mm/4mm
Specular Component SCI&SCE
Color Space CIE Lab, XYZ, Yxy, LCh, CIE LUV, Hunter LAB
Color Difference Formula ΔE*ab, ΔE*uv, ΔE*94, ΔE*cmc(2:1), ΔE*cmc(1:1), ΔE*00v, ΔE(Hunter)
Other Colorimetric Index

WI(ASTM E313, CIE/ISO, AATCC, Hunter),
YI(ASTM D1925, ASTM 313),TI(ASTM E313, CIE/ISO),
Metamerism Index MI, Staining Fastness, Color Fastness, Color Strength, Opacity, 8° Glossiness
Observer Angle 2°/10°
Illuminant D65, A, C, D50, D55, D75, F1, F2, F3, F4, F5, F6, F7, F8, F9, F10, F11, F12
Displayed Data Spectrogram/Values, Samples Chromaticity Values, Color Difference Values/Graph, PASS/FAIL Result, Color Offset
Measuring Time 2.6s
Repeatability MAV/SCI: ΔE*≤0.03
Inter-instrument Error MAV/SCI: ΔE*≤0.15
Measurement Mode Single Measurement, Average Measurement
Locating Method Camera View Finder Locating
Battery Li-ion battery. 5000 measurements within 8 hours
Dimension L*W*H=184*77*105mm
Weight 600g
Illuminant Life Span 5 years, more than 3 million times measurements
Display 3.5-inch TFT color LCD, Capacitive Touch Screen
Data Port USB, Bluetooth 4.0
Data Storage Standard 2000 Pcs, Sample 20000 Pcs
Language English, Chinese
Operating Environment 0~40℃, 0~85%RH (no condensing), Altitude < 2000m
Storage Environment -20~50℃, 0~85%RH (no condensing)
Standard Accessory Power Adapter, Built-In Li-ion Battery, User Guide, PC Software, White and Black Calibration Cavity, Dust Cover
Optional Accessory Micro Printer, Powder Test Box
Notes: The specifications are subject to change without notice.



Application Industry
Grating spectrophotometer can easily achieve color transferring , and be used as a precision instrument for color matching system. It's widely used in plastics, electronics, painting, ink, textile and garment, printing and dyeing, printing paper, automotive, medical, cosmetics and food industries, scientific research institutes, schools and laboratories.
Warranty


All color spectrophotometer and colorimeters have one year warranty from the purchase date. If it has something wrong during warranty, you can send it back to us. The buyer pays for the returning shipping cost and we will pay for the sending shipping cost.
