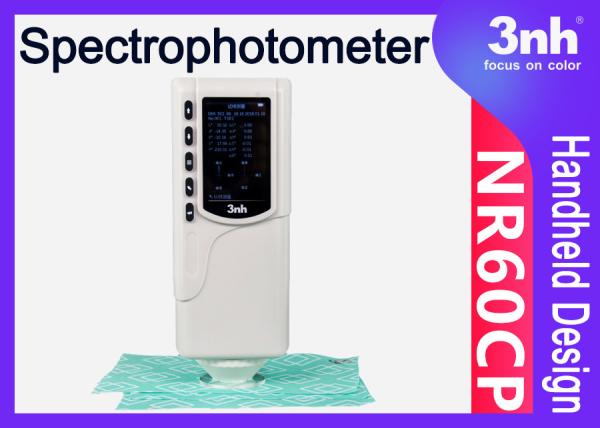

Handheld Paint Matching Spectrophotometer NR60CP Honey / Milk / Hair Lotion Colour Difference Meter
Handheld Paint Matching Spectrophotometer NR60CP Honey / Milk / Hair Lotion Colour Difference Meter
Handheld Paint Matching Spectrophotometer NR60CP Honey / Milk / Hair Lotion Colour Difference Meter
Handheld Paint Matching Spectrophotometer NR60CP Honey / Milk / Hair Lotion Colour Difference Meter
Handheld Paint Matching Spectrophotometer NR60CP Honey / Milk / Hair Lotion Colour Difference Meter
Handheld Paint Matching Spectrophotometer NR60CP Honey / Milk / Hair Lotion Colour Difference Meter
Handheld Paint Matching Spectrophotometer NR60CP Honey / Milk / Hair Lotion Colour Difference Meter
Handheld Paint Matching Spectrophotometer NR60CP Honey / Milk / Hair Lotion Colour Difference Meter
Specifications
Brand Name :
3nh
Model Number :
NR60CP
Certification :
CE / ROHS / TUV / ISO9001:2015
Place of Origin :
P.R.China
MOQ :
1pcs
Price :
Negotiable
Payment Terms :
T/T, Paypal,, Western Union
Supply Ability :
5000pcs per month
Delivery Time :
1 working day
Packaging Details :
Packed in Alumimum box firstly, and then reinforced with carton box for outer packing
Illuminating/Viewing Geometry :
8° / d; CI E No. 15,GB/ T 3978
Sensor :
Silicon photodiode array
Battery :
rechargeable lithium-ion battery 3. 7V @ 3200mAh
Measuring Aperture :
Φ8mm large area end-face; Φ4mm small area concave-convex end-face
Color Space :
CI E L AB,XYZ,LCh,CI E RGB,CI E LUV
Interface :
USB/RS-232
Lamp Life :
5 years, more than 1.6 million measurements
Description

Canada hand-held Paint Matching Spectrophotometer NR60CP honey, milk, hair lotion colour difference meter

Color measurement devices are used to capture, communicate, and evaluate color. From cardboard packaging to food, laundry soap, carpeting and small plastic parts, color measurement devices help ensure the color being produced matches the color that was originally specified. They’re used behind the scenes in just about every industry where color is important, including plastics, textiles, paints, coatings, print and packaging.

Brief Description


NR60CP hand-held Paint Matching Spectrophotometer is developed by 3nh independently with independent intellectual property. It has the advantages of high accuracy, powerful function and precise measurement which are warmly welcomed by customers.

Advantages of hand-held Paint Matching Spectrophotometer NR60CP

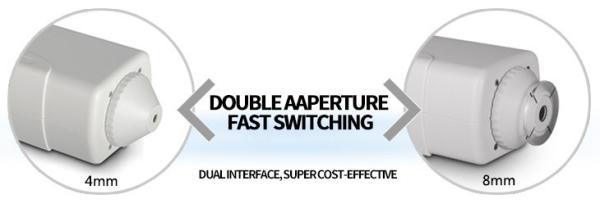

1. Switchable 8mm and 4mm measuring apertures, easy to measure concave surface.
2. Higher measurement stability and accuracy, Delta E ab<0.03.
3. More color spaces, various color indexes, extensive applicability.
4. Double locating: illuminating locating and cross locating
5. Configured with high-capacity rechargeable Li-ion battery
6. Built-in white plate parameters and physical white calibration board, easy to operate;
7. New integrating sphere optical path design, more stable measurement;
8. Measurement data can pass national metrology authentication.

Applicable Industries

hand-held Paint Matching Spectrophotometer NR60CP can easily achieve color transferring , and be used as a precision instrument for color matching system. It's widely used in honey, milk, hair lotion, plastics, electronics, painting, ink, textile and garment, printing and dyeing, printing paper, automotive, medical, cosmetics and food industries, scientific research institutes, schools and laboratories.

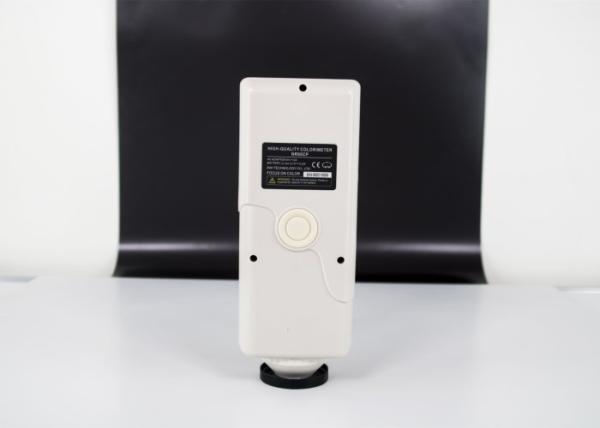

More pictures

Handheld Paint Matching Spectrophotometer NR60CP Honey / Milk / Hair Lotion Colour Difference Meter

Handheld Paint Matching Spectrophotometer NR60CP Honey / Milk / Hair Lotion Colour Difference Meter

Handheld Paint Matching Spectrophotometer NR60CP Honey / Milk / Hair Lotion Colour Difference Meter

Specifications

Model NR60CP
Illuminating/Viewing Geometry 8° / d; CI E No. 15,GB/ T 3978
Light Source LED sources
Sensor Silicon photodiode array
Measuring Aperture Φ8mm large area end-face; Φ4mm small area concave-convex end-face
Color Space CI E L AB,XYZ,LCh,CI E RGB,CI E LUV
Other Chromaticity Data WI ( E313,CI E, AATCC,Hunt er ),YI ( D1925, 313),Color Fastness, Staining Fastness, J PC79,BFD( 1. 5: 1),FMCI I
Observer CI E 10°
Illuminant D65,A,C,D50,F2,F6,F7,F8,F10,F11,F12
Display Data Colorimetric Value, Color Difference Value/Graph, PASS/FAIL Result, Color Offset,
Measurement Time 0. 4s
Repeatability ΔE* ab 0. 03(Average of 30 measurement of standard white plate within 5s)
Errors between each instrument within Delta E*ab 0.2
Dimension (L*W*H)205*67*80mm
Weight 500g
Battery rechargeable lithium-ion battery 3. 7V @ 3200mAh
Lamp Life 5 years, more than 1.6 million measurements
Display Screen TFT 2.8 inch(16: 9)
Interface USB/RS-232
Data Memory 100 Standards, 20000 Samples
Operating Temperature 0~40℃(32~104°F)
Storage temperature -20~50℃(-4~122°F)
Optional Accessory miniature thermal printer, powder test box

Packaging & Shipping
Packing Material : Alumimum box with carton box
Packing Size 45*23*38CM
Packing Weight:3KG
Delivery time: Within 3 working days after payment received.
