Specifications
Brand Name :
3NH
Model Number :
NR200
Certification :
CE / ROHS / TUV / FCC / ISO9001:2015
Place of Origin :
China
MOQ :
1pcs
Price :
Negotiable
Payment Terms :
T/T, Paypal, Western Union, L/C, D/A, D/P, D/P
Supply Ability :
5000pcs per month
Delivery Time :
1 working day
Packaging Details :
Packed with carton box
Display :
TFT 2.8 inch
Locating :
Illumincation
Measurement aperture :
Φ8mm
Illumination/Viewing geometry :
8°/D (8° illumination, diffuse Viewing)
Color Space :
CIE L*a*b*C*h, CIE L*a*b, CIE XYZ
Light source :
D65
Description

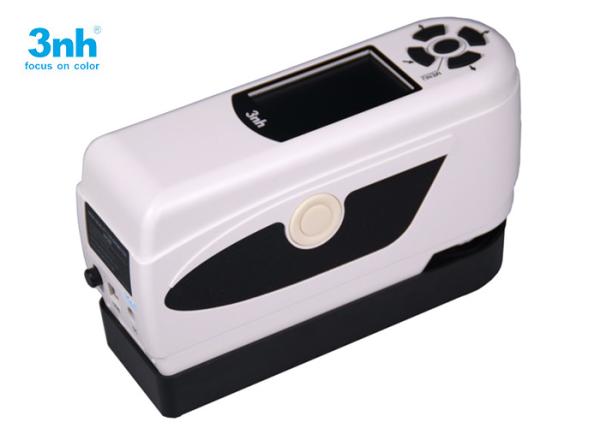

3NH-NR200 Portable Colorimeter High Accuracy Good Stability Cost Effective

Li-ion battery / PC software included / different color spaces
determination of reference values and samples / white calibration / easy to use

The color meter 3NH-NR200 was developed for quality control and offers a very high accuracy. When using the color meter, you can choose between different color spaces (CIE L*a*b CIE L*C*H, CIE XYZ). After a measurement with the color meter, the reading can be used as a reference value while other readings can be recorded as a sample and later be compared to the reference value easily.

In addition to the individual color space coordinates, the deviation between the reading is also displayed. When using the color meter, it is possible to store up to 100 reference values and up to 20,000 samples on the device. The measured data can also be transferred to a PC via the USB interface. A special PC software is included in the package.

Highlights

- rechargeable high capacity Li-ion battery
- Ergonomical design, easy to use
- CIE L*C*h, CIE L*a*b & CIE XYZ
- white calibration
- high accuracy, △E*ab < 0.08
- measuring aperture is 8 mm

Applications

Colorimeter can easily implement accurate color transmission, also usded for manufacturing quality control, product research and development in Painting, lacquer, ink, coating, leather, paper, printing, plastics, electronics, furnitures, wood, decorating, ceramics, tiles, metals, hardware, marble, electroplating, package, food, cosmetics, pharmacy, cloth, garments, textiles and traffic signage, etc.


Specification

Illuminating/Viewing Geometry 8°/D (8° illumination, diffuse Viewing),
Observer CIE 10° Standard Observer
Measuring Aperture Φ8mm
Repetitive Error Standard Deviation within ΔE*ab=0.08
(Calculating Method: Average value of the results of 30 measurements of the standard white plate)
Inter-Instrument Error Within ΔE*ab=0.5
Color Space CIE L*C*h, CIE L*a*b, CIE XYZ
Color Difference Formula ΔE*ab, ΔL*a*b*, ΔE*C*h*
Measurement Time 1.5s
Measuring Range L: 0-100
Light Source Type D65
Light Source Device LED Blue Light Excitation
Light Source Life 5 years, more than 1.6 million measurements
Sensor Silicon Photoelectric Diode Array
Data Storage 100 Standards, 20000 Samples
Data Port USB
Standard Accessories AC Adapter, Li-ion Battery, Operation Manual, Software CD, USB Cable, White Calibration Cover, Φ8mm Measuring Aperture, Cleaning cloth
Optional Accessories Universal Test Set, Powder Test Box,Mini-printer

Delivery Scope

1 x Colorimeter 3NH-NR200

1 x Charging adapter
1 x Li-Ion battery (installed)
1 x Calibration standard (white)
1 x Dust cover
1 x USB cable
1 x Cleaning cloth
1 x User manual


Delivery Time

1-2 days after payment received.


Warranty

We warrant to you that any Product purchased from us will, on delivery and for the following 1 - 2 years (depending on the Product purchased), conform in all material respects with its description, be of satisfactory quality, and be reasonably fit for all the purposes for which products of that kind are commonly supplied.


Optional Accessories

3NH-NR200 Portable Colorimeter High Accuracy D65 Light Source Good Stability

Universal Test Set / Ref. No.: 3NH-NH3-A-02

For testing liquids, powders and other non-solids

Volume is 125 ml or 4.2 ounces / Includes 2 quartz sample boxes

3NH-NR200 Portable Colorimeter High Accuracy D65 Light Source Good Stability

Powder Test Box Ref. No.: 3NH-YS30-A-03

For testing powders Volume is 30 ml or 1.0 ounces Includes 2 quartz sample boxes

3NH-NR200 Portable Colorimeter High Accuracy D65 Light Source Good Stability

Mini-printer / Ref. No.: 3NH-SP-A-01

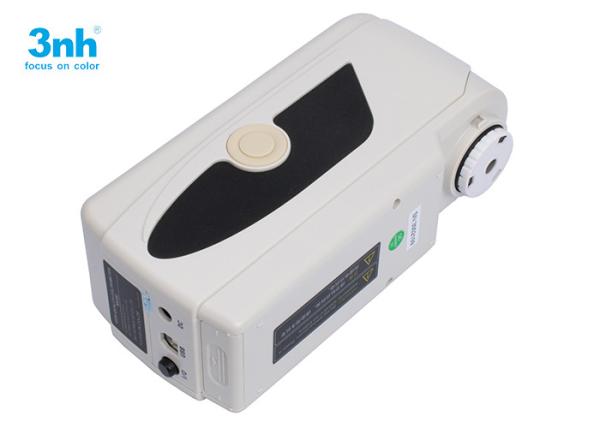

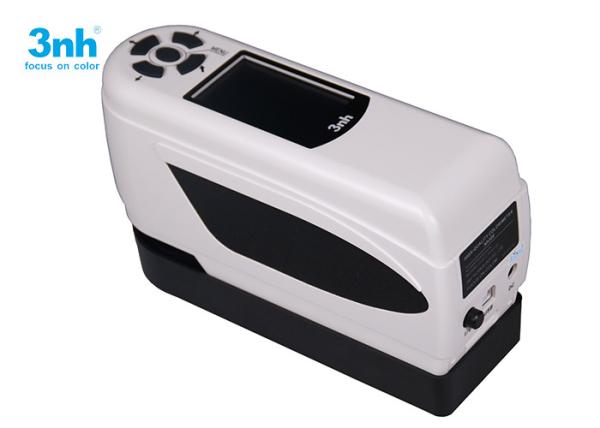

More Pictures

3NH-NR200 Portable Colorimeter High Accuracy D65 Light Source Good Stability

3NH-NR200 Portable Colorimeter High Accuracy D65 Light Source Good Stability

3NH-NR200 Portable Colorimeter High Accuracy D65 Light Source Good Stability

3NH-NR200 Portable Colorimeter High Accuracy D65 Light Source Good Stability

3NH-NR200 Portable Colorimeter High Accuracy D65 Light Source Good Stability

3NH-NR200 Portable Colorimeter High Accuracy D65 Light Source Good Stability

3NH-NR200 Portable Colorimeter High Accuracy D65 Light Source Good Stability

3NH-NR200 Portable Colorimeter High Accuracy D65 Light Source Good Stability
