Outdoor Flag Mimaki Textile Printer Digital Polyester Fabric Printing Machine
Outdoor Flag Mimaki Textile Printer Digital Polyester Fabric Printing Machine
Outdoor Flag Mimaki Textile Printer Digital Polyester Fabric Printing Machine
Outdoor Flag Mimaki Textile Printer Digital Polyester Fabric Printing Machine
Specifications
Brand Name :
SAER
Model Number :
MSR 1633
Certification :
CE Certification
Place of Origin :
Japan
MOQ :
1 Set
Payment Terms :
T/T, Western Union
Supply Ability :
100 sets per month
Delivery Time :
10 working days after receive your payment
Packaging Details :
Non fumigation wooden package
Type :
Direct Digital Textile Printer
Max Resolution :
1440 DPI
Max Materials widthMax Materials Width :
162CM
Ink supply model :
Continuous ink supply,bulk ink system
Print head :
Epson Piezo DX5 head
Include :
Mimaki JV33 Printer and 1.6m sublimation heater with filter Fan
Available Ink :
Sublimation,Reactive and Pigment ink
Print Speed :
15.5sqm/h in 4 pass
Printing Interface :
Connect with computer
Rip Software :
Maintop 5.3 Rip software Or Onyx Optional
Available Media :
Polyester,Cotton,Silk,Linen,wool and so on
Feature :
Print And Heat together
Description

Product name : Digital Polyester Fabric Printing Machine / Mimaki Textile Printer for Outdoor & Indoor Flag

Quick Details:

1. Mimaki JV33-160 Printer

2. 1.8m Sublimation Heater(SR 1800)

3. Filter Fan

Outdoor Flag Mimaki Textile Printer Digital Polyester Fabric Printing Machine

Specification:

- Low cost
- High productivity
- Directly print on textile Fabric,no need any medium.

Print Speed:

Printing resolution and speed Resolution(dpi)

Speed
540x720(6pass)

10.5m2/h
720x720(4pass)

15.5m2/h
720x720(8pass)

7.7m2/h
1440x720(8pass)

5.9m2/h
1440x1440(16pass)

3.0m2/h

Detailed Specification:

Product Name Mimaki Textile Printer

Model

MSR1633
Include Mimaki JV33 With SR 1800 Heater

Print head

Piezo technology ,Epson DX5 printer head

Ink

Sublimation ink,reactive ink and pigment ink

Color mode

Dual KCMY(2C,2M,2Y,2K)

Nozzles

180nozzles x 8lines

Print head higher

1.5mm - 2.5mm(Adjustable)

Ink supply method

Block memed

Max materials width

1625mm

Max printing width

1600mm

Media Core Size available

2 inch /3inch

Maximum weight for roll material

40Kg

Interface

Ethernet 10Base-T

RAM

128M

Printer power

AC100-120V/AC220-240V(Adaptive).50/60Hz±1Hz

Sublimation machine

AC220-240V.16A.50/60Hz±1Hz

Power consumption

Direct dye sublimation heater 3500W

Printer 5000W

Environment

Temperature:20-32°C,Humidity:40-60%
Packages

3150X1000X1180mm

262x75x105mm

Advantages:

SAER textile printer is under independent research and development. The price is 1/3 of that of traditional textile printers. It's of the world's leading piezoelectric sublimation technology.

1. Wider application field

After the modify of pannel board,this solution can convert the Mimaki printer to print images on Fabric directly.improved the application of heat transfer paper printing and wall paper printing.

2. Tension structures keep the printing material flat

Equipped with tension structure on front side and back side, as to keep the printing media flat. Even the artificial loaded media is not in the perfect straight status, this system can automatically correct the skewing in printing process.

3. Efficient heater

work together with the sublimation heater,with high temperature,Textile Printing Ink will be dried instantly before be collected by Automatic Take Up Roller.it can fade the color of printed image,the complated fabric can use to make flag ,banner and for home decoration directly.

4. Printing quality be ensured

The Media Collecting and Feeding System are synchronized so that printing quality be ensured.solve the stepping problem.

5. Bulk ink system

With this CISS, user can not only have similar image quality, but also avoid to use the expensive original inks.

6. Easy installation process

Even users with no experience can operate it within 2 hours.

SR 1800 Heater:

  1. Heat Tube is far infrared blackbody ceramic tube,life is longer,can reach 10000 hours
  2. Have a oil connection slot,so the waste oil won't drop on the fabric.
  3. Speed can reach 20-100m / hour,so one machine can work with 4 printers at the same time.

Application:

On polyester fabric:outside to make beach flag,banner flag etc.

indoor to make curtain,table cloth,wallpaper etc.

On Cotton fabric: to make clothes,bedsheets directly.

On Linen fabric:to make skirts etc.

After Sales Service:

1. Provide 12 months warranty for print boards and motors for our printers and online support

2. When you have some technical problems,please send detail description,photos or video,then our technician will give the resolution accordingly during 24 hours.

3. There are completed English user manuals to guide you easily install ,operate and maintain the printer. It’s clear and easy to understand.

4. Free training is availabe when you need it, you are welcome to our factory to obtain the skills. or we also send engineer to your company to make a training for your people.

with 15 years export experience in the large format printers industry, High quality, safe packing, on-time delivery and good after service are OUR KEY.

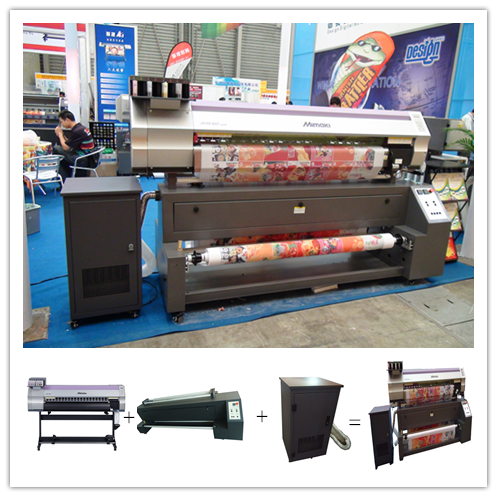

Detail Pictures:

Outdoor Flag Mimaki Textile Printer Digital Polyester Fabric Printing Machine


Printed Samples:

Polyester Cotton Linen
Outdoor Flag Mimaki Textile Printer Digital Polyester Fabric Printing Machine Outdoor Flag Mimaki Textile Printer Digital Polyester Fabric Printing Machine Outdoor Flag Mimaki Textile Printer Digital Polyester Fabric Printing Machine
