Galvanized Metal Steel Stud and Track Profiles Roll Forming Machine Supplier
Galvanized Metal Steel Stud and Track Profiles Roll Forming Machine Supplier
Specifications
Brand Name :
Feixiang
Model Number :
FX-C&U
Certification :
CE ISO
Place of Origin :
Hebei China
MOQ :
1 set
Price :
usd 8000-18000 per set
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
50sets/month
Delivery Time :
45 working days
Packaging Details :
Nude
Name :
Metal Steel Stud and Track Profiles Roll Forming Machine
PLC :
Delta
Speed :
50m/min
Roller :
Cr12
Shaft :
50mm
Transmission :
Gear
Cutter :
Hydraulic
Safety cover :
Available
Description

Galvanized Metal Steel Stud and Track Profiles Roll Forming Machine Supplier

Abstract of the Stud and Track Roll Forming Machine :

Products made by this machine is easy to install, used together with different colors can make it appear dye-in-the-wood individual character. Width of 75, 100, 150, 200, and 300 C-shaped keel can be assembled arbitrarily, and they are connected tightly. They can be fixed on the device which is specially used for keels, they can tear down individually.

Products made by this machine are suitable to use as building decorations, especially suitable to use in bedroom, kitchen, washroom, corridor and so on.

Material for this machine is galvanized steel plate, snowflake plate and colored steel plate

Features of this Stud and Track Making Machine:

lower cost

high efficiency

reliable working

low energy consumption

Components of the Stud and Track Rolling Forming Line:

1. Steel strip supporting frame

2. Feeding platform

3. Automatic shearing system

4. Hydraulic system

5. Steel strip unfolding system

6. Computer control system (imported computer)

7. High-precision automatic counter

8. Receiving table

Optional components of the Stud and Track Roller Former Machine:

·Manual uncoiler frame in different tons

·Hydraulic automatic uncoiler

Working space and workman for the equipment:

1. Ground-level land

2. ≥5T overhead travelling crane

3. Space for storing the material

4. Space for laying the machine

5. Road for vehicle moving

6. Workman: 2, operator and porter

A Technical specification:

Control System PLC Colored Touch Screen
Main Frame 18mm steel welding
Main Power 5.5kw
Power Supply 380V, 3-Phase,50Hz or any
Forming Speed 60m/min
Roll Station 10 stands
Shaft Diameter 42 mm
Feeding Thickness 0.3-0.8mm
Cutter Standard GCr12
Roller Standard 45# Plating Cr

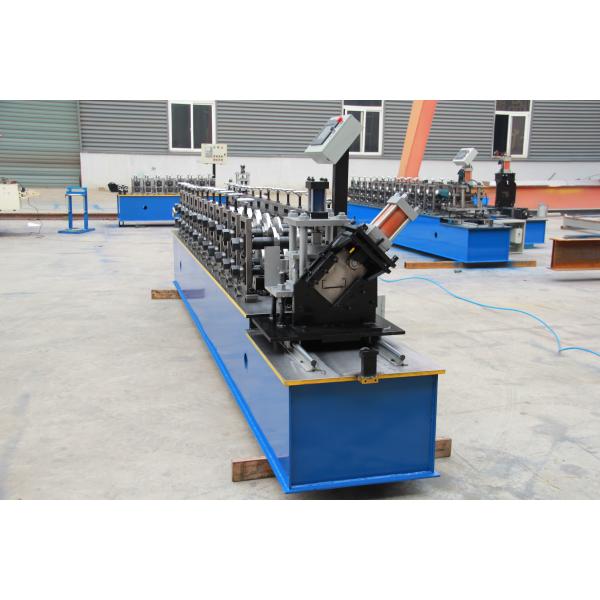

Picture for some parts of the Stud and Track Forming Machine for refernces:

Galvanized Metal Steel Stud and Track Profiles Roll Forming Machine Supplier

Galvanized Metal Steel Stud and Track Profiles Roll Forming Machine Supplier

Galvanized Metal Steel Stud and Track Profiles Roll Forming Machine Supplier
