Full Automatic Double Layer Roll Forming Machine Easy Operate For Roof Panels
Full Automatic Double Layer Roll Forming Machine Easy Operate For Roof Panels
Full Automatic Double Layer Roll Forming Machine Easy Operate For Roof Panels
Full Automatic Double Layer Roll Forming Machine Easy Operate For Roof Panels
Specifications
Brand Name :
Feixiang
Model Number :
Double layer
Certification :
CE / ISO
Place of Origin :
Hebei
MOQ :
1
Price :
Pls check with supplier
Payment Terms :
L/C, T/T
Supply Ability :
30 sets per month
Delivery Time :
40 days
Packaging Details :
Nude
Material :
steel
control :
PLC
power :
5.5kw
name :
Full Automatic Double Layer Roll Forming Machine
Description
Full Automatic Double Layer Roll Forming Machine
Technical parameters:

Technical parameters of Full Automatic Double Layer Roll Forming Machine
1 Cutting&Hydraulic type Double guide pillar
2 Hydraulic motor power 3kw,4kw
3 Hydraulic Pressure 10-12MPa
4 Voltage 380V /3phase/ 50 HZ (or as your requirement)
5 Cutting drive Decelerating motor + Chain drive gear all by high-frequency
6 Control System Panasonic /Siemens / Schneider / Delta PLC
7 Length measurement Encoder
8 Main Frame 300mm/350mm H-Beam or 350mm
9 Backboard Thickness 17mm/200mm
10 Chain Size 1inch/2inch
11 Feeding Material Better as your drawing or from our designer
12 Feeding Thickness 0.18mm-0.8mm
13 Effective width Better as your drawing or from our designer
14 Productivity 12-20/min
15 Roll Station 14rows& 14(according to different design)
16 Roller Diameter 70mm/75mm(depend on different design)
17 Roller material 45# steel
18 Cutter material Cr12 mould steel heat-treated hardness of HRC = 60-62 degrees
19 Total Weight 2t-12t
20 Package of machine Waterproofing membrane, standard export packing
21 Roll fromiomg machine of the Components

Manual decoiler-------------------1 set(5t)

Guiding Platform------------------1 set

Coil Strip Leveler------------------1 set

Main Machine of Roll Forming------1 set

Hydraulic Station------------------1 set

Supporter Table-------------------1 set

Coil Strip Leveler------------------1 set
23 machine technical parameters can be changed, according to customer's need.

Machine description:

Rollers

In order to get high quality product, our machine adopts welded steel frame structure, AC frequency conversion motor reducer drive, chain transmission, roller surfaces polishing, hard plating, heat treatment and chrome coating.

Roller chrome coated thickness: 0.05 mm.

Computer Control Cabinet

It adopts MITSUBISHI PLC to control. The target piece`s length is adjustable and digit of it can be adjusted. Computed mode has two modes: automatic and manual one. The system is easy to operate and use.

Hydraulic Station

It is derived by a Gear Pump. After filling the hydraulic oil into the hydraulic oil tank, the pump could drive the hydraulic cylinder to realize the cutting function.The system includes a set of hydraulic tank, a set of a Gear Pump, two hydraulic pipes .and two sets of Solenoid Valves.

Power of The Pump:4kw

Hydraulic oil :40#

Entry Beach

Put the raw material(steel plate) through the beach to manufacture and process, it can guarantee that the products are neat, parallel and everything is uniformity. Please refer to the equipment regulation to know the function of locate angle iron.

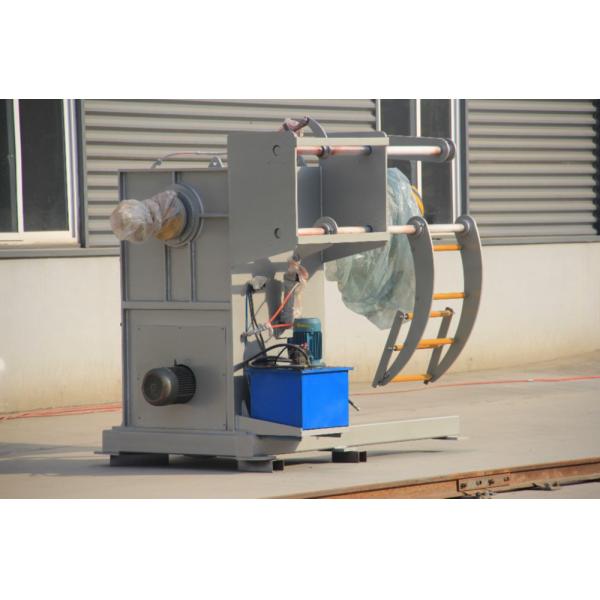

Automatic Uncoiler With moving car

It is used to support the steel coil and uncoil it in a turnable way. The steel coil is uncoiled by automatic.

Loading capacity:5T

Inner diameter: 450-508mm

Full Automatic Double Layer Roll Forming Machine Easy Operate For Roof Panels

Shearing Mechanism

It adopts the hydraulic drive and automatic location to decide the dimension and cut the target products.

Material of blades: Cr12

Components:It contains one set of cutting tools, one hydraulic tank and one cutter machine.

Full Automatic Double Layer Roll Forming Machine Easy Operate For Roof Panels

Full Automatic Double Layer Roll Forming Machine Easy Operate For Roof Panels
