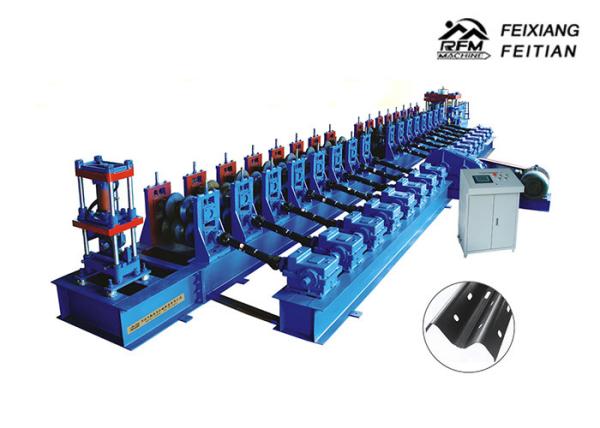

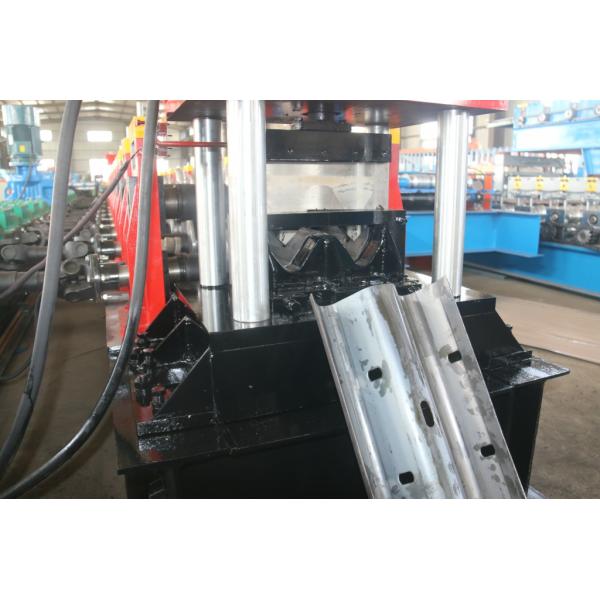

Steel Highway Guardrail Roll Forming Machine PLC Control With 3 - 4mm Thickness
Steel Highway Guardrail Roll Forming Machine PLC Control With 3 - 4mm Thickness
Steel Highway Guardrail Roll Forming Machine PLC Control With 3 - 4mm Thickness
Steel Highway Guardrail Roll Forming Machine PLC Control With 3 - 4mm Thickness
Specifications
Brand Name :
FEIXIANG
Model Number :
FX 85-192
Certification :
CE ISO,
Place of Origin :
China
MOQ :
1 sets
Supply Ability :
20 SETS/MONTH
Delivery Time :
45 working days
Packaging Details :
40'GP
Normal thickness :
3 - 4mm
Service :
Engineer can installing
Control :
Delta Siemens
Payment :
TT LC
Drawing :
Design as request
use for :
highway road
Description

Steel Highway Guardrail Roll Forming Machine PLC Control With 3 - 4mm Thickness

1. Product Description

Advantages: Two waves highway guardrail roll forming machine
/ As a manufacturer we are specialized in all kinds of roll forming machine.
/ Good experience of 20 years to make roll forming machine.
/ Choose the best material and components for export more then 40 countries.
/ Provide best price,good quality and fast delivery.

2. Machine details

Brand: Feixiang
Model number:Steel Highway Guardrail Roll Forming Machine PLC Control With 3 - 4mm Thickness
Voltage requirement: 380v50HZ,3PH
Working speed:15/min

3. Machine composition

No. Name Unit Qty
1 Decoiler set 1
2 Main Machine for roll forming set 1
3 Control System(PLC) set 1
4. Hydraulic oil pump set 1
5. Product stand set 1

Decoiler have manual decoiler,Electric decoiler and Hydraulic decoiler,can booking as request

4. Main parameters

Length of the main part About10500*1650*1500mm
Weight of main part About 9.5 ton
Voltage 380V/50HZ3Phase (as customer`s request)
Roller fixer Middle plate welded
Frame 400H steel welded
Middle plate thickness 30mm
Drive mode Chain Drice//Gear Drive
Material of rollers GCR15, quenched treated HRC58-62℃
Material of shafts 45# steel
Diameter of shafts Φ90mm(depend on defferent design)
Number of rollers: 16 rollers
Main power 37kw
Cutting&Hydraulic Double guide pillar
Hydraulic motor power 15kw
Hydraulic Pressure 10-12MPa
Cutting drive Decelerating motor + Chain drive gear all by high-frequency
Control System PLC system: Mitstubishi, Panasonic,Detal,Siemens,Schneider
Feeding Material width Better as your drawing or from our designer
Feeding Thickness 3~4mm
Effective width Better as your drawing or from our designer
Productivity 15/min

Steel Highway Guardrail Roll Forming Machine PLC Control With 3 - 4mm Thickness

Steel Highway Guardrail Roll Forming Machine PLC Control With 3 - 4mm Thickness
