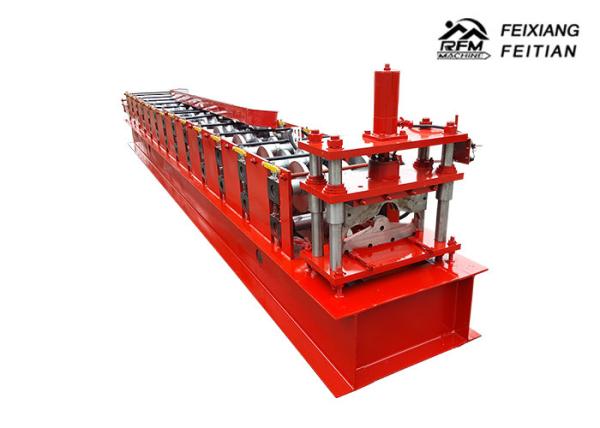

4.8 Tons Roof Ridge Cap Roll Forming Machine , Metal Steel Roof Roll Forming Machine
4.8 Tons Roof Ridge Cap Roll Forming Machine , Metal Steel Roof Roll Forming Machine
Specifications
Brand Name :
Feixiang
Model Number :
FX310
Certification :
CE BV ISO
Place of Origin :
China
MOQ :
1set
Price :
Please check with the supplier
Payment Terms :
L/C, T/T, D/P, D/A, Western Union, MoneyGram
Supply Ability :
30 sets per week
Delivery Time :
15 days
Packaging Details :
Nude packing,but we can also packing according the customer requirements
Machine name :
4.8 Tons Roof Ridge Cap Roll Forming Machine , Metal Steel Roof Roll Forming Machine
size :
6000*1350*1250mm
Weight :
4.8 tons
Control :
PLC computer with different language
Speed :
2-5m/min
Material :
GI,PPGI.AL
Description

4.8 Tons Roof Ridge Cap Roll Forming Machine , Metal Steel Roof Roll Forming Machine


1. Our factory information and main products

Different roof panel forming machines can produce different shapes of steel roof wall sheets according to the client’s profile drawings and requirements. The steel roof, wall sheets are new building materials with various thickness and colors. The finished products are used as the roof and walls of gymnasiums, airports, theatres, factories, warehouses, garages, exhibition centers etc.

The complete machine includes the uncoiler, main forming machine, computer controlling system and run out tables.

2. Main Material used

Material: Color steel ,galvanized steel or Aluminum
Feeding width:410mm
Material thickness:0.3-0.8mm
Yield strength:235-450mpa


3. Machine composition

No.

Name

Unit

Qty

1

Decoiler

set

1

2

Main Machine for roll forming

set

1

3

Control System(PLC)

set

1

4

Pressing System

set

1

5

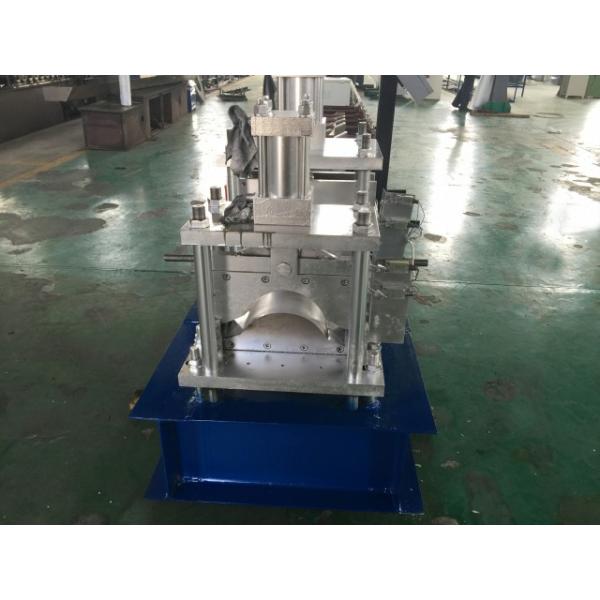

Cutting System

set

1

6

Output Table

set

1


4. Main parameters

Model number

4.8 Tons Roof Ridge Cap Roll Forming Machine , Metal Steel Roof Roll Forming Machine

Rolled material

0.3-0.8mm thickness, aluminum sheet, galvanized sheet,

colored steel sheet and various steel plates

Effective width

310mm

Feeding width

410mm

Forming steps

12 stations

Roller

45# forged steel, hard chrome plating within 0.05mm

Diameter of shaft

80mm

Main motor power

5.5 kw

Pump power

3 kw

Sprocket chain

1 inch

Drive type

by chain

Cutting Blade

Cr12, heat treatment 60-62°C

Frequency Converter

It has the advantage of slowing down before cutting,

to ensure the length accuracy

(±1mm, far better than industrial standard ±3mm).

component

1 set of manual decoiler,1 set of main roll forming machine,

1 set of computer control cabinet,

1 set of hydraulic System,1 set of cutting mechanism,

1 set of counter,1 set of output table

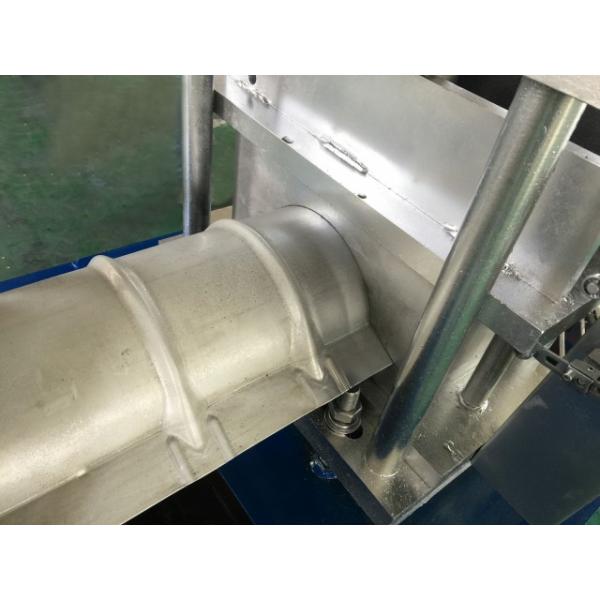

4.8 Tons Roof Ridge Cap Roll Forming Machine , Metal Steel Roof Roll Forming Machine
4.8 Tons Roof Ridge Cap Roll Forming Machine , Metal Steel Roof Roll Forming Machine
