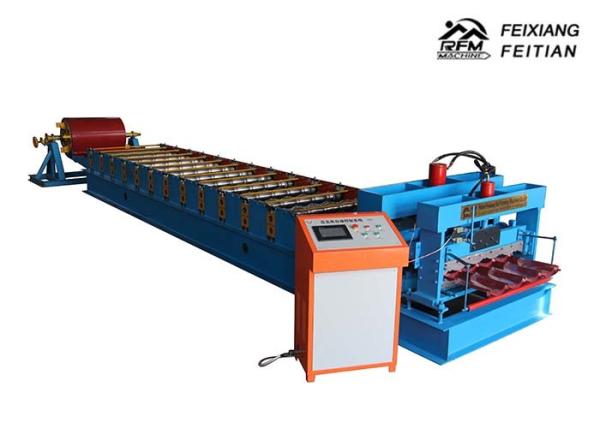

Galvanized Roof Panel Roll Forming Machine , Roofing Sheet Roll Forming Machine
Galvanized Roof Panel Roll Forming Machine , Roofing Sheet Roll Forming Machine
Galvanized Roof Panel Roll Forming Machine , Roofing Sheet Roll Forming Machine
Galvanized Roof Panel Roll Forming Machine , Roofing Sheet Roll Forming Machine
Specifications
Brand Name :
Feixiang
Model Number :
FX796
Certification :
CE BV ISO
Place of Origin :
China
MOQ :
1set
Price :
Please check with the supplier
Payment Terms :
L/C, T/T, D/P, D/A, Western Union, MoneyGram
Supply Ability :
30 sets per week
Delivery Time :
15 days
Packaging Details :
Nude packing,but we can also packing according the customer requirements
Machine name :
Galvanized Roof Panel Roll Forming Machine , Roofing Sheet Roll Forming Machine
size :
7200*1350*1250mm
Weight :
5.6tons
Control :
PLC computer with different language
Speed :
2-5m/min
Material :
GI,PPGI.AL
Description

Galvanized Roof Panel Roll Forming Machine , Roofing Sheet Roll Forming Machine


The raw material of the glazed tile forming machine is galvanized steel, different color steel or aluminum plate, roll forming die.
Glazed tile molding machine produces the rich color glazed tile, strong corrosion resistance, for the new building materials, with special paint, rich colors, classical and elegant, finishing touch for your building. Its light weight, high strength, good waterproof, easy to install.

1. Main Material used

Material: Color steel ,galvanized steel or Aluminum
Feeding width:914mm
Material thickness:0.3-0.8mm
Yield strength:235-450mpa

2. Machine details

Brand: Feixiang
Model number: FX796
Voltage requirement: 380v60hz3p
Working speed:2-4m/min


3. Machine composition

No.

Name

Unit

Qty

1

Decoiler

set

1

2

Main Machine for roll forming

set

1

3

Control System(PLC)

set

1

4

Pressing System

set

1

5

Cutting System

set

1

6

Output Table

set

1


4. Main parameters

Model number

Galvanized Roof Panel Roll Forming Machine , Roofing Sheet Roll Forming Machine

Rolled material

0.3-0.8mm thickness, aluminum sheet, galvanized sheet, colored steel sheet
and various steel plates

Effective width

796mm

Feeding width

914mm

Forming steps

13 stations

Roller

45# forged steel, hard chrome plating within 0.05mm

Diameter of shaft

80mm

Main motor power

5.5 kw

Pump power

3 kw

Sprocket chain

1 inch

Drive type

by chain

Cutting Blade

Cr12, heat treatment 60-62°C

Frequency Converter

It has the advantage of slowing down before cutting,
to ensure the length accuracy
(±1mm, far better than industrial standard ±3mm).

component

1 set of manual decoiler,1 set of main roll forming machine,
1 set of computer control cabinet,
1 set of hydraulic System,1 set of cutting mechanism,
1 set of counter,1 set of output table

Payment terms

cash,T/T,L/C.

Delivery time

30 working days


Galvanized Roof Panel Roll Forming Machine , Roofing Sheet Roll Forming Machine

Galvanized Roof Panel Roll Forming Machine , Roofing Sheet Roll Forming Machine
