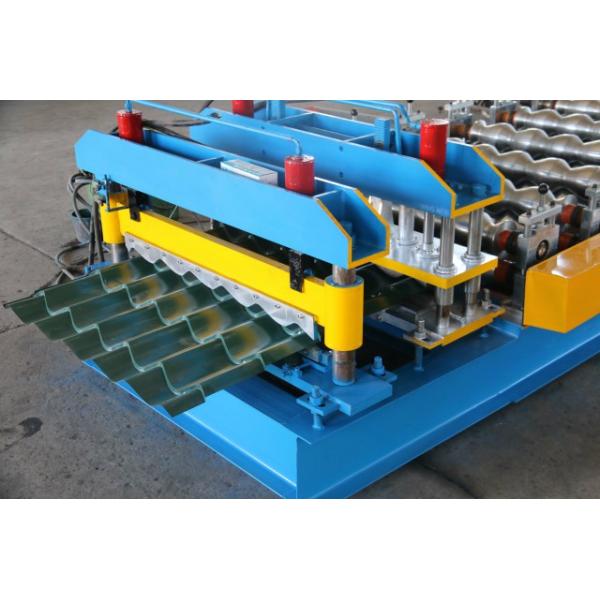

FX1000 Corrugated Iron Roofing Sheet Making Machine 2 - 5m/Min Speed For Steel Roofing
FX1000 Corrugated Iron Roofing Sheet Making Machine 2 - 5m/Min Speed For Steel Roofing
FX1000 Corrugated Iron Roofing Sheet Making Machine 2 - 5m/Min Speed For Steel Roofing
FX1000 Corrugated Iron Roofing Sheet Making Machine 2 - 5m/Min Speed For Steel Roofing
Specifications
Brand Name :
Feixiang
Model Number :
FX1000
Certification :
CE BV ISO
Place of Origin :
China
MOQ :
1set
Price :
Please check with the supplier
Payment Terms :
L/C, T/T, D/P, D/A, Western Union, MoneyGram
Supply Ability :
30 sets per week
Delivery Time :
15 days
Packaging Details :
Nude packing,but we can also packing according the customer requirements
Machine name :
FX1000 Corrugated Iron Roofing Sheet Making Machine 2 - 5m/Min Speed For Steel Roofing
size :
7500*1350*1250mm
Weight :
5.2tons
Control :
PLC computer with different language
Speed :
2-5m/min
Material :
GI,PPGI.AL
Description

FX1000 Corrugated Iron Roofing Sheet Making Machine 2 - 5m/Min Speed For Steel Roofing

Hebei Feixiang Roll Forming machine Machinery Factory is a wholly private-owned enterprise that manufactures roll-forming machines and related products for the sheet metal industry. Since established in 1996,our factory has developed machinery and production methods to meet our customers' increasing demands for profitability and new business opportunities.

1. Main Material used

Material: Color steel ,galvanized steel or Aluminum
Feeding width:1220mm
Material thickness:0.3-0.6mm
Yield strength:235-450mpa

2. Machine details

Brand: Feixiang
Model number: FX1000
Voltage requirement: 380v60hz3p
Working speed:2-4m/min


3. Machine composition

No.

Name

Unit

Qty

1

Decoiler

set

1

2

Main Machine for roll forming

set

1

3

Control System(PLC)

set

1

4

Pressing System

set

1

5

Cutting System

set

1

6

Output Table

set

1


4. Main parameters

Model number

FX1000 Corrugated Iron Roofing Sheet Making Machine 2 - 5m/Min Speed For Steel Roofing

Rolled material

0.3-0.8mm thickness, aluminum sheet, galvanized sheet,

colored steel sheet and
various steel plates

Effective width

1000mm

Feeding width

1200mm

Forming steps

14 stations

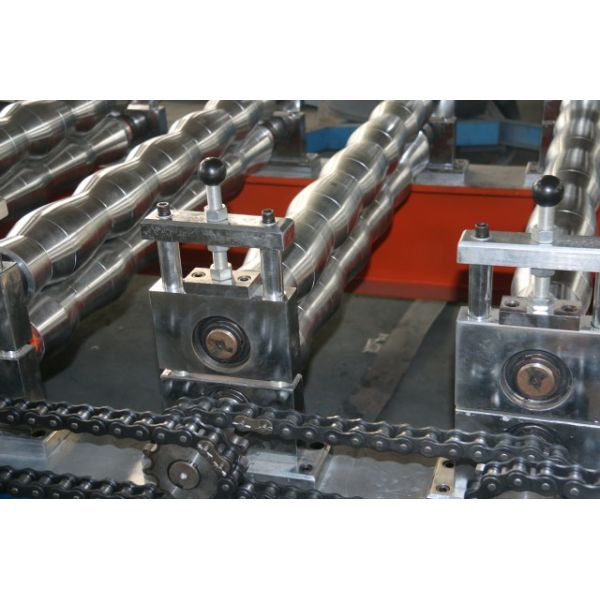

Roller

45# forged steel, hard chrome plating within 0.05mm

Diameter of shaft

80mm

Main motor power

5.5 kw

Pump power

4 kw

Sprocket chain

1 inch

Drive type

by chain

Cutting Blade

Cr12, heat treatment 60-62°C

Frequency Converter

It has the advantage of slowing down before cutting,

to ensure the length accuracy
(±1mm, far better than industrial standard ±3mm).

component

1 set of manual decoiler,1 set of main roll forming machine,

1 set of computer control cabinet,
1 set of hydraulic System,1 set of cutting mechanism,

1 set of counter,1 set of output table

Payment terms

cash,T/T,L/C.

Delivery time

30 working days

FX1000 Corrugated Iron Roofing Sheet Making Machine 2 - 5m/Min Speed For Steel Roofing
