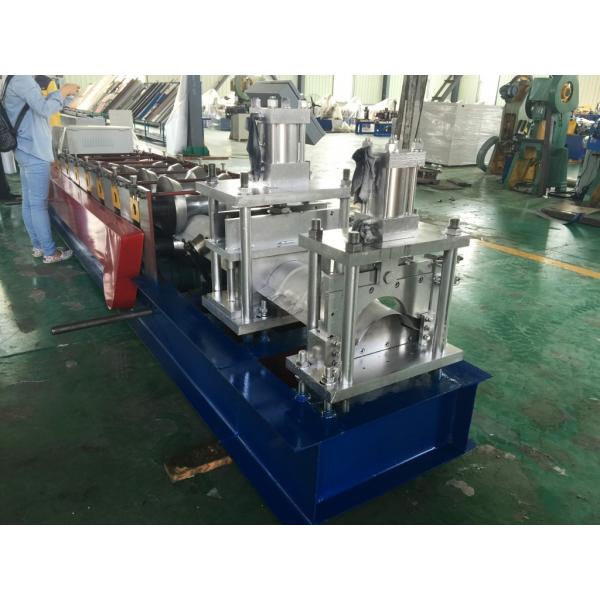

Steel Metal Roof Glazed Tile Roll Forming Machine With Hydraulic Cutter
Steel Metal Roof Glazed Tile Roll Forming Machine With Hydraulic Cutter
Steel Metal Roof Glazed Tile Roll Forming Machine With Hydraulic Cutter
Steel Metal Roof Glazed Tile Roll Forming Machine With Hydraulic Cutter
Specifications
Brand Name :
Feixiang
Model Number :
FX310
Certification :
CE BV ISO
Place of Origin :
China
MOQ :
1set
Price :
Please check with the supplier
Payment Terms :
L/C, T/T, D/P, D/A, Western Union, MoneyGram
Supply Ability :
30 sets per week
Delivery Time :
15 days
Packaging Details :
Nude packing,but we can also packing according the customer requirements
Machine name :
Steel Metal Roof Glazed Tile Roll Forming Machine With Hydraulic Cutter
size :
6000*1350*1250mm
Weight :
4.1tons
Control :
PLC computer with different language
Speed :
3-5m/min
Material :
GI,PPGI.AL
Description

Steel Metal Roof Glazed Tile Roll Forming Machine With Hydraulic Cutter


1. Our factory information and main products

Please pay attention to the points as follows
The Advantages of Roll forming machine: solid shaft, PLC control, hydraulic system, fast production speed,long spanlife
Can design the machine as your drawing,machine color do you favor.
Delivery: Large capacity and Fast delivery,can accept third-party check before delivery
Perfect after-sales service: Our engineer can teach you how to install and operate the machine at your place,all machine parts are available.


2. Main Material used

Material: Color steel ,galvanized steel or Aluminum
Feeding width:410mm
Material thickness:0.3-0.8mm
Yield strength:235-450mpa


3. Machine composition

No.

Name

Unit

Qty

1

Decoiler

set

1

2

Main Machine for roll forming

set

1

3

Control System(PLC)

set

1

4

Pressing System

set

1

5

Cutting System

set

1

6

Output Table

set

1


4. Main parameters

Model number

Steel metal roof ridge tile forming machine with hydraulic cutter

Rolled material

0.3-0.8mm thickness, aluminum sheet, galvanized sheet, colored steel sheet

and various steel plates

Effective width

310mm

Feeding width

410mm

Forming steps

12 stations

Roller

45# forged steel, hard chrome plating within 0.05mm

Diameter of shaft

80mm

Main motor power

5.5 kw

Pump power

3 kw

Sprocket chain

1 inch

Drive type

by chain

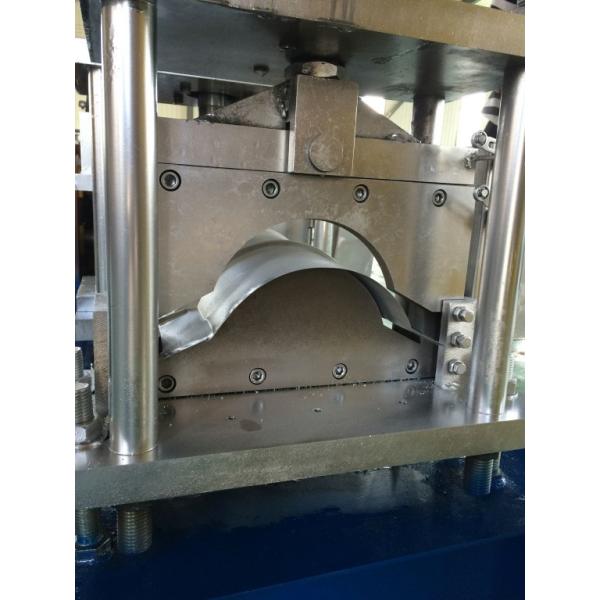

Cutting Blade

Cr12, heat treatment 60-62°C

Frequency Converter

It has the advantage of slowing down before cutting,

to ensure the length accuracy

(±1mm, far better than industrial standard ±3mm).

component

1 set of manual decoiler,1 set of main roll forming machine,

1 set of computer control cabinet,

1 set of hydraulic System,1 set of cutting mechanism,

1 set of counter,1 set of output table

Payment terms

cash,T/T,L/C.

Delivery time

30 working days


Steel Metal Roof Glazed Tile Roll Forming Machine With Hydraulic Cutter


Steel Metal Roof Glazed Tile Roll Forming Machine With Hydraulic Cutter
