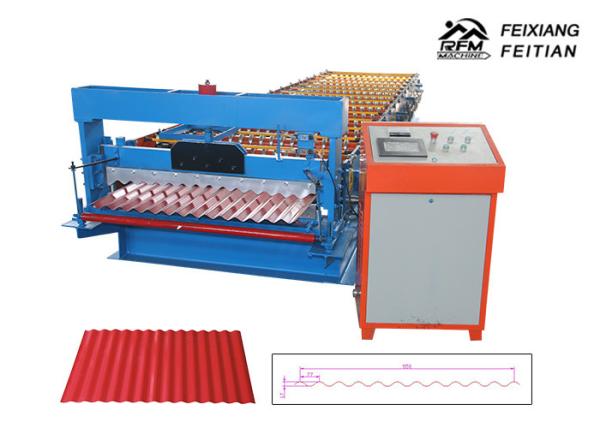

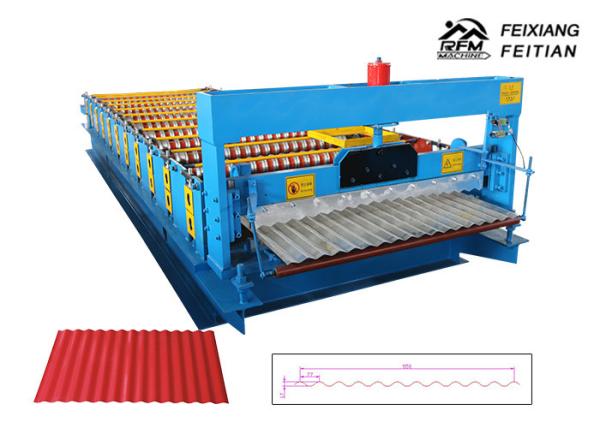

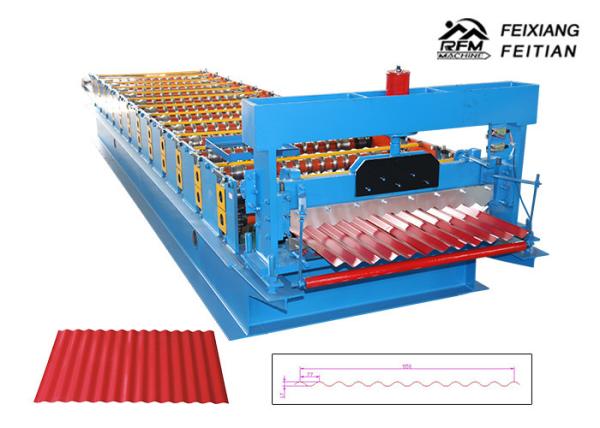

FX850 Color Steel Trapezoidal Corrugated Sheet Roll Forming Machine 380V 50HZ 3P
FX850 Color Steel Trapezoidal Corrugated Sheet Roll Forming Machine 380V 50HZ 3P
FX850 Color Steel Trapezoidal Corrugated Sheet Roll Forming Machine 380V 50HZ 3P
FX850 Color Steel Trapezoidal Corrugated Sheet Roll Forming Machine 380V 50HZ 3P
FX850 Color Steel Trapezoidal Corrugated Sheet Roll Forming Machine 380V 50HZ 3P
FX850 Color Steel Trapezoidal Corrugated Sheet Roll Forming Machine 380V 50HZ 3P
FX850 Color Steel Trapezoidal Corrugated Sheet Roll Forming Machine 380V 50HZ 3P
FX850 Color Steel Trapezoidal Corrugated Sheet Roll Forming Machine 380V 50HZ 3P
FX850 Color Steel Trapezoidal Corrugated Sheet Roll Forming Machine 380V 50HZ 3P
FX850 Color Steel Trapezoidal Corrugated Sheet Roll Forming Machine 380V 50HZ 3P
Specifications
Brand Name :
feixiang
Model Number :
FX-850
Certification :
CE ISO
Place of Origin :
Hebei China
MOQ :
1 set
Price :
Pls consult with Supplier
Payment Terms :
L/C, T/T, Western Union, D/P
Supply Ability :
50sets/month
Delivery Time :
35days
Packaging Details :
Nude,plc and easy damage parts covered with plastic film
alternative name :
Roof sheet roll forming machine
color :
as request
feeding width :
1000mm
roller :
45# steel with quenching
shaft :
80mm
plc :
delta
decoiler :
5 ton
Description

FX850 Color Steel Trapezoidal Corrugated Sheet Roll Forming Machine ISO Approved

Machine working flow chart:

FX850 Color Steel Trapezoidal Corrugated Sheet Roll Forming Machine 380V 50HZ 3P

Suitable forming material attribute:

Material: Color steel ,galvanized steel or Aluminum,(for G550 please let us know in advance)

Feeding width:914mm

Material thickness:0.2-0.8mm or 0.3-1.0mm

Yield strength:235-450mpa

FX850 Color Steel Trapezoidal Corrugated Sheet Roll Forming Machine 380V 50HZ 3P

Device info:

Brand: Feixiang

Model number: FX860

Machine size: 5.8*1.5* 1.3M(L*W*H)

Weight: 4.2T

Voltage requirement: 380v50hz3p or as request

Working speed:12-18m/min

Machine whole line:

Part 1. Manual Deciler(Or Automatic hydraulic decoiler)

Part 2. Main forming machine

Part 3. Hydraulic pump

Part 4. Plc control system

Part 5. Cutting device

Part 6. Manual Table(or Automatic stack machine)

Main technical parameters:

Machine base: 350# steel welded

Frame: Steel plate screwed

Forming stations: 11 steps

Roller: 45# steel with quenching HRC 40-45℃

Shaft: 45#steel,diameter 80mm

Gear: SKF

Chain: 1 Inch

PLC: Panasonnic(or Schneider,Delta...)

Motor: Siemens,4kw

Counter :Chint(or Kubler...)

Pump: Yuken 4kw

Cutter: Cr12 HRC 58-62℃

FX850 Color Steel Trapezoidal Corrugated Sheet Roll Forming Machine 380V 50HZ 3P

FX850 Color Steel Trapezoidal Corrugated Sheet Roll Forming Machine 380V 50HZ 3P

After sale service:

Warranty: 1 year

After-sales service: 24h*7days*1year’s on line and engineer service overseas

Spare parts we provide for free:

1 Machine electric and hydraulic easy damage parts
2 Operate tool spanner ,pilers ,screw and so on
