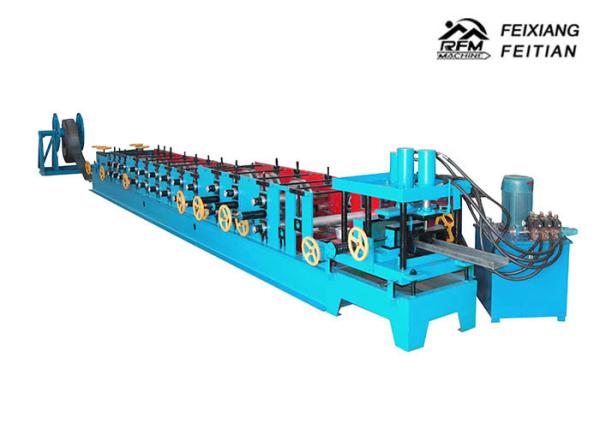

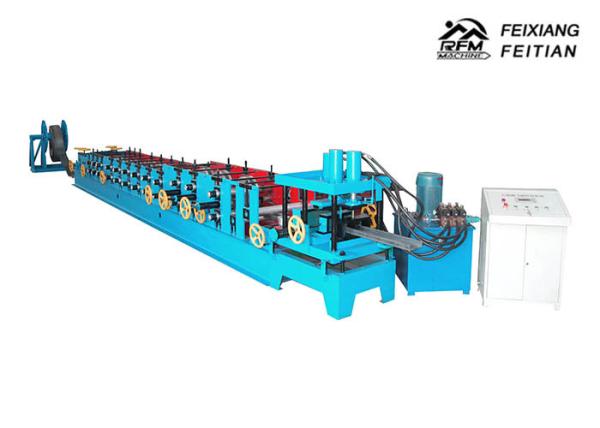

Metal Steel C Purlin Roll Forming Machine 1.5 - 3mm Thickness With 80mm Roller Diameter
Metal Steel C Purlin Roll Forming Machine 1.5 - 3mm Thickness With 80mm Roller Diameter
Metal Steel C Purlin Roll Forming Machine 1.5 - 3mm Thickness With 80mm Roller Diameter
Metal Steel C Purlin Roll Forming Machine 1.5 - 3mm Thickness With 80mm Roller Diameter
Specifications
Brand Name :
FEIXIANG
Model Number :
FX C purlin
Certification :
CE,ISO
Place of Origin :
CHINA
MOQ :
1
Payment Terms :
Western Union, T/T, L/C, D/A, D/P, MoneyGram
Supply Ability :
30 SETS ONE MONTH
Delivery Time :
40 DAYS
Packaging Details :
NUDE
Price :
Price pls consult with supplier
name :
Metal Steel C Purlin Roll Forming Machine
thickness :
1.5 - 3mm
frame :
350
Station :
12 station
Warranty :
1 year
Service :
engineer installing
Description

Metal Steel C Purlin Roll Forming Machine 1.5 - 3mm Thickness With 80mm Roller Diameter

Specifications

1. C purlin roll forming machine

2. high precise and run throughly
3. reliable quality with CE,BV,ISO certification
4. professional service and engineer
5. good reputation and trustable

Model:C&U Type

1 Suitable to process steel
2 Effective width 80-300mm
3 Feeding width customize
4 Rollers 12rows
5 Diameter of roller 80mm
6 Thickness of steel 1.5-3mm
7 Motor power 15kw
8 Pump power 7.5kw
9 Working speed 8-12m/min
10 Material of cutting knives Cr12 quenching
11 Material of roller 45# steel quenching
12 Main frame 350H steel
13 Voltage as customer's requirement
14 Weight about 6T

All technical parameters can be changed,according to user's need.

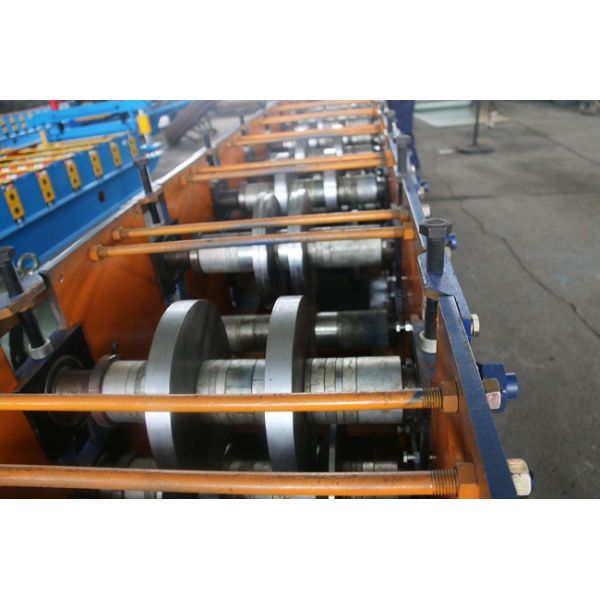

Metal Steel C Purlin Roll Forming Machine 1.5 - 3mm Thickness With 80mm Roller Diameter

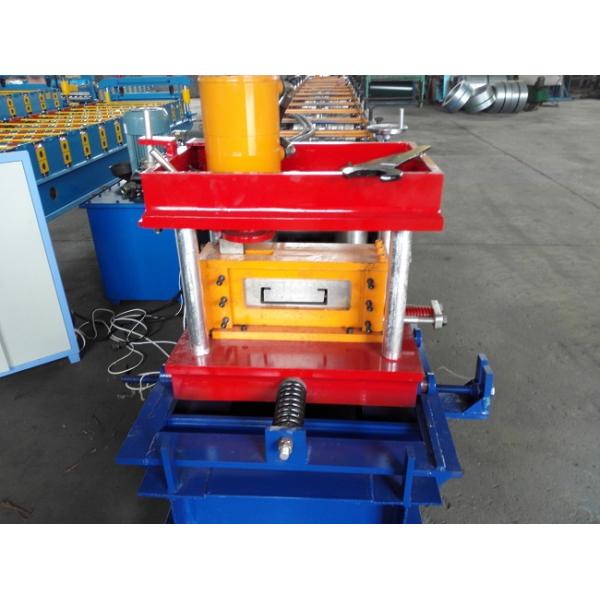

Metal Steel C Purlin Roll Forming Machine 1.5 - 3mm Thickness With 80mm Roller Diameter

Contact Information

Thanks very much for your time, welcome to contactUs, we are with you within 24 hours.

We want to know following information.

1), What is the exact profile you want to produce?

2), What kind of material you will use, such as steel or aluminium, max coil weight, thickness?

3), What kind of decoiler and stacker you need?

Pls contact us as below informaiton,hope can cooperate,thanks advance
