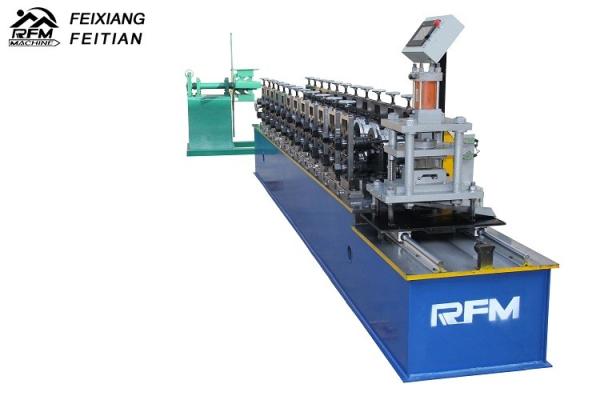

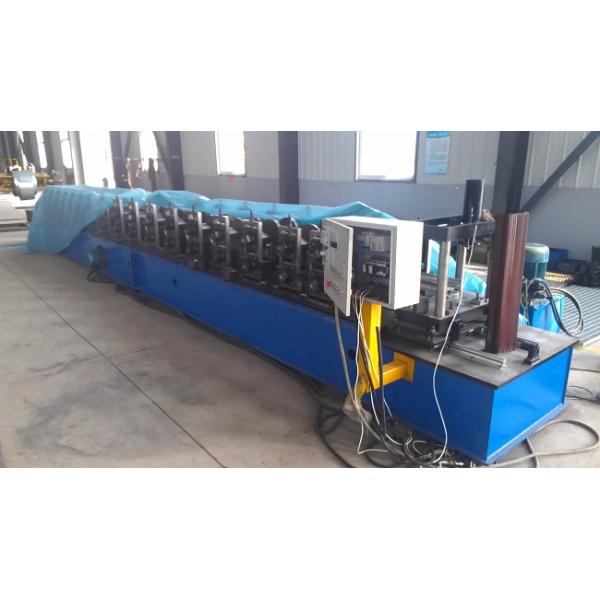

Light Steel Keel Shape Roller Shutter Door Making Machine For Garage Door
Light Steel Keel Shape Roller Shutter Door Making Machine For Garage Door
Light Steel Keel Shape Roller Shutter Door Making Machine For Garage Door
Light Steel Keel Shape Roller Shutter Door Making Machine For Garage Door
Specifications
Brand Name :
Feixiang
Model Number :
FX240
Certification :
CE BV ISO
Place of Origin :
China
MOQ :
1set
Price :
Please check with the supplier
Payment Terms :
L/C, T/T, D/P, D/A, Western Union, MoneyGram
Supply Ability :
30 sets per week
Delivery Time :
15 days
Packaging Details :
Nude packing,but we can also packing according the customer requirements
Machine name :
Light Steel Keel Shape Roller Shutter Door Making Machine For Garage Door
size :
7000*800*900mm
Weight :
5.2 tons
Control :
PLC computer with different language
Speed :
25m/min
Material :
GI,PPGI.AL
Description

Light Steel Keel Shape Roller Shutter Door Making Machine For Garage Door



1. Our factory information and main products

The Perforated Roller Shutter Door Machine can manufacture the Galvanized roller shutter door slat. Produced products are in fashionable design and are widely used. Perforated Roller Shutter Door Machine with the highest security in rolling fire doors, Rolling Steel Doors, Fire Doors, rolling shutter smoke doors, air-leakage doors, counter shutters, insulated doors, rolling sound doors, and storm shutters. rolling steel doors, rolling steel fire doors, rolling fire shutters, insulated fire doors, rolling steel grilles. Roller shutter garage doors are designed for use in industrial, commercial, airports, retail, hotel, institutional, malls and shopping centers.


2. Main Material used

Material: Color steel ,galvanized steel or Aluminum
Feeding width:292mm
Material thickness:0.8-1.5mm
Yield strength:235-450mpa


3. Machine composition


Name SET Use TO
3T Manual decoiler 1 set Loading the coil
Main forming machine and cutter 1 set forming the shape.Cutting the length as request.
PLC control system 1set

1.Language as request
2.Text and touch screen for chose
3.Brand PLC:Panasonic /Delta /Mitsubish
Oil pump 1 set Make coolling as request
Product stand 1 set Stand finishing product
Remark All equipment can order as customer’s request

4. Main parameters

Model number

Light Steel Keel Shape Roller Shutter Door Making Machine For Garage Door

Rolled material

0.8-1.5mm thickness, aluminum sheet, galvanized sheet,

colored steel sheet and

various steel plates

Effective width

240mm

Feeding width

292mm

Forming steps

14 stations

Roller

Cr12 hard chrome plating within 0.05mm

Diameter of shaft

60mm

Main motor power

11 kw

Pump power

5.5 kw

Sprocket chain

1 inch

Drive type

by Gears

Cutting Blade

Cr12, heat treatment 60-62°C

Frequency Converter

It has the advantage of slowing down before cutting,

to ensure the length accuracy

(±1mm, far better than industrial standard ±3mm).

component

1 set of manual decoiler,1 set of main roll forming machine,

1 set of computer control cabinet,

1 set of hydraulic System,1 set of cutting mechanism,

1 set of counter,1 set of output table

Payment terms

cash,T/T,L/C.

Delivery time

30 working days

Light Steel Keel Shape Roller Shutter Door Making Machine For Garage Door

Light Steel Keel Shape Roller Shutter Door Making Machine For Garage Door
