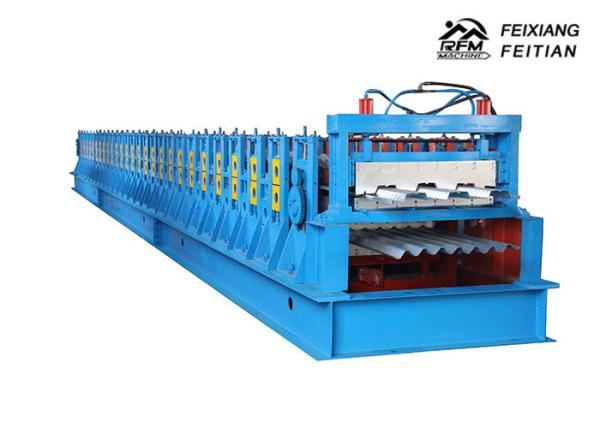

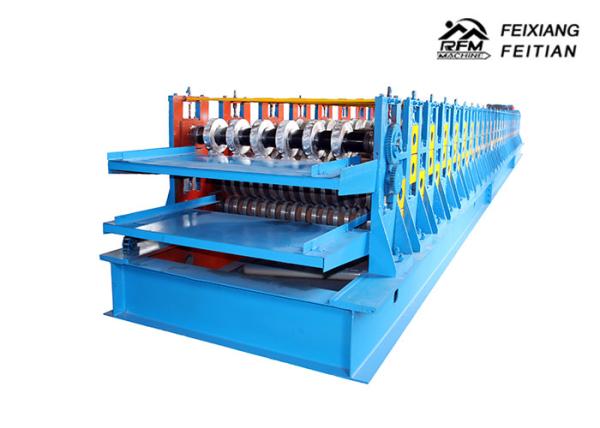

Reliable Steel Deck Forming Machine / Galvanized Tile Sheet Forming Machine
Reliable Steel Deck Forming Machine / Galvanized Tile Sheet Forming Machine
Reliable Steel Deck Forming Machine / Galvanized Tile Sheet Forming Machine
Reliable Steel Deck Forming Machine / Galvanized Tile Sheet Forming Machine
Specifications
Brand Name :
FEIXIANG
Model Number :
Steel Deck Forming Machine/ Galvanized Floor Decking Roll Forming Machine
Certification :
CE ISO
Place of Origin :
China
MOQ :
1 sets
Supply Ability :
20 SETS/MONTH
Delivery Time :
45 working days
Packaging Details :
40'GP
Normal thickness :
0.8-1.2mm
Type :
floor tiles making machine
Control :
Delta Siemens
Voltage :
380V/220 /440 50HZ,3PH
Warrantee :
1 year
use for :
Roofing
Description

Reliable Steel Deck Forming Machine / Galvanized Tile Sheet Forming Machine

1. Product Description

Steel Deck Forming Machine / Galvanized Floor Decking Roll Forming Machine , the finished product are of many features,such as simple shape,large wave height,high intensity and good adhesiveness when pouring the concrete together with the welded steel wire net on-site,in the high story building,it not only can save steel mould board,but also reduce the bearing of the floor: on basis of equal capacity,it reduces the steel amount of engineering useage,so that it saves cost of investment.

2. Machine details

Brand: Feixiang
Model number:Steel Deck Forming Machine/ Galvanized Floor Decking Roll Forming Machine
Voltage requirement: 380v50HZ,3PH
Working speed:8-10/min

3. Machine composition

No. Name Unit Qty
1 Decoiler set 1
2 Main Machine for roll forming set 1
3 Control System(PLC) set 1
4. Hydraulic oil pump set 1
5. Product stand set 1

Decoiler have manual decoiler,Electric decoiler and Hydraulic decoiler,can booking as request

4. Main parameters

Length of the main part About10500*1650*1500mm
Weight of main part About 9.5 ton
Voltage 380V/50HZ3Phase (as customer`s request)
Roller fixer Middle plate welded
Frame 350H steel welded
Middle plate thickness 20mm/18mm/16mm/14mm/12mm
Drive mode Chain Drice//Gear Drive
Material of rollers 45# steel, surface hard chromium plating.
Material of shafts 45# steel
Diameter of shafts Φ80mm(depend on defferent design)
Number of rollers: 22 rollers
Main power 5.5kw
Cutting&Hydraulic Double guide pillar
Hydraulic motor power 3kw,4kw
Hydraulic Pressure 10-12MPa
Cutting drive Decelerating motor + Chain drive gear all by high-frequency
Control System PLC system: Mitstubishi, Panasonic,Detal,Siemens,Schneider
Feeding Material width Better as your drawing or from our designer
Feeding Thickness 0.8~1.2mm
Effective width Better as your drawing or from our designer
Productivity 8-12/min

5. package and shipping

The machine naked in the container or packing as your required.
Payment: 30% T/T in advance and balance 70% after inspection confirmation before shipment.
Delivery: within 45 working days after receipt of deposit
Guarantee: One year, and we will provide the technical support for the whole life.
Reliable Steel Deck Forming Machine / Galvanized Tile Sheet Forming Machine

Reliable Steel Deck Forming Machine / Galvanized Tile Sheet Forming Machine
