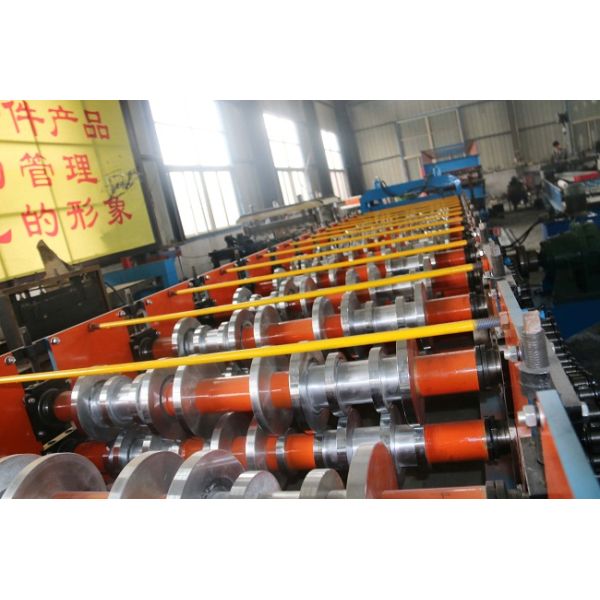

Full Automatic Floor Deck Roll Forming Machine PLC Control For Construction
Full Automatic Floor Deck Roll Forming Machine PLC Control For Construction
Full Automatic Floor Deck Roll Forming Machine PLC Control For Construction
Full Automatic Floor Deck Roll Forming Machine PLC Control For Construction
Specifications
Brand Name :
FEIXIANG
Model Number :
Full Auto Operate Steel Floor Deck Roll Forming Machine
Certification :
CE ISO,
Place of Origin :
China
MOQ :
1 sets
Supply Ability :
20 SETS/MONTH
Delivery Time :
45 working days
Packaging Details :
40'GP
Normal thickness :
0.8-1.2mm
Type :
Automatic Roll Forming Machine
Control :
Delta Siemens
Voltage :
380V/220 /440 50HZ,3PH
Warrantee :
1 year
use for :
Roofing
Description

Full Automatic Floor Deck Roll Forming Machine PLC Control For Construction

1. Product Description

Full Auto Operate Steel Floor Deck Roll Forming Machine ,the finished product are of many features,such as simple shape,large wave height,high intensity and good adhesiveness when pouring the concrete together with the welded steel wire net on-site,in the high story building,it not only can save steel mould board,but also reduce the bearing of the floor: on basis of equal capacity,it reduces the steel amount of engineering useage,so that it saves cost of investment.

2. Machine details

Brand: Feixiang
Model number:Full Auto Operate Steel Floor Deck Roll Forming Machine
Voltage requirement: 380v50HZ,3PH
Working speed:8-10/min

3.Machine composition

No. Name Unit Qty
1 Decoiler set 1
2 Main Machine for roll forming set 1
3 Control System(PLC) set 1
4. Hydraulic oil pump set 1
5. Product stand set 1

Decoiler have manual decoiler,Electric decoiler and Hydraulic decoiler,can booking as request

4. Main parameters

Metal Decking Floor Sheet Profile Cold Roll Forming Machine
Suitable Material Colored or galvanized steel coil, HRB60 or equivalent
Thickness Range 0.8-1.2 mm
Coil Width Range

1000 or 1250 mm.

According to your actual drawing.
Electric Power

380V, 50 Hz, 3 phase

or according to your need.
Dimension About 12.8*1.7*1.25 (L*W*H), as per the drawing
Cutting Automatically stop and cutting when it comes to the set length.
Length of the Sheet

You can set the length according to your need.

It is controlled by PLC

length accuracy: ±1mm.

5. package and shipping

The machine naked in the container or packing as your required.
Payment: 30% T/T in advance and balance 70% after inspection confirmation before shipment.
Delivery: within 45 working days after receipt of deposit
Guarantee: One year, and we will provide the technical support for the whole life.
