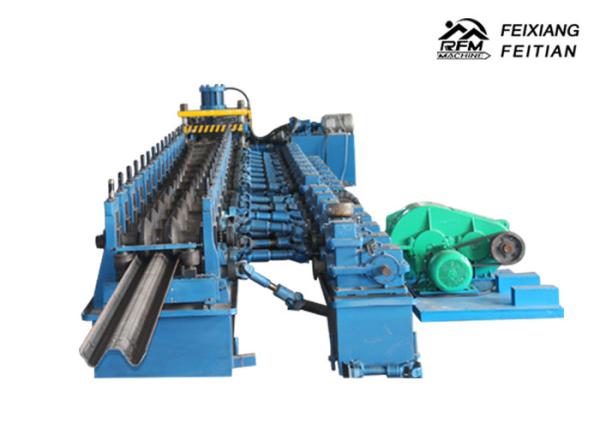

Road Structural Highway Guardrail Roll Forming Machine For Traffic Barrier
Road Structural Highway Guardrail Roll Forming Machine For Traffic Barrier
Specifications
Brand Name :
FEIXIANG
Model Number :
FX 350
Certification :
CE ISO
Place of Origin :
China
MOQ :
1 sets
Supply Ability :
20 SETS/MONTH
Delivery Time :
45 working days
Packaging Details :
40'GP
Normal thickness :
3 - 4mm
Type :
Road Structural Highway Guardrail Roll Forming Machine For Traffic Barrier
Control :
Delta Siemens
Color :
as request
Voltage :
380V/220 /440 50HZ,3PH
use for :
highway road
Description

Road Structural Highway Guardrail Roll Forming Machine For Traffic Barrier

1. Product Description

Guaranteed Two Waves Highway Guardrail Roll Forming Machine consists of steel coil supporting frame, feeding platform, shearing mechanism, hydraulic station, steel sheet unfolding system, computer control cabinet, high precision counter, panel receiveing frame and so on.
Equipment parts
steel strip supporting frame
Feeding platform
Automatic shearing system
Hydraulic system
Steel strip unfolding system
Computer control system (imported computer)
High-precision automatic counter
Receiving table

2. Machine details

Brand: Feixiang
Model number:Highway guardrail road structural insulated panels roll forming machine
Voltage requirement: 380v50HZ,3PH
Working speed:15/min

3. Machine composition

No. Name Unit Qty
1 Decoiler set 1
2 Main Machine for roll forming set 1
3 Control System(PLC) set 1
4. Hydraulic oil pump set 1
5. Product stand set 1

Decoiler have manual decoiler,Electric decoiler and Hydraulic decoiler,can booking as request

4. Main parameters

Length of the main part About15500*1650*1500mm
Weight of main part About 9.5 ton
Voltage 380V/50HZ3Phase (as customer`s request)
Roller fixer Middle plate welded
Frame 400H steel welded
Middle plate thickness 30mm
Drive mode Chain Drice//Gear Drive
Material of rollers GCR15, quenched treated HRC58-62℃
Material of shafts 45# steel
Diameter of shafts Φ90mm(depend on defferent design)
Number of rollers: 16 rollers
Main power 37kw
Cutting&Hydraulic Double guide pillar
Hydraulic motor power 15kw
Hydraulic Pressure 10-12MPa
Cutting drive Decelerating motor + Chain drive gear all by high-frequency
Control System PLC system: Mitstubishi, Panasonic,Detal,Siemens,Schneider
Feeding Material width Better as your drawing or from our designer
Feeding Thickness 3~4mm
Effective width Better as your drawing or from our designer
Productivity 15/min

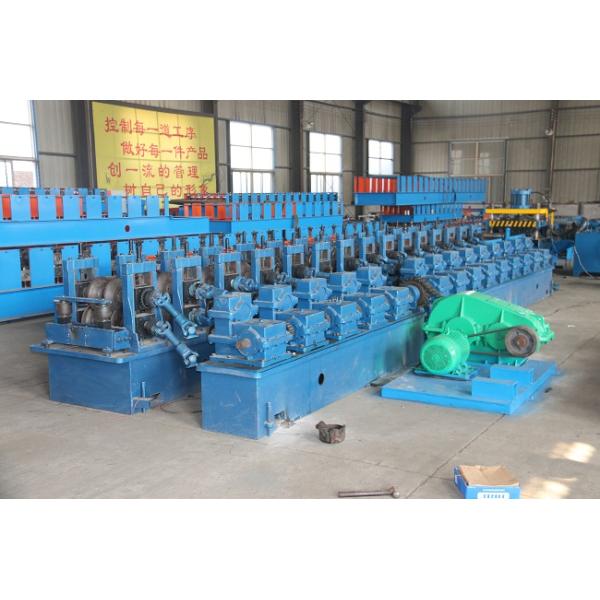

Road Structural Highway Guardrail Roll Forming Machine For Traffic Barrier

Road Structural Highway Guardrail Roll Forming Machine For Traffic Barrier
