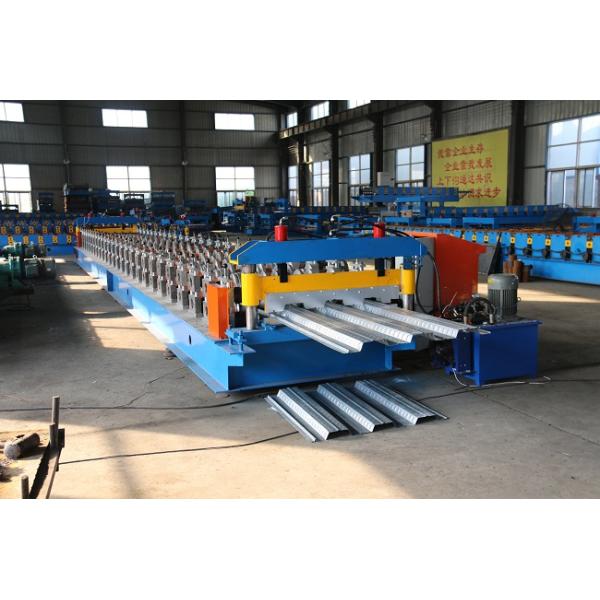

688 Steel Floor Tiles Making Machine , PLC Control Cold Roll Forming Machine
688 Steel Floor Tiles Making Machine , PLC Control Cold Roll Forming Machine
688 Steel Floor Tiles Making Machine , PLC Control Cold Roll Forming Machine
688 Steel Floor Tiles Making Machine , PLC Control Cold Roll Forming Machine
688 Steel Floor Tiles Making Machine , PLC Control Cold Roll Forming Machine
688 Steel Floor Tiles Making Machine , PLC Control Cold Roll Forming Machine
Specifications
Brand Name :
RFM
Model Number :
688
Certification :
CE,ISO
Place of Origin :
CHINA
MOQ :
1 set
Price :
USD 10000-20000 set
Payment Terms :
L/C, D/P, T/T, Western Union
Supply Ability :
60 sets one month
Delivery Time :
30 days
Packaging Details :
Nude
Material :
steel
Thickness :
0.5-1.5mm
Color :
Blue and yellow
Control system :
PLC
Material of the roller :
Bearing steel
Frame :
400H Steel
Description

688 Steel Floor Tiles Making Machine , PLC Control Cold Roll Forming Machine

Model number

Floor tile roll forming machine

Rolled material

0.5-1.5mm thickness, aluminum sheet, galvanized sheet, colored steel sheet and various

steel plates

Effective width

688/700/718.5/750/760/992/960/914/915

Feeding width

1000/1200/1250mm

Forming steps

18-30 stations

Roller

45# forged steel, hard chrome plating within 0.05mm

Diameter of shaft

90mm

Main motor power

22 kw

Pump power

5.5 kw

Sprocket chain

2 inch

Drive type

by chain

Cutting Blade

Cr12, heat treatment 60-62°C

Frequency Converter

It has the advantage of slowing down before cutting, to ensure the length accuracy (±1mm,

far better than industrial standard ±3mm).

component

1 set of manual decoiler,1 set of main roll forming machine,1 set of computer control cabinet,

1 set of hydraulic System,1 set of cutting mechanism,1 set of counter,1 set of output table

Payment terms

cash,T/T,L/C.

Remark: Above parameters are standard, we can design and make some change exactly

according to your requirements.

deck floor roll forming machine

688 Steel Floor Tiles Making Machine , PLC Control Cold Roll Forming Machine

688 Steel Floor Tiles Making Machine , PLC Control Cold Roll Forming Machine
