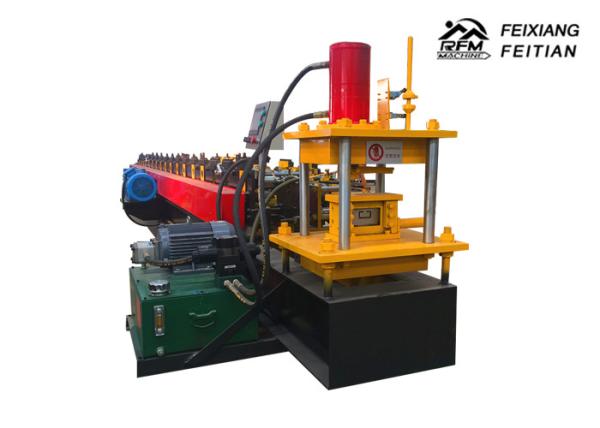

Reliable C Section Roll Forming Machine , Bridge Sheet Cable Tray Punching Machine
Reliable C Section Roll Forming Machine , Bridge Sheet Cable Tray Punching Machine
Reliable C Section Roll Forming Machine , Bridge Sheet Cable Tray Punching Machine
Reliable C Section Roll Forming Machine , Bridge Sheet Cable Tray Punching Machine
Specifications
Brand Name :
Feixiang
Model Number :
FX-300
Certification :
ISO
Place of Origin :
Hebei China
MOQ :
1 set
Price :
as discussion
Payment Terms :
L/C, D/A, D/P, T/T
Supply Ability :
30sets/month
Delivery Time :
45 working days
Packaging Details :
as request
Name :
cable ladder support sheet machine
warranty :
1 year
speed :
as design
color :
as request
frame :
middle plate
chain :
i inch
motor :
5.5kw
pump :
4kw
Description

Cable ladder C section bridge sheet roll forming machine with punching

Description:

Cable tray roll forming machine uses cantilever type at the two sides, the punch press do the round ribs in bottom or different holes’stamping and cutting. The material is guided into main roll forming machine by guider. By electrical control, automatically improve and adjust different width and height.

Technical parameters:

Automatic inner tight decoiler
◊ coil inner diameter 450mm-550mm
◊ maximum width of coiling600mm
◊ maximum weight of loading 2500kg

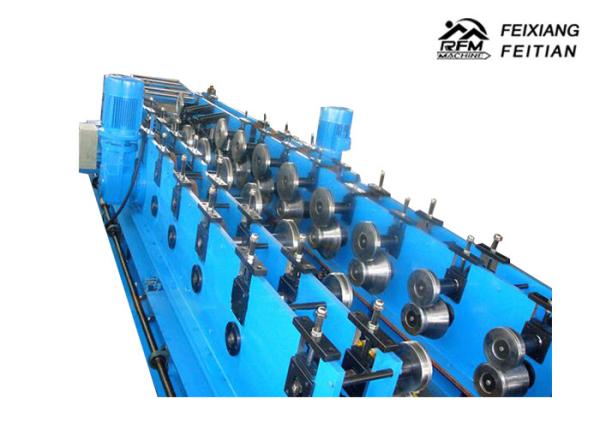

Main forming machine
◊ a. number of forming steps 11rows
◊ material of shaft 45# steel . Outer diameter 60mm
◊ main motor power: 5.5kw
◊ The speed of forming: 0-50m/min
Hydraulic cutter
◊ material of blade:Cr12 mould steel with quenched treatment 60-62
◊ cutting system :adopt advanced hydraulic drive, after forming automatic cut, no distort, no wasting , high safe factor.(tracking cutting)
The electrical control system
◊ The Brand of display: DELTA
◊ The main computer (PLC): DELTA DVP14
Hydraulic system
◊ Adopting advanced hydraulic system of Tai Wan
◊ Power:3kw
The equipments coating , package
◊ the coating adopt international general shade-guide
◊ The package :simple waterproof package
Automatic inner tight decoiler
◊ coil inner diameter 450mm-550mm
◊ maximum width of coiling600mm
◊ maximum weight of loading 2500kg
Main forming machine
◊ a. number of forming steps 11rows
◊ material of shaft 45# steel . Outer diameter 60mm
◊ main motor power: 5.5kw
◊ The speed of forming: 0-50m/min
Hydraulic cutter
◊ material of blade:Cr12 mould steel with quenched treatment 60-62
◊ cutting system :adopt advanced hydraulic drive, after forming automatic cut, no distort, no wasting , high safe factor.(tracking cutting)
The electrical control system
◊ The Brand of display: DELTA
◊ The main computer (PLC): DELTA DVP14
Hydraulic system
◊ Adopting advanced hydraulic system of Tai Wan
◊ Power:3kw
The equipments coating , package
◊ the coating adopt international general shade-guide
◊ The package :simple waterproof package

Package and delivery:

Plastic Packing / Common Packing. Water-proof, Rust Prevention and Dust Prevention.

By sea or other ways. In general, by sea, the port of loading is XINGANG PORT. It is only need 2 hours from our Company and Factory to Xingang Port, Tianjin City.

Why choose us?


1.We can make and design all kinds of roll forming machine according to customer’s requests.
2.This is a very perfect and durable equipment. We have more than 20 years experiences.
3.This kind of machine has the best quality and the best price. It has accurate measurement and easy operating.
4.We can design and manufacture the special type machine according to the customers’ requirement and we could provide technical guiding, production, installation, debugging and maintenance service to all customers.
5. Our product has been exported to many regions and won high reputation because of the high quality and reasonable price.
