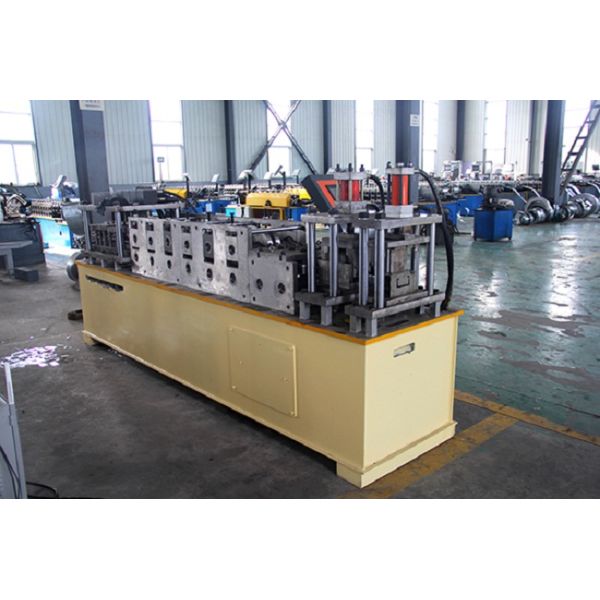

High Precision Light Steel Keel Roll Forming Machine 3 - 8 m/Min Speed With Punching
High Precision Light Steel Keel Roll Forming Machine 3 - 8 m/Min Speed With Punching
High Precision Light Steel Keel Roll Forming Machine 3 - 8 m/Min Speed With Punching
High Precision Light Steel Keel Roll Forming Machine 3 - 8 m/Min Speed With Punching
Specifications
Brand Name :
Feixiang
Model Number :
FX-89
Certification :
CE
Place of Origin :
China Hebei
MOQ :
1set
Price :
usd35000-120000/set
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
20sets/month
Delivery Time :
60 working days
Packaging Details :
Nude
Name :
steel villa house keel frame roll forming machine
roller :
Cr12
shaft :
60mm
plc :
delta
software :
as request
color :
orange
speed :
3-8m/min
drive :
gear
Description

Light steel villa house keel frame roll forming machine with punching

Suitable material:

Material: Galvanized steel or Stainless steel

Feeding width:Based on customer’s request

Material thickness:0.8-1.5mm

Yield strength:235-450mpa

High Precision Light Steel Keel Roll Forming Machine 3 - 8 m/Min Speed With Punching

Equipment info:

Brand: Feixiang

Model number: FX-89

Machine size: 4500*1100*1300mm

Weight: 3.5T

Voltage requirement: 380v60hz3p

Working speed:3-8m/min

High Precision Light Steel Keel Roll Forming Machine 3 - 8 m/Min Speed With Punching

Machine components

Part 1 3T manual decoiler
Part 2 Punching device, five groups
Part 3 Main forming machine
Part 4 Hydraulic pump
Part 5 Plc control system
Part 6 Hydraulic cutting device
Part 7 Manual holder

High Precision Light Steel Keel Roll Forming Machine 3 - 8 m/Min Speed With Punching

Technical requests:

Machine base: 350# steel welded

Frame: 29mm column plate

Forming stations: 8 steps

Roller: Cr12

Shaft: 45#steel,diameter 50mm

Gear: Harbin

Chain: Gear

PLC: Delta

Motor: 5.5kw

Counter:Chint

Pump: Yuken 4kw

Press mold:Cr12 Mov

Cutter: Cr12

High Precision Light Steel Keel Roll Forming Machine 3 - 8 m/Min Speed With Punching

Our service:

Warranty: 1 year

After-sales service: 24h*7days*1year’s on line and engineer service overseas

High Precision Light Steel Keel Roll Forming Machine 3 - 8 m/Min Speed With Punching
