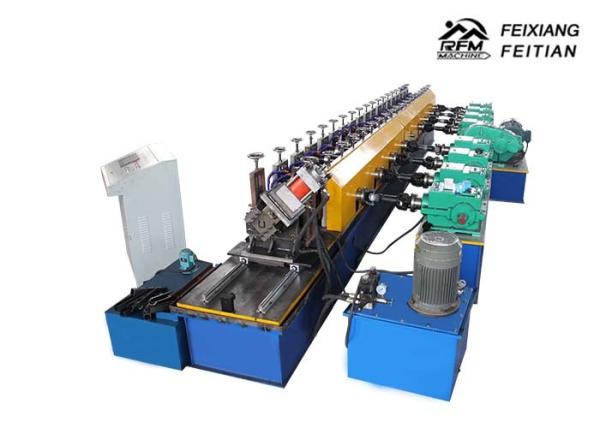

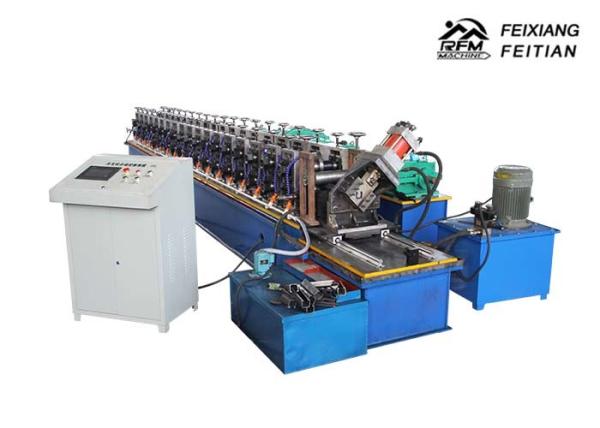

Column style metal steel PV support bracket frame roll forming machine

Column Style Cable Tray Manufacturing Machine / Bracket Frame Roll Forming Machine

Technical parameters

Decoiler :

1: Max width of raw material :600mm
2: Capacity: 3000kgs
3: Inner diameter of coil: 450-600mm

Leveling machine:

1: Guiding system consists of several rollers, and the width between them could control by the manual rollers.
2: Ensure the material level and straight
3: The width can be adjusted.

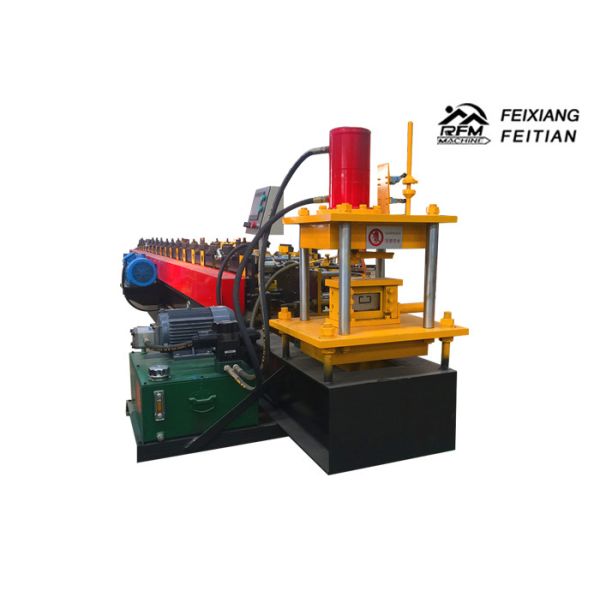

Puching system with servo feeding J23-40T puching machine : 40T

Main roll forming machine

Cutting
1. Cutting motion: Hydraulic fly saw cutting , The main machine automatically stops and then cutting. After the cutting, the main machine will automatically start.
2. Material of blade: GCR12with heat treatment
3. Length measuring: Automatic length measuring
4. Tolerance of length: +/- 1.5mm

PLC control box

1. Voltage, Frequency, Phase: 380 V, 50 Hz, 3Phase (this is can depend on customer request)
2. Automatic length measurement:
3. Automatic quantity measurement
4. Computer used to control length & quantity. Machine will automatically cut to length and stop when required quantity is achieved
5. Length inaccuracy can be amended easily
6. Control panel: Button-type switch and touch screen
7. Unit of length: millimeter (switched on the control panel

Training and Installation

1 We offer installation service local in paid, reasonable charge.
2 QT test is welcome and professional.
3. manual and using guide is optional if no visiting and no installation.

Certification and after service
1. Match the technology standard, ISO producing certification
2. CE certification
3. 12 months warranty since the delivery. Board.

Our advantage:

1. Short delivery period.
2. Effective communication
3. Interface customized.
