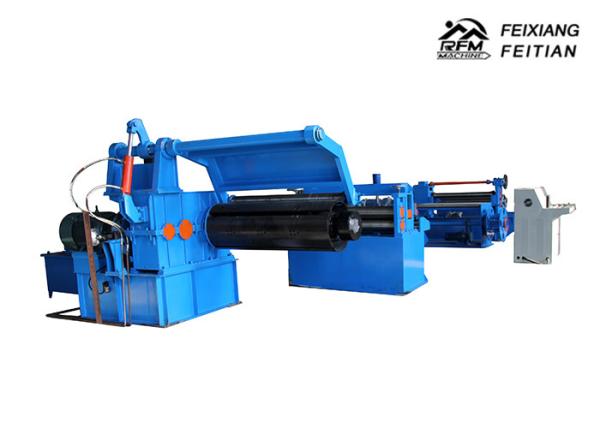

Top Quality HR CR SS GI Steel Coils Slitting Machine for Sale

1. The chart of process flow:
Decoiling--feeding--leveling--cutting-slitting--recoiling

2. Main equipment:
Decoiler,main forming machine,hydraulic cutting,electric system(plc),hydraulic system,product stand.

3. Technical parameters
1)Profile
A.thickness:>3mm

B. Feeding width:as you need(1000/1200/1250/1500)

2) inner tight decoiler
A. coil inner diameter:450mm--550mm
B. max width of coiling:1200mm
C.max weight of loading:5000kg

3) Levelling machine

1 Shaft material:45# steel quenching and retempering treatment,, outer diameter 85mm

2 Number of shaft:1 step of feeding , leveling shaft up: 5 pieces, down: 6 pieces

3 Gear transport

4 Max Forming speed:40m/min



4)cutting system
A.hydraulic cutter
B.Blade and mould material:Cr12 steel with quenched treated 60-62
Cutting system advanced hydraulic drive,after automatic cutting after forming.no

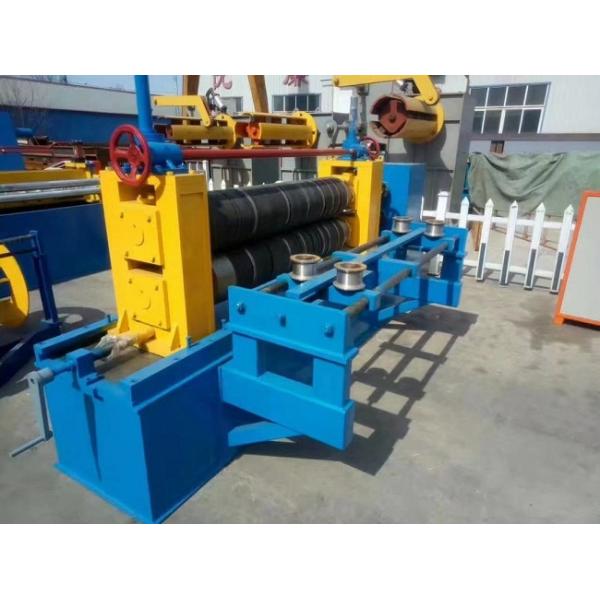

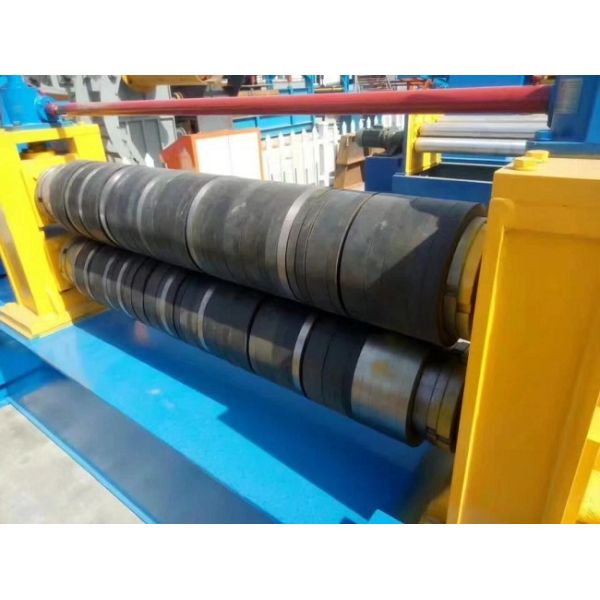

5). Slitting device

1 Material width for slitting:740mm and 925m

2 slitting width:185mm

3 Number of strip:4 strips or 5strips

4 Width tolerance: ±1mm

5 Slitting Speed: 40 m/min

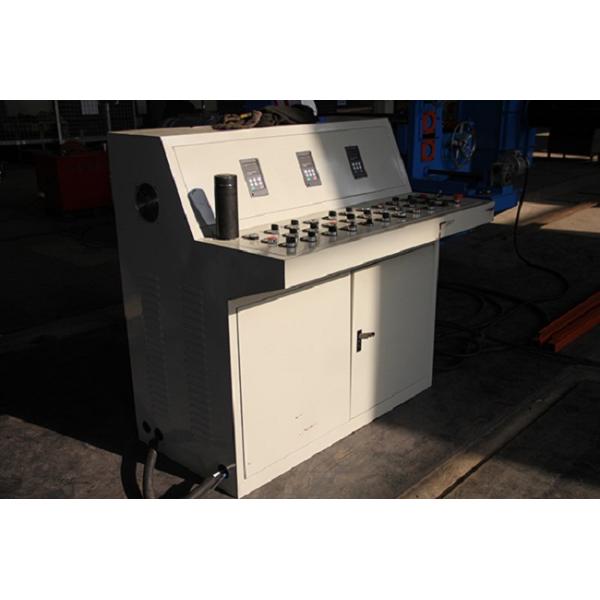

6) control system
A. PLC: taida form Taiwan
B. Coder:from south korea


7)1. material coil inner diameter:450mm--550mm

2 max coil width: 1250mm

3. carrying capacity:5000kg
4 .Manual expanding

4.Payment: 30% T/T in advance and balance 70% after inspection confirmation before shipment.

Delivery:within 60 working day after receipt of deposit.

5.Warranty

1. One year, and we will provide the technical support for the whole life.

2. Trainning: the buyer should charge of visa, return ticket, food and accommodation overseas .

3. Need one technicians

4. Training time: one week (contains the time of installation and adjustment)

6. Our service

Warranty: 1 year
After-sales service: 24h*7days*1year’s on line and engineer service overseas
