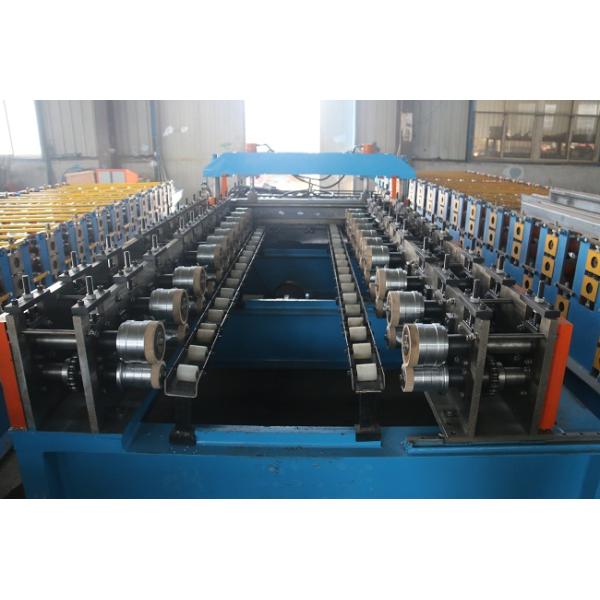

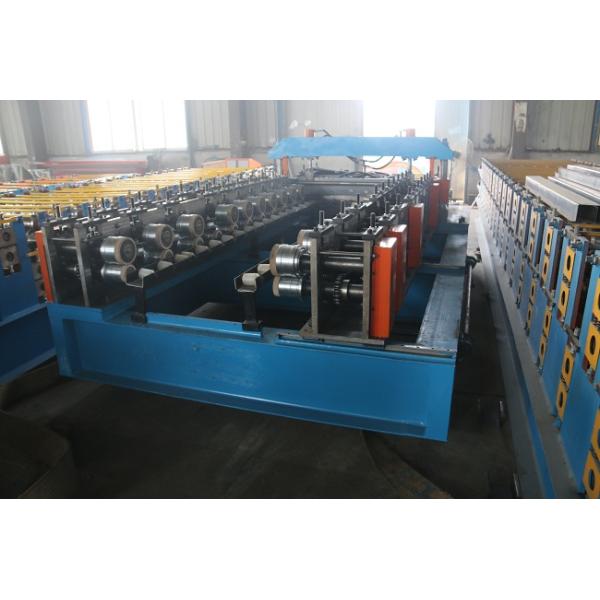

Ribs Metal Wall Panel Making Machine / Roof Sheet Side Adjustable Machine
Ribs Metal Wall Panel Making Machine / Roof Sheet Side Adjustable Machine
Ribs Metal Wall Panel Making Machine / Roof Sheet Side Adjustable Machine
Ribs Metal Wall Panel Making Machine / Roof Sheet Side Adjustable Machine
Specifications
Brand Name :
Feixiang
Model Number :
FX-A
Certification :
CE
Place of Origin :
Hebei China
MOQ :
1set
Price :
as discussion
Payment Terms :
L/C, D/A, D/P, T/T
Supply Ability :
30sets/month
Delivery Time :
45 days
Packaging Details :
nude
Name :
Roof sheet side adjustable machine
Warranty :
1 year
color :
as request
speed :
8m/min
size :
as design
roller :
45# steel
shaft :
70mm
chain :
1 inch
Description

Adjustable Sheet Ribs Metal Wall Panels Liner Roll Forming Machine

1. Technical parameter:

Item Specification

Material

 Type Pre-painted steel coil & galvanized coils
Thickness 0.3-0.7mm
Yield strength 235-345Mpa
Roller material 45#Chrome steel
Forming speed About 20m/min
Output speed 20m/min
Speed adjusting mode AC Frequency
Roller drive Decelerating motor + Chain drive
Cutting mode Hydraulic cutting
Cutter material Cr12 mould steel
Length measurement Encoder
Control mode Mitsubishi PLC
Operating mode Button + Mitsubishi Touch screen
Main motor power(kw) 7.5KW
Hydraulic station motor power(kw) 2.2 KW

2. Components of machine:

Decoiler 1set (5T capacity)
Feeding & guiding device 1set
Main roll forming machine 1set
Hydraulic cutting system 1set
Controlling system 1set
Run out table

1set

3. Packaging Details

1. One 40ft container for loading one set of machine with mechanical decoiler;
2. The whole Wiped Anti Rust Oil, PLC controller covered by foam film;
3. Spare parts and some small parts packed in plastic tooling box;
4. All Components Fixed by steel wire with Container.
