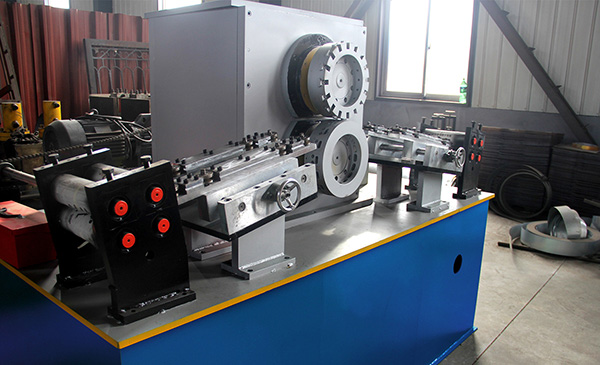

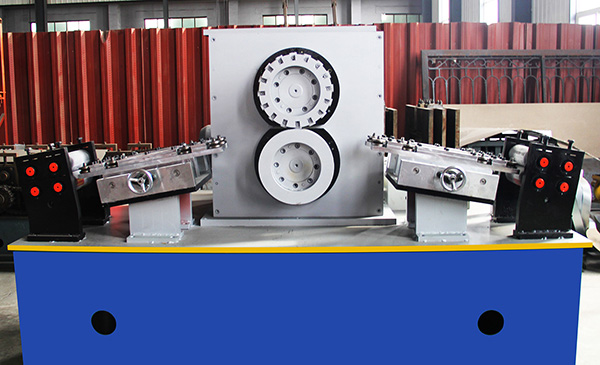

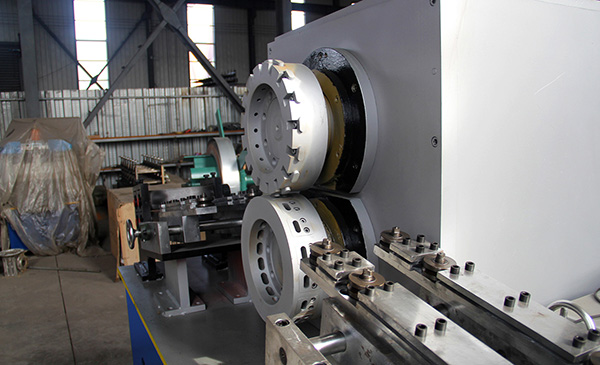

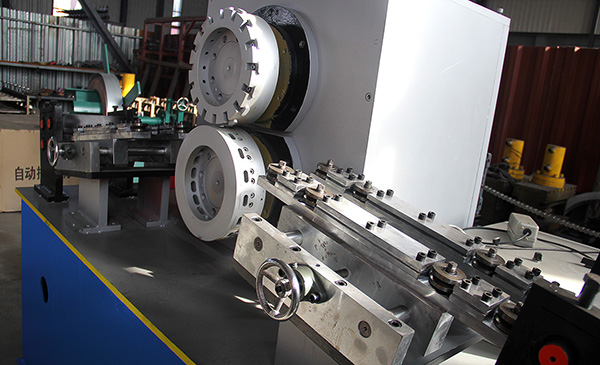

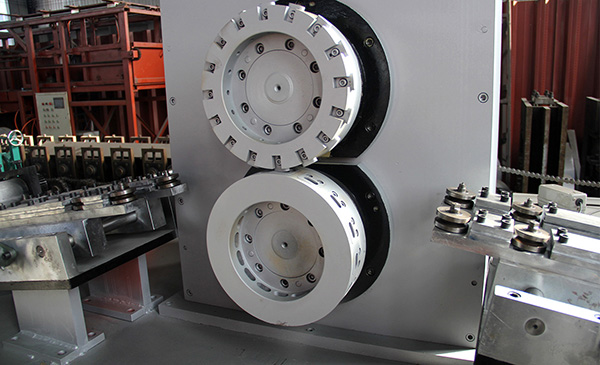

Coil Sheet Rolling Rotary Punching Machine Gear Drive With Servo Feeder
Coil Sheet Rolling Rotary Punching Machine Gear Drive With Servo Feeder
Coil Sheet Rolling Rotary Punching Machine Gear Drive With Servo Feeder
Coil Sheet Rolling Rotary Punching Machine Gear Drive With Servo Feeder
Coil Sheet Rolling Rotary Punching Machine Gear Drive With Servo Feeder
Coil Sheet Rolling Rotary Punching Machine Gear Drive With Servo Feeder
Specifications
Brand Name :
Feixiang
Model Number :
FX-R
Certification :
CE ISO
Place of Origin :
Hebei China
MOQ :
1set
Price :
usd18000-98000/set
Payment Terms :
L/C, D/A, D/P, T/T
Supply Ability :
50sets/month
Delivery Time :
45 working days
Packaging Details :
Nude
Name :
Rolling rotary punching machine
roller :
Cr12
shafe :
200mm
drive :
gear
decoiler :
1.5T
feeder :
servo feeder
motor :
5.5kw
safety cover :
available
Description

High speed metal steel coil rolling rotary punching machine

Suitable rolling material:

Material: Color steel ,galvanized steel or Aluminum,(if G550 please check with us)

Feeding width:as request

Material thickness:0.18-1mm or 0.2-2mm

Yield strength:235-450mpa

Coil Sheet Rolling Rotary Punching Machine Gear Drive With Servo Feeder

Equipment info:

Brand: Feixiang

Model number: FX rolling punching

Machine size: 1.6*1.2* 1.9M(L*W*H)

Weight: 1.5T

Voltage requirement: 380v60hz3p

Working speed:20-50m/min

Coil Sheet Rolling Rotary Punching Machine Gear Drive With Servo Feeder

Machine components

Part 1. Main punching machine

Part 2. Electric motor

Part 3. Simple control system

Coil Sheet Rolling Rotary Punching Machine Gear Drive With Servo Feeder

Technical parameter:

Frame: Steel plate screwed

Forming stations: 1 step

Roller: Cr12 HRC 58-62℃

Gear: SKF

Motor: Siemens,5.5kw

Coil Sheet Rolling Rotary Punching Machine Gear Drive With Servo Feeder

Service:

Warranty: 1 year

After-sales service: 24h*7days*1year’s on line and engineer service overseas

Spare parts

Relay 5 pcs for free
Valves 2 pcs
Tool available

Coil Sheet Rolling Rotary Punching Machine Gear Drive With Servo Feeder
