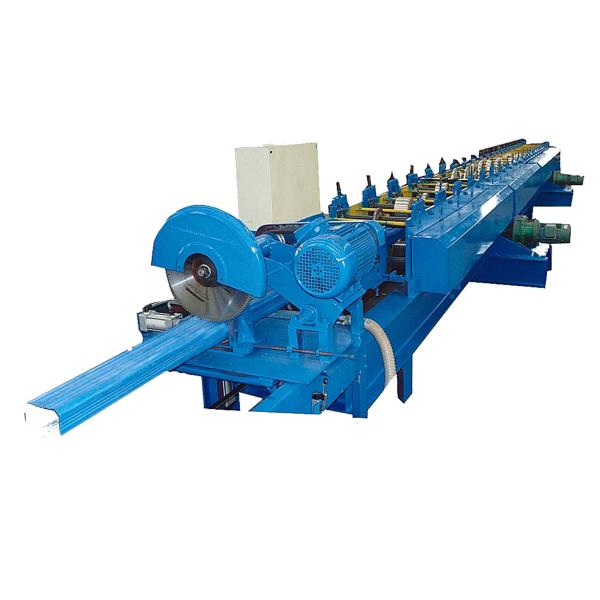

Rectangular Downspout Roll Forming Machine Easy Operation For Construction
Rectangular Downspout Roll Forming Machine Easy Operation For Construction
Specifications
Brand Name :
Feixiang
Model Number :
FX120
Certification :
CE BV ISO
Place of Origin :
China
MOQ :
1set
Price :
Please check with the supplier
Payment Terms :
L/C, T/T, D/P, D/A, Western Union, MoneyGram
Supply Ability :
30 sets per week
Delivery Time :
15 days
Packaging Details :
Nude packing,but we can also packing according the customer requirements
Machine name :
Rectangular Downspout Roll Forming Machine Easy Operation For Construction
size :
11700mm*1200mm*900mm
Weight :
5.2tons
Control :
PLC computer with different language
Speed :
5-15m/min
Material :
GI,PPGI.AL
Description

Rectangular Downspout Roll Forming Machine Easy Operation For Construction

1. Products description

This product is widely used in many kinds of industrial factory, civilian buildings, and roof board for attached part product. It has advantage of pretty appearance, durable using and so on.
2. Main Material used

Material: Color steel ,galvanized steel or Aluminum
Feeding width:392mm
Material thickness:0.3-0.8mm
Yield strength:235-450mpa


3. Machine composition

No.

Name

Unit

Qty

1

Decoiler

set

1

2

Main Machine for roll forming

set

1

3

Control System(PLC)

set

1

4

Pressing System

set

1

5

Cutting System

set

1

6

Output Table

set

1


4. Main parameters

Model number

Rectangular Downspout Roll Forming Machine Easy Operation For Construction

Rolled material

0.3-0.8mm thickness, aluminum sheet, galvanized sheet, colored steel
sheet and various steel plates

Effective width

120mm

Feeding width

392mm

Forming steps

24 stations

Roller

45# forged steel, hard chrome plating within 0.05mm

Diameter of shaft

62mm

Main motor power

5.5 kw

Pump power

3 kw

Sprocket chain

1 inch

Drive type

by chain

Cutting Blade

Cr12, heat treatment 60-62°C

Frequency Converter

It has the advantage of slowing down before cutting, to ensure the
length accuracy (±1mm, far better than industrial standard ±3mm).

component

1 set of manual decoiler,1 set of main roll forming machine,1 set of
computer control cabinet,1 set of hydraulic System,1 set of cutting
mechanism,1 set of counter,1 set of output table

Payment terms

cash,T/T,L/C.

Delivery time

30 working days


Rectangular Downspout Roll Forming Machine Easy Operation For Construction
