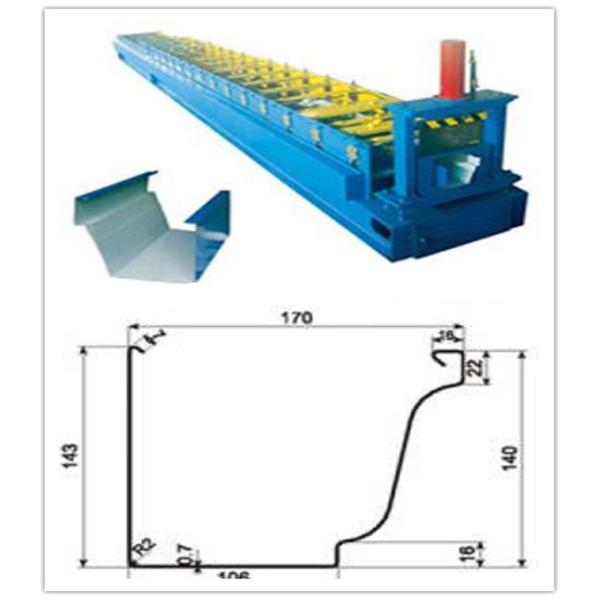

Special Shape Downpipe Roll Forming Machine 392mm Feeding Width For Galvanized Steel
Special Shape Downpipe Roll Forming Machine 392mm Feeding Width For Galvanized Steel
Special Shape Downpipe Roll Forming Machine 392mm Feeding Width For Galvanized Steel
Special Shape Downpipe Roll Forming Machine 392mm Feeding Width For Galvanized Steel
Specifications
Brand Name :
Feixiang
Model Number :
FX-Trough
Certification :
CE BV ISO
Place of Origin :
China
MOQ :
1set
Price :
Please check with the supplier
Payment Terms :
L/C, T/T, D/P, D/A, Western Union, MoneyGram
Supply Ability :
30 sets per week
Delivery Time :
15 days
Packaging Details :
Nude packing,but we can also packing according the customer requirements
Machine name :
Special Shape Automatic Roll Forming Machines Steel Trough Roll Forming Machine
size :
17000*1100*1200mm
Weight :
5.8tons
Control :
PLC computer with different language
Speed :
15m/min or more
Material :
GI,PPGI.AL
Description

Special Shape Automatic Roll Forming Machines Steel Trough Roll Forming Machine



1. Our factory information and main products

Hebei Feixiang Roll Forming machine Machinery Factory is a wholly private-owned enterprise that manufactures roll-forming machines and related products for the sheet metal industry. Since established in 1996,our factory has developed machinery and production methods to meet our customers' increasing demands for profitability and new business opportunities.
We supply a wide range of machines such as roll forming machines for metal roof tiles ,wall sheets ,C-shaped purlines,Z-shaped purlines ,and peculiar shaped purlines ,glazed tile formings machines ,highway guardrail forming machines ,sandwich panel roll forming machines ,press brakes and shearing machines .
All of our products are popular both at home and abroad.
Our professional technicians and skilled workers ensure high quality products for our customers with prefect quality management and testing systems.We're always able to meet your customized needs .From basic economical roll formers to most complex,we fashion a solution to meet your company's production goals and budgets.
“Increasing your productivity and profitability with our efficient and reliable machines that offer high-quality output" and "On-time delivery ,customized design,competitive prices and satisfied after-sales services" are our promises to you.
We sincerely welcome both domestic and international friends to cooperate with us


2. Main Material used

Material: Color steel ,galvanized steel or Aluminum
Feeding width:392mm
Material thickness:0.3-1mm
Yield strength:235-450mpa


3. Machine composition

No.

Name

Unit

Qty

1

Decoiler

set

1

2

Main Machine for roll forming

set

1

3

Control System(PLC)

set

1

4

Pressing System

set

1

5

Cutting System

set

1

6

Output Table

set

1


4. Main parameters

Model number

Automatic Steel metal Special shape steel trough roll forming machine

Rolled material

0.3-1mm thickness, aluminum sheet, galvanized sheet, colored steel sheet and various steel plates

Effective width

150mm

Feeding width

392mm

Forming steps

26 stations

Roller

45# forged steel, hard chrome plating within 0.05mm

Diameter of shaft

40mm

Main motor power

5.5 kw

Pump power

3 kw

Sprocket chain

1 inch

Drive type

by chain

Cutting Blade

Cr12, heat treatment 60-62°C

Frequency Converter

It has the advantage of slowing down before cutting, to ensure the length accuracy (±1mm, far better than industrial standard ±3mm).

component

1 set of manual decoiler,1 set of main roll forming machine,1 set of computer control cabinet,1 set of hydraulic System,1 set of cutting mechanism,1 set of counter,1 set of output table

Payment terms

cash,T/T,L/C.

Delivery time

30 working days
