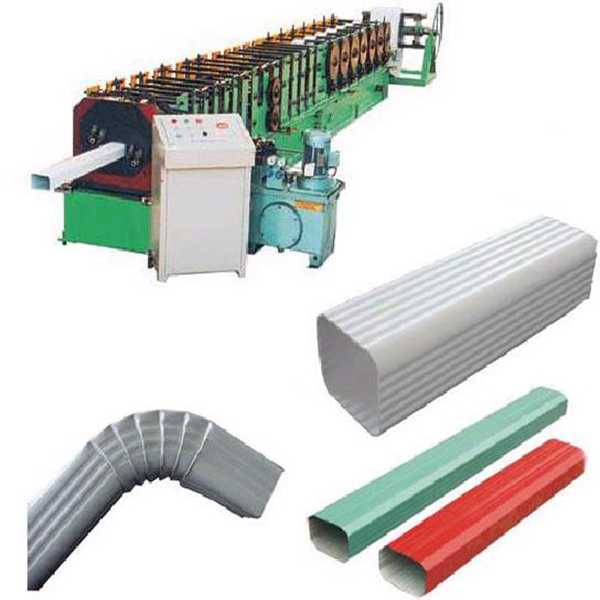

Professional Downspout Roll Forming Machine FX120 Edge Forming Machine
Professional Downspout Roll Forming Machine FX120 Edge Forming Machine
Professional Downspout Roll Forming Machine FX120 Edge Forming Machine
Professional Downspout Roll Forming Machine FX120 Edge Forming Machine
Specifications
Brand Name :
Feixiang
Model Number :
FX120
Certification :
CE BV ISO
Place of Origin :
China
MOQ :
1set
Price :
Please check with the supplier
Payment Terms :
L/C, T/T, D/P, D/A, Western Union, MoneyGram
Supply Ability :
30 sets per week
Delivery Time :
15 days
Packaging Details :
Nude packing,but we can also packing according the customer requirements
Machine name :
Professional Downspout Roll Forming Machine FX120 Edge Forming Machine
size :
11800mm*1200mm*900mm
Weight :
7.2tons
Control :
PLC computer with different language
Material :
GI,PPGI.AL
Speed :
0-15m/min
Description

Professional Downspout Roll Forming Machine FX120 Edge Forming Machine​

1. Our factory information and main products

The gutter produced by our Color steel rain gutter machine are very beautiful and straight, this is because our machine are produced more precision, this will make sure the ready-made gutter are beautiful and good quality.
2. Main Material used

Material: Color steel ,galvanized steel or Aluminum
Feeding width:392mm
Material thickness:0.3-0.8mm
Yield strength:235-450mpa


3. Machine composition

No.

Name

Unit

Qty

1

Decoiler

set

1

2

Main Machine for roll forming

set

1

3

Control System(PLC)

set

1

4

Pressing System

set

1

5

Cutting System

set

1

6

Output Table

set

1


4. Main parameters

Model number

Professional Downspout Roll Forming Machine FX120 Edge Forming Machine

Rolled material

0.3-0.8mm thickness, aluminum sheet, galvanized sheet, colored steel
sheet and various steel plates

Effective width

120mm

Feeding width

392mm

Forming steps

24 stations

Roller

45# forged steel, hard chrome plating within 0.05mm

Diameter of shaft

62mm

Main motor power

5.5 kw

Pump power

3 kw

Sprocket chain

1 inch

Drive type

by chain

Cutting Blade

Cr12, heat treatment 60-62°C

Frequency Converter

It has the advantage of slowing down before cutting, to ensure the
length accuracy (±1mm, far better than industrial standard ±3mm).

component

1 set of manual decoiler,1 set of main roll forming machine,1 set of
computer control cabinet,1 set of hydraulic System,1 set of
cutting mechanism,1 set of counter,1 set of output table

Payment terms

cash,T/T,L/C.

Delivery time

30 working days


Professional Downspout Roll Forming Machine FX120 Edge Forming Machine
