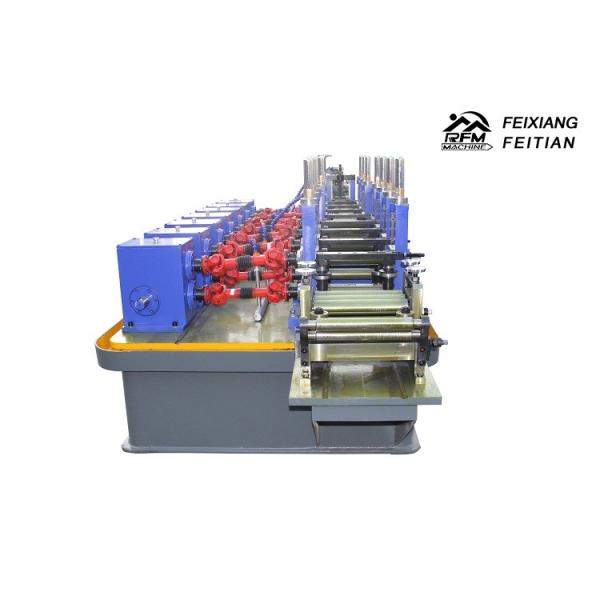

Welding Plant Stainless Steel Welding Machine Easy Operate Pipe Making Machine

The HG50 high frequency welded pipe forming machine is intended for manufacturing of round pipe of Φ16mm-Φ50mm with thickness of 0.5mm–2.5mm from cold-rolled and hot-rolled coil strip by means of unclosed tubular blank with its subsequent welding into tube, edge heating by means of solid state high-frequency welder, longitudinal seam welding in rolls of tube welding machine, cooling, further sizing or shaping and on-stream cutting of endless tube in measured lengths.Finished product will be of round, square or rectangular pipe.

Advantages:

♥ As a manufacturer we are specialized in all kinds of roll forming machine.

♥ Good experience of 20 years to make roll forming machine.

♥ Good experience for export more then 40 countries.

♥ Provide best price,good quality and fast delivery.

Simple introduction:

High Frequency Welded pipe Unit adopts advanced welding technology and offers dual welding arcs, increased speed, higher deposition, superior mechanical properties and quality. HG50, HG 79 high frequency welded pipe machine is widely applied for producing tubes for h

eat exchanger, refrigerator, frame of car, bicycle, fitness equipment, furniture, cooling machine, petrol transmission, construction industry, etc. This high frequency weld pipe forming machine composes of a complete set of pipe forming machine, rotating capstan, decoiler, straightening machine, shearing,accumulator, tube mill section, flying saw and packaging device. Now we have four types machines which are divided by wall thickness and diameter.

Cutting saw

It's used for continuous production of the length of the steel pipe according to their own requirements set foot cut off

1) Round pipe sawing: Φ12- Φ64mm

2) Max square pipe sawing: 60*40m

3) Thickness of round pipe: 0.4-2.0mm

4) Thickness of square pipe: 0.4-1.5mm

5) Cutting precision: <±2mm

6) Motor power of sawing: 7.5kw

7) Motor power of operation: 18.5kw
