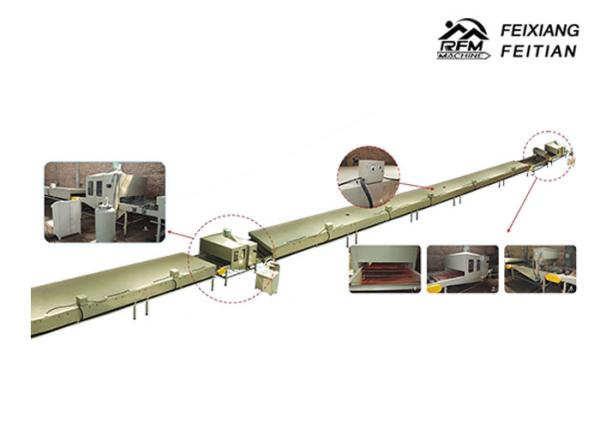

FX-1250 Sandwich Panel Roll Forming Machine Stone Coated Sand Spray Moulding Machine Line

Features:

1. Light weight,environmenttal protection and economical

2. Durability and life-long service

3. Easy installed

4. Nice appearance and fashion windproof

Machine info:

Model number: FX-1250

Machine size: 60m x 0.80m x 1.5m

Weight: 6.5T

Voltage requirement: 380v 50hz3p

Working speed: 5 pieces/min

Machine components:

1) Automatic bottom glue spraying equipment

2) Automatic Sandblasting Room

3) First drying room

4) Automatic surface glue spraying equipment

5) Second drying room equipment component

Detailed description:

1). Automatic bottom glue spraying equipment

Outside Dimension: 800*1350*850mm(L*W*H)

Structure: Channel steel ,welded

Transmission: 2.2 kw Variable-frequency adjustable-speed motor 0-32R/Min

Conveying device: Reciprocating chain conveys

Automatic glue spraying assembly with motor: 0.06kw

Adsorption of dust removal equipment: 1 set

Air compressor: 1 set 0.09m³

Automatic pressure glue canister : 1 set(Range of adjustable pressure:0.1-0.6MPa)

Automatic glue spraying gun: 4 sets

Fill glue gun: 5 sets

Glue gun stand: 1 set

2). Automatic Sandblasting Room

Outside Dimension : 3000*1850*700mm(L*W*H)

Structure: Channel steel ,angle steel ,welded

Transmission: With glue spraying equipment compound chain transmit

Conveying device: Compound chain transmit

Automatic sand hopper: 1 set (dimension 550*600*500mm)

Automatic rising machine: 1 set(Rising height:1.9m Power:300kg/h)

Sand-blasting gun: 4 sets

3). First drying room

Outside Dimension : 25000*800*1200mm(L*W*H)

Structure: carbon steel welded

Frame type heat preservation wall: fill up with heat preservation material which is bended with 1mm carbon steel

Automatic temperature controller: 2 sets,Range of adjustable temperature:0-160°

Infrared fluorescent tube: 50 pcs

Conveying device: Reciprocating chain conveys

Cool device: 1 set

4). Automatic surface glue spraying equipment

Outside Dimension : 3000*850*700mm(L*W*H)

Structure: carbon steel welded

Automatic glue spraying gun : 2 sets

Automatic spraying assembly: 1 set (Range of pressure:0.1-0.6MPa)

Adsorption of dust removal equipment: 1 set

Manual spraying gun: 5 sets

5). Second drying room equipment component

Outside Dimension : 25000*800*1200mm(L*W*H)

Structure: carbon steel welded

Frame type heat preservation wall: fill up with heat preservation material which is bended with 1mm carbon steel

Automatic temperature controller: 2 sets(Range of adjustable temperature:0-160°)

Infrared fluorescent tube: 50 pcs

Conveying device: Reciprocating chain conveys

Cool device: 1 set

Automatic printing code and marking: 1 set of automatic printer

Total equipment matches total control station 1 set (Control system)

Productivity: 3-6m/min Calculate as 1.2m per piece,eight hours, produce 1500pcs every day

Whole machine power: 150kw

Our service:

Warranty: 1 year

After-sales service: One year ,and we will provide the technical support for the whole life.
