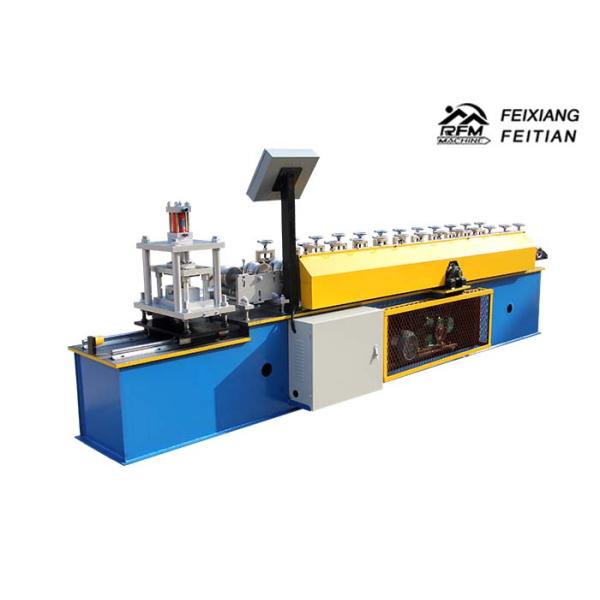

Roller Shop Steel Door Frame Making Machines 25m/Min Speed 5500*800*900mm Size
Roller Shop Steel Door Frame Making Machines 25m/Min Speed 5500*800*900mm Size
Specifications
Brand Name :
Feixiang
Model Number :
shutter
Certification :
CE BV ISO
Place of Origin :
China
MOQ :
1set
Price :
Please check with the supplier
Payment Terms :
L/C, T/T, D/P, D/A, Western Union, MoneyGram
Supply Ability :
30 sets per week
Delivery Time :
15 days
Packaging Details :
Nude packing,but we can also packing according the customer requirements
Machine name :
Roller Shop Shutter Door Machine Rolling Forming Machine
size :
5500*800*900mm
Weight :
3.3tons
Control :
PLC computer with different language
Speed :
25m/min
Material :
GI,PPGI.AL
Description

Roller Shop Shutter Door Machine Rolling Forming Machine

1. Description

For making the perfect shape rolling shutter door panel, we manufactured the shutter door roll forming machine with the flying saw cutter as you wish, or if you like the hydraulic shearing, we also can make for you, When cuter part working, the voice is very big and noisy, For avoid this problem we changed the cutter part to Mold Cutter. When the cutter part working , the voice is very less and the cutter part also very neat no burr. Here are some pictures for your reference.
2. Main Material used

Material: Color steel ,galvanized steel or Aluminum
Feeding width:75mm
Material thickness:0.3-0.8mm
Yield strength:235-450mpa


3. Machine composition

NameSETUse TO
3T Manual decoiler1 setLoading the coil
Main forming machine and cutter1 setforming the shape.Cutting the length as request.
PLC control system1set

1.Language as request
2.Text and touch screen for chose
3.Brand PLC:Panasonic /Delta /Mitsubish

Oil pump1 setMake coolling as request
Product stand1 setStand finishing product
RemarkAll equipment can order as customer’s request


4. Main parameters

Effective width98mm
Feeding width100mm
Forming steps12 stations
RollerCr12 hard chrome plating within 0.05mm
Diameter of shaft60mm
Main motor power5.5 kw
Pump power4 kw
Sprocket chain1 inch
Drive typeby Gears
Cutting BladeCr12, heat treatment 60-62°C
Frequency ConverterIt has the advantage of slowing down before cutting,
to ensure the length accuracy
(±1mm, far better than industrial standard ±3mm).
component1 set of manual decoiler,1 set of main roll forming machine,
1 set of computer control cabinet,1 set of hydraulic System,
1 set of cutting mechanism,1 set of counter,1 set of output table
Payment termscash,T/T,L/C.
Delivery time30 working days



Roller Shop Steel Door Frame Making Machines 25m/Min Speed 5500*800*900mm Size
