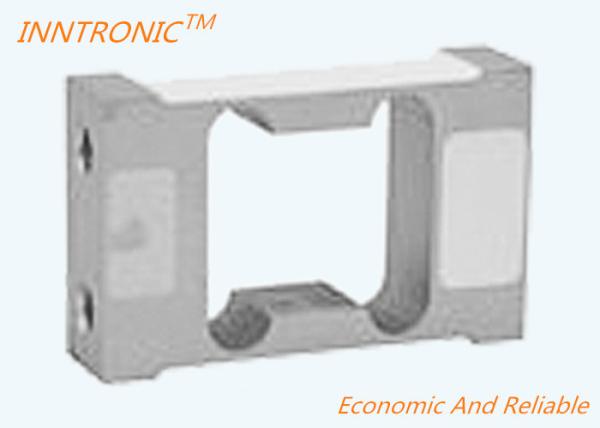

IN-651F Load Cell 8kg Single Point Weight force sensor For Weighing Machine For Eletronic Pricing Scale IP66
IN-651F Load Cell 8kg Single Point Weight force sensor For Weighing Machine For Eletronic Pricing Scale IP66
Specifications
Brand Name :
inntronic
Model Number :
IN-651F
Place of Origin :
China
MOQ :
1pc
Payment Terms :
L/C
Delivery Time :
15-30 days
Price :
Negotiable
Certification :
CE
Pattern :
Single Point Load Cell
Capacity :
4kg 5kg 8kg 10kg 15kg 20kg
output :
2mv/v
Material :
Aluminum
Application :
eletronic peicing scale, electronic package scale
interchangeable brand :
HBM
IP protection :
IP66
Accuracy :
OIML R60 C3
Nonlinearity :
0.017%
size :
80*20*50
Description

IN-651F 4 5 8 10 15 20kg Single Point Load Cell for eletronic peicing scale

IP66 Protection Single Point Load Cell Easy Installation For Eletronic Peicing Scale

Good quality with competitive price.

capacity:4kg 5kg 8kg 10kg 15kg 20kg

  • complies with OIML R60 C3 regulations
  • IP66 protection
  • Off-center load compensated
  • single point 200*200 platform
  • suitable for eletronic peicing scale, electronic package scale and other electronic weighing devices.

Dimensions
Rate Capacity L L1 W H H1 T
kg/mm
4-20 80 60 20 50 28 M8
lb/inches(conversion of above dimensions)
8.82-44.09 3.15 2.36 0.79 1.97 1.1 M8
SPECIFIATIONS
Full Scale Output 1.0±20%mV/V Recommed Excitation 10V(15V Maximnm)
Zero Balance ±0.04mV/V Reference Max.Platform Size 200*200mm
Nonlinearity <±0.017% Insulation Resisitance >2[50V DC]GΩ
Repetability <±0.017% Nominal Temperature Range -10℃to40℃/14℉to104℉
Hysteresis Error <±0.017% Safe Overload 150% of full scale
Creep in 30 min <±0.02% Breaking Overload 300% of full scale
Input Resistance 405Ω±10 IP Rating IP66
Output Resistance 350Ω±3 Cable Color Code Exc+:Red;Exc-Black;Sig+Green;Sig-:White Shidld Bare
Element Materia Aluminum
