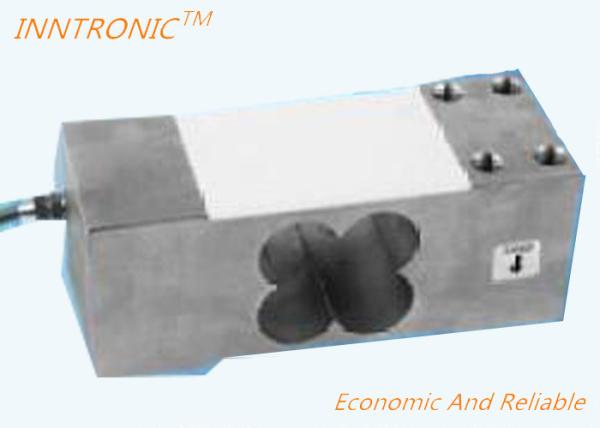

Load Cell IN-ILB 2t Platform bench scale Waterproof Aluminum alloy Single Point weight force sensor 2.0+0.2mV/V
Load Cell IN-ILB 2t Platform bench scale Waterproof Aluminum alloy Single Point weight force sensor 2.0+0.2mV/V
Specifications
Brand Name :
inntronic
Model Number :
IN-ILB
Place of Origin :
China
MOQ :
1pc
Payment Terms :
L/C
Delivery Time :
15-30 days
Price :
Negotiable
pattern :
Single Point Load Cell
Capacity :
50kg 100kg 150kg 200kg 300kg 500kg 1t 2t
output :
2mv/v
Material :
Alloy Steel
Application :
Platform scale
interchangeable brand :
HBM
IP protection standard :
IP65
accuracy grade :
C3
cable length :
3m
size :
190*75*75
Description

IN-ILB 50 0.1t to 2t Single Point Load Cell for Platform scale

Waterproof Alloy Steel Load Cell Fast Dynamic Response With Strong Reset Ability for weighing scale

products details

Accuracy grade:C3

Sensitivity:2.0+0.2mV/V

Non-linearity:0.03%F.S

Rated load 50,100,150,200,300,500kg,1t,2t Nomina Temp Range -10~+40℃
Accuracy class 0.03 Operating Temp Range -30~+70℃
Sensitivity 2.0+0.2mV/V Safe load limit 150%F.S
Non-linearity ±0.03%F.S Breaking load 200%F.S
Hysteresis error ±0.03%F.S Nominal of range excitation 10～12V DC
Creep(30min) ±0.02%F.S Protection Class IP65
TC O ±0.02%F.S/10℃ Material Alloy Steel
TC SPAN ±0.02%F.S/1O℃ Cable Length=3m
Input resistance 400±20Ω Max.platform size 600×800mm
Output resistance 352±5Ω
Insulation resistance ≥5000MΩ

Load Cell IN-ILB 2t Platform bench scale Waterproof Aluminum alloy Single Point weight force sensor 2.0+0.2mV/V

±0.03%F.S
