Load Cell IN-ZSWFG C5 alloy steel 10t to 50t Truck Scale Hopper Scale weighbridge sensor Laser Welding Seal IP69K 2mv/v
Load Cell IN-ZSWFG C5 alloy steel 10t to 50t Truck Scale Hopper Scale weighbridge sensor Laser Welding Seal IP69K 2mv/v
Specifications
Brand Name :
inntronic
Model Number :
IN-ZSWFG
Place of Origin :
China
MOQ :
1 pc
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
1000pcs/month
Delivery Time :
15-30days
Pattern :
Canister compression column load cell
capacity :
10t to 50t
output :
2mv/v
material :
alloy steel,stainless housing (ZSWF-AD,ZSWFB-AD,ZSWFG-AD) 100% made by stainless (ZSWF-ADSS,ZSWFB-ADSS,ZSWFG-ADSS)
application :
Truck Scale Hopper Scale Axle Load Scale Railway Scale
Interchangeable brand :
HBM
7.IP Protection standard :
IP68（ZSWF）； IP69K(ZSWFB，ZSWFG)
Accuracy grade :
C5
Cable length :
16m
size :
10t :diaimeter:99mm height:200mm
Description

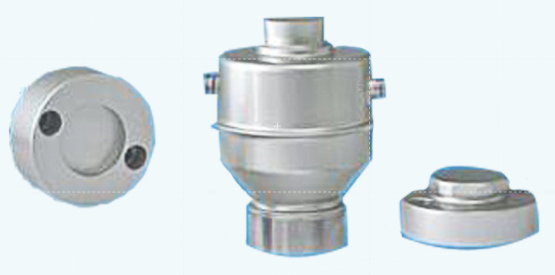

IN-ZSWFG 10t to 50t Canister compression column load cell for truck scale

16m Cable C5 Industrial Load Cells All Laser Welding Seal For Hopper Scale Stable and good quality
Product Details

FEATURES:
● Capacity 10t to 50t
● Double shake column structure digital sensor
● High degree of sealing
● OIML C5 approved
● Optional stainless steel, alloy steel available
● Optional fixed joint(ZSWF),Single air plugs(ZSWFB),Dual air plugs(ZSWFG)

APPLICATION:
● Truck Scale
● Hopper Scale
● Axle Load Scale
● Railway Scale

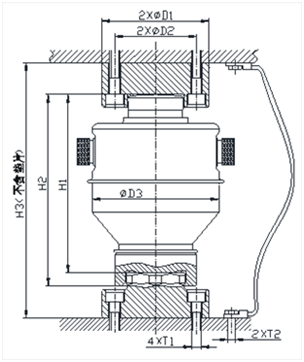

Rated capacity D1 D2 D3 H1 H2 H3 T1 T2
10t,20t,30t,40t,50t,60t 83.5 64 99 140 150 200 M8 M8


SPECIFICATION:
Rated capacity: 10ton to 50ton Maximum safe overload: 150% OF R.C
Combined error: ±0.02% F.S Ultimate safe overload: 200% OF R.C
Non-repeatability: ±0.01% F.S Recommended Excitation: 7 to 15V DC
Non-linearity: ±0.01% F.S

Environment protection: IP68(ZSWF)；
IP69K(ZSWFB,ZSWFG)
Hysteresis error: ±0.02% F.S Communication BPS: 9600/19200
Temperature effect on zero: ±0.012% F.S Communication Mode: RS 485
Temperature effect on output: ±0.01% F.S Material: alloy steel+stainless housing (ZSWF-AD,ZSWFB-AD,ZSWFG-AD) 100% made by stainless (ZSWF-ADSS,ZSWFB-ADSS,ZSWFG-ADSS)
Compensated temperature range: -10 to +40℃ cable: length__16meter；diameter__φ8.8mm
Operating temperature range: -30 to +70℃
Rated capacity: 10ton to 50ton Maximum safe overload: 150% OF R.C
Combined error: ±0.02% F.S Ultimate safe overload: 200% OF R.C

Load Cell IN-ZSWFG C5 alloy steel 10t to 50t Truck Scale Hopper Scale weighbridge sensor Laser Welding Seal IP69K 2mv/v

Load Cell IN-ZSWFG C5 alloy steel 10t to 50t Truck Scale Hopper Scale weighbridge sensor Laser Welding Seal IP69K 2mv/vLoad Cell IN-ZSWFG C5 alloy steel 10t to 50t Truck Scale Hopper Scale weighbridge sensor Laser Welding Seal IP69K 2mv/v

A load cell is a highly accurate and reliable device used to measure weight or force. It is commonly used in industrial and commercial applications where precise weight measurements are required. Load cells are designed to convert the force applied to them into an electrical signal that can be easily measured and recorded.

At its core, a load cell consists of a metal body with strain gauges attached to it. When a force is applied to the load cell, the metal body deforms slightly, causing the strain gauges to change their resistance. This change in resistance is then converted into an electrical signal that can be read by a computer or other device.

Load cells come in a variety of shapes and sizes, and can be used in a wide range of applications. They are commonly used in weighing scales, industrial machinery, and even in medical equipment. Load cells are known for their high accuracy and reliability, making them an essential tool for many industries.

If you are looking for a high-quality load cell, it is important to choose a reputable supplier. Look for a supplier that offers a wide range of load cells, and that has a proven track record of providing reliable and accurate products. With the right load cell, you can ensure that your weight measurements are always accurate and reliable, helping you to improve your processes and increase efficiency.
