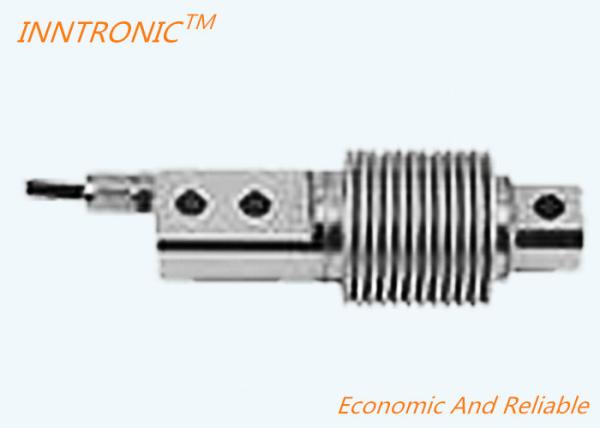

Load Cell IN-35501 0.5 Ton bellow Force Tester Alloy Steel weight sensor C3 2mv/v
Load Cell IN-35501 0.5 Ton bellow Force Tester Alloy Steel weight sensor C3 2mv/v
Specifications
Brand Name :
inntronic
Model Number :
IN-35501
Place of Origin :
China
MOQ :
1pc
Payment Terms :
L/C
Delivery Time :
15-30 days
Price :
Negotiable
Pattern :
Share Beam Silo Load Cell
capacity :
10kg to 500kg
output :
2mv/v
Material :
Stainless Steel/Alloy Steel
application :
silo scale
interchangeable brand :
HBM
IP protection standard :
IP68
accuracy grade :
OIML R60 C2 C3
cable length :
3m
size :
120*25.5*45
Description

IN-35501 10kg to 500kg Single Ended Silo Load Cell for silo scale

High Motion Action Silo Load Cells 120*25.5*45 Strong Resistance To Partial Loading for silo scale

features:
  • Accuracy class to OIML R60 C2 C3
  • Sensitivity(Cn)/Zero balance:2.0 ±0.002/0 ±0.02
  • Non-linearity:0.0250 ±0.0167

Items UNIT TECHNICAL DATA
Accuracy class to OIML R60 C2 C3
Maximum capacity(Emax): kg 10,20,50,75,100,200,250,300,500,1000
Minimum LC verification interval(Vmin) % of Emax 0.0200 0.0100
Sensitivity(Cn)/Zero balance mV/V 2.0 ±0.002/0 ±0.02
Temperature effect on zero balance(TKo)

% of

Cn/10k

 ±0.02 ±.0017
Temperature effect on sensitivity(TKc)

% of

Cn/10k

 ±0.02 ±.0017
Hysteresis error(dhy): % of Cn ±0.0270 ±0.0180
Non-linearity(din) % of Cn ±0.0250 ±0.0167
Creep(dcr) over 30 min % of Cn ±0.0233 ±0.0167
Input(Rlc)&output resistance(Ro) Ω 400±10 & 352±3
Nominal range of excitation voltage(Bu) V 5~12
Insulation resistance(Ris) at 50 Vdc MΩ ≥5000
Service temperature range(Btu) ℃ -30...+70
Safe load limit(El)&breaking load(Ed) % of Emax 120 &200
Protection class according to EN 60 529(IEC 529) IP68

Material: measuring element

cable fitting Cable sheath

Stainless or alloy steel stainless steel or nickel-plated brass

PVC
Maximum capacity(Emax) kg 10 20 50 75 100 200 250 300 500 1000
Deflection at Emax(snom),approx mm 0.31 0.39 0.55
Weight(G),approx kg 0.5 1.9
Cable: Diameter: φ5mm Length: 5mm m 3 5

Load Cell IN-35501 0.5 Ton bellow Force Tester Alloy Steel weight sensor C3 2mv/v Load Cell IN-35501 0.5 Ton bellow Force Tester Alloy Steel weight sensor C3 2mv/v
