IN-100-1 Static Portable Vehicle Weighing Scale Pads IP66 500kg,1t,2t with indicator For Trucks Four Channels precision 0.1-0.3%FS
IN-100-1 Static Portable Vehicle Weighing Scale Pads IP66 500kg,1t,2t with indicator For Trucks Four Channels precision 0.1-0.3%FS
Specifications
Brand Name :
inntronic
Model Number :
IN-100-1
Place of Origin :
china
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, T/T
pattern :
IN-100-1
Rated load :
500kg,1t,2t
Static comprehensive error(%F.S) :
0.1-0.3
Rated output(mV/V) :
1.0±0.1
Non-linearity(%F.S) :
0.2
Error on corners(%F.S) :
0.2
Description

Four-channels Static Portable Car/Vehicle Weighing System

Four - Channels Static Portable Truck Scales , 1t 2t Vehicle Weighing Systems

Special Features:

Stable test results – nearly test results in the repeattesting for one axle

Canstore as many as 10000 vehicle testing records;

Fourchannels that can be connected to Four weighing pad and develop to be static weighing,display four wheel weight, each axle weight and gross weight

Stable test results – nearly test results in the repeat testing for one axle

Can store as many as 10000 vehicle testing records;

Four channels that can be connected to Four weighing pad and develop to be static weighing,display four wheel weight,,each axle weight and gross weight

Dispay uints: kg

Max load per platform 2000 kg, total load per 4 platforms 8000 kg

4 connectors to link the 4 plaforms

Precision: 0.1-0.3%FS

power supply: built-in 6V/10AH leading acid accumulator, and can connect with DC source (7.5V/3A or 12V/3A)

parts:

4pcs portable weighing pads

8pcs slope

Four channels-Static weighing indicator

RS232 port is used to communicate with PC and printer

Four channels-Static weighing indicator

size: 400mm X 300mm X 180 mm

netweight: 8KG

material: ABS structural foam

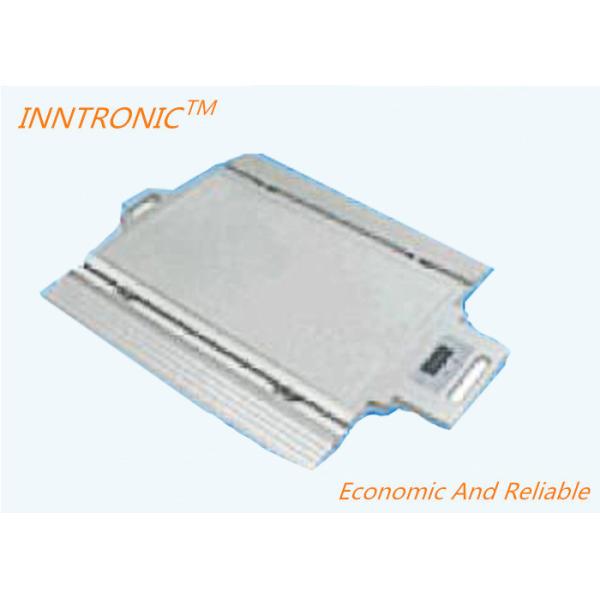

weighing pads

size: 405 mm(L) X 345mm(W)X 15mm(H)

netweight:8KG/pcs

materials: High strength Aluminum alloy

slope

size: 405mm (L) X 100mm(W) X 15(H) mm

netweight: 3 KG/pcs

materials: High strength Aluminum alloy

Parts::

CZ-100 weighing pad(The weighing pad’s model can be changed according to customer’s request)

Four-channels Static Portable Car/Vehicle Weighing System FEATURES:
Aluminum-alloy; Ultra thin weighpad design; Easily mounted / unmounted slope; Hermetically sealed, suits different environment; Works both dynamically and statically; Can be used to measure axle weight and whole vehicle weight when four weigh-pads are connected together.

Four-channels Static Portable Car/Vehicle Weighing System

Size: 400mm X 300mm X 180 mm

◆ Four channels that can be connected to Four weighing pad

◆ Micro printer is embedded in the instrument, the print ticket contains date, time, truck no, ticket no, axle weight, joint axle weight, truck weight, overload and executive organization

◆ Floating technology is adopted to remove zero drift.

◆ Touch screen LCD Monitor, Numbered options,easy

◆ RS232 port is used to communicate with PC

◆ The instrument can work independently. And it also can upload testing data to computers

◆ mature inquiry and statistic function

◆ The auto power supply system can be used for providing electricity and charging

PARAMETER

Rated load: 500kg,1t,2t
Static comprehensive error(%F.S): 0.1-0.3
Rated output(mV/V): 1.0±0.1 Insulation resistance(MΩ): ≥5000(100VDC)
Non-linearity(%F.S): 0.2 Compensated temp.range(℃): -10~+50
Error on corners(%F.S): 0.2 Use temp.range(℃): -30~+80
Repeatariy(%F.S): 0.05 Temp.effect on zero(F.S/10℃): 0.03
Zero balance(%F.S): ±1 Temp.effect on span(F.S/10℃): 0.05
Excitation voltage(VDC): 9~15 Safe overload(%): 120
Recommended voltage(V): 10 Ultimate overload(%): 150
Defend grade: IP66 Netweight(kg): 8

IN-100-1 Static Portable Vehicle Weighing Scale Pads IP66 500kg,1t,2t with indicator For Trucks Four Channels precision 0.1-0.3%FSIN-100-1 Static Portable Vehicle Weighing Scale Pads IP66 500kg,1t,2t with indicator For Trucks Four Channels precision 0.1-0.3%FSIN-100-1 Static Portable Vehicle Weighing Scale Pads IP66 500kg,1t,2t with indicator For Trucks Four Channels precision 0.1-0.3%FSIN-100-1 Static Portable Vehicle Weighing Scale Pads IP66 500kg,1t,2t with indicator For Trucks Four Channels precision 0.1-0.3%FS
