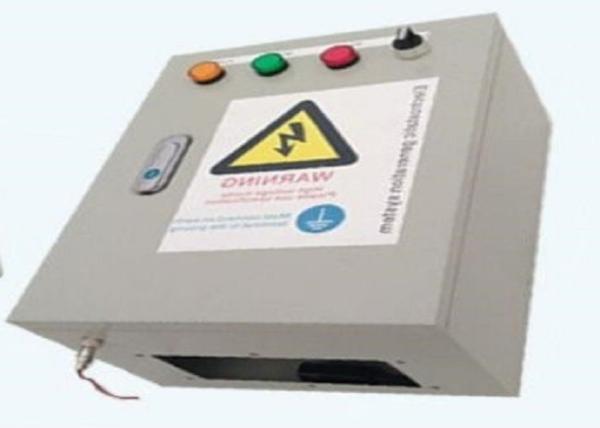

DC503S 30KV Grey Electrostatic Charging Generator power supply for Cast film 350 W 100V～240VAC
DC503S 30KV Grey Electrostatic Charging Generator power supply for Cast film 350 W 100V～240VAC
DC503S 30KV Grey Electrostatic Charging Generator power supply for Cast film 350 W 100V～240VAC
DC503S 30KV Grey Electrostatic Charging Generator power supply for Cast film 350 W 100V～240VAC
Specifications
Brand Name :
inntronic
Model Number :
DC503S
Place of Origin :
china
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, T/T
pattern :
DC503S
Input Voltage :
100V～240VAC
Max Input Power :
350 W
Output Voltage :
30 KV
Max Output Current :
10mA
Max Output Power :
300 W
Description

DC503S (Case type) high power 30KV Charging Generator high voltage power supply 100V～240VAC

DC503S 30KV Static Charging Generator High Voltage for Wood pressing line 10mA*300 W

1. Introduce

DC503s case type charging generator is a kind of static application equipment. The static charging generator is composed of a static emitter (bar) and a DC high voltage power supply. For DC high voltage power supply, provide plasma launcher(bar) of negative (or positive) high voltage,to emit negative ions (or positive ions) and then add electronic charge(artificial charge) on an object (workpiece). The higher the voltage, the greater the effective range. It is widely used in non-woven fabric, film, painting, printing, flocking, sorting and biological engineering fields. It have many advantages like simple installation, fire protection, no electric shock and stable work.

3. Applications:

Inmold labelling(IML),Wood pressing line,Cast film,Bag making on roll,Film on to the Roll cores,Board laminating, Flat bag with Gusset, Side Weld Bag Handles.

2. Technical parameters:

Input Voltage 100V～240VAC
Max Input Power 350 W
Output Voltage 30 KV
Max Output Current 10mA
Max Output Power 300 W
Output Polarity 1pc 30kv+ or 1pc 30kv-
Working Temperature -15℃～60℃
Output Stability Max Load 1％
Output connector 30kv*1 or 30kv*2
Voltage control Stepless pressure regulation
Remote control Support signal line remote switch control
Weight 7 kg
Size 400*300*200mm

DC503S 30KV Grey Electrostatic Charging Generator power supply for Cast film 350 W 100V～240VAC
