S001-BIG Aluminum-alloy Portable dynamic Axle Heavy Duty Truck Scale IP6510km/H 40T for car weighting 500×900×58mm IP66
S001-BIG Aluminum-alloy Portable dynamic Axle Heavy Duty Truck Scale IP6510km/H 40T for car weighting 500×900×58mm IP66
S001-BIG Aluminum-alloy Portable dynamic Axle Heavy Duty Truck Scale IP6510km/H 40T for car weighting 500×900×58mm IP66
S001-BIG Aluminum-alloy Portable dynamic Axle Heavy Duty Truck Scale IP6510km/H 40T for car weighting 500×900×58mm IP66
Specifications
Brand Name :
Inntronic
Model Number :
INPT-S001-S
Place of Origin :
China
MOQ :
1pc
Price :
Negotiable
Payment Terms :
T/T
Model :
S001-BIG
Size(A×B×C) :
500×900×58
Capacity(Double Pads for One Axel) :
20000/30000/40000Kg
Description(Each Pad) :
10000/15000/20000Kg
Rated load: :
1/2/3/5/6/10/20/30T
Dynamic error (%F.S) :
3 (5~10km/h)
Description

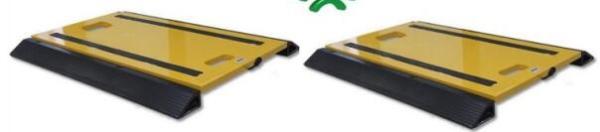

INPT-S001-S S001-BIG wireless portable truck scale

500×900×58 40000Kg 10km/H Portable Axle Scales

Aluminum-alloy; Ultra thin weigh pad design; Easily mounted / unmounted slope; Hermetically sealed, suits different environment;Works both dynamically and statically;Can be used to measure axle weight and whole vehicle weight when two or four weigh-pad connected together.

Outline Dimension (mm):

S001-BIG Aluminum-alloy Portable dynamic Axle Heavy Duty Truck Scale IP6510km/H 40T for car weighting 500×900×58mm IP66

Configuration Table:

Model

Size(A×B×C)

(mm)

Capacity

(Double Pads for One Axel)

 Description(Each Pad)
S001-BIG 500×900×58 20000/30000/40000Kg

Capacity:10000/15000/20000Kg
Product Parameters
Rated load:1/2/3/5/6/10/20/30T Compensated temp.range(℃): -10~+50
Dynamic error (%F.S): 3 (5~10km/h) Static error (%F.S):0.1~0.3
Static comprehensive error(%F.S): 0.1~0.5 Insulation resistance(MΩ): ≥5000(100VDC)
Rated output(mV/V): 1.0±0.1 Use temp.range(℃): -30~+80
Non-linearity(%F.S): 0.2 Temp.effect on zero(F.S/10℃): 0.03
Error on corners(%F.S): 0.2 Temp.effect on span(F.S/10℃): 0.05
Repeatariy(%F.S): 0.05 Safe overload(%): 120
Zero balance(%F.S): ±1 Ultimate overload(%): 150
Excitation voltage(VDC): 9~15 Net weight(kg): 45
Recommended voltage(V): 10 Defend grade: IP66

Wireless Specification
A/D conversion method Σ-Δ 24bit
Input signal range –19.5mV~19.5mV
Load cell excitation DC 5V
Max. connection number of load cell 1~4
Load cell connection mode 4 wire
Operating temperature -10 °C ~40 °C
Allowable working temperature -40 ° C ~ 70 ° C
Wireless transmission frequency 430MHz to 470MHz
Wireless transmission distance 800 meters (In Open Place)
