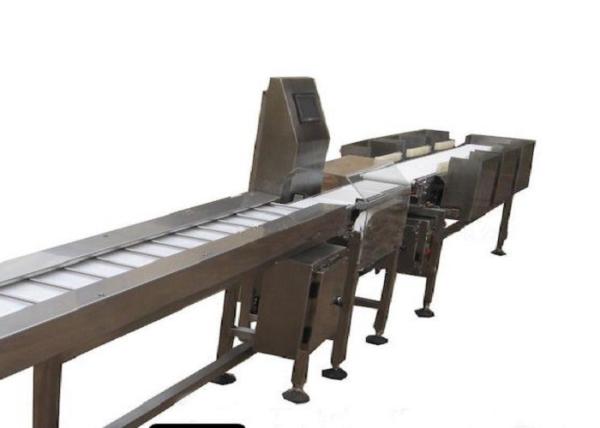

DF-GD200 7 Section 0.4-0.8Mpa Weight Sorting Scale 5g-200g IP66 For Meat Food Display Division 0.1g AC220/50Hz
DF-GD200 7 Section 0.4-0.8Mpa Weight Sorting Scale 5g-200g IP66 For Meat Food Display Division 0.1g AC220/50Hz
Specifications
Brand Name :
Innovation
Model Number :
DF-GD200
Place of Origin :
China
MOQ :
1PC
Price :
EXW HANGZHOU
Payment Terms :
T/T, Western Union
Supply Ability :
100pcs per month
Packaging Details :
Wooden Carton
Max weight :
200g
Min weight :
5g
Display division value :
0.1g
Dynamic weighing accuracy :
≤±0.5g（Depending on package size and weight）
System processing efficiency :
50-60 pcs /min（Calculated in continuous conveying mode）
Power supply :
AC220/50Hz(User supplied to machine side)
Description

7-section weight sorting scale 5g-200g

■ Model No.:DF-GD200

■ Max weight:200g

■ Min weight:5g

■ Display division value:0.1g

■ Dynamic weighing accuracy:≤±0.5g(Depending on package size and weight)

■ System processing efficiency: 50-60 pcs /min(Calculated in continuous conveying mode)

■ Front conveyor line L*W:450*210mm(The details will be modified after seeing the sample)

■ Weighing conveyor line L*W:450*210mm(The details will be modified after seeing the sample)

■ Reject conveyor line L*W:2400*210mm(The details will be modified after seeing the sample)

■ Height of worktable: 750 mm,Adjustable range ± 50 mm

■ Applicable maximum Item length:350 mm Modifiable

■ Applicable maximum Item width:200 mm Modifiable

■ Belt linear speed: 10-15 min variable speed motor

■ Conveyor belt material: White PVC belt

■ Power supply:AC220/50Hz(User supplied to machine side)

■ Air source:0.4-0.8Mpa(User supplied to machine side)

■ Operating temperature:-1℃-40℃

■ Basic conditions:Horizontal solid concrete ground, the concrete thickness shall be greater than 10cm.

Working process

A,The operator sets the HI OK LO quantitative value (call)

B,The operator press【start】Button；

C,The conveyor starts to run, and the objects to be inspected are sent to the conveyor. The system automatically detects that the objects enter the weighing platform. After entering the weighing platform, the system automatically grabs the weight and judges the area value of the weight;

D,Qualified——Pass；

E,Unqualified—rejector;

F,One process completed

Configuration specification: 1 Main equipment

No. Item Qty Remark
1 Electronic control system 1
It is composed of stainless steel control box, 7-inch touch screen integrated machine of PLC system, control button, Zhongtai relay, variable frequency speed control components, electric control components, etc.
2 Weighing system 1
Imported METTLER TOLEDO load cell,Install accessories, etc.
3 Conveyor system 3
60W DC brushless motor, Shanghai new standard PVC belt (food grade), synchronous belt, master-slave roller (stainless steel), belt pulley, installation accessories, etc
4 Air control system 6
AIRTAC solenoid valve,AIRTAC FRL,AIRTAC Air cylinder / quick connector, through plate connector, air pipe, etc.
5 Rack structure 1
304 stainless steel frame, installation components, stainless steel guide device, adjustable foot base, installation accessories, etc.
6 Rejector device 6
Cylinder rejection device(Brand:Japan SMC)
7 Accompanying spare parts 1

2,Options

No. Item Qty Remark
1 Windscreen: transparent acrylic. 1
