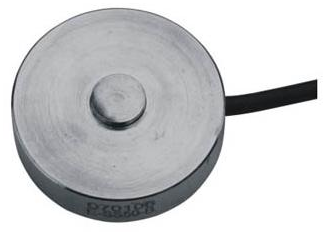

200lb 500lb Stainless Steel Load Cell
200lb 500lb Stainless Steel Load Cell
Specifications
Brand Name :
Innovation
Model Number :
HZFS-026
Place of Origin :
China
MOQ :
10pcs
Payment Terms :
L/C, D/P, T/T, Western Union
Supply Ability :
1000pcs per month
Packaging Details :
carton
Rated capacities(Emax) :
50, 100, 200, 500lb, 1,3,5,7.5,10klb, 100kg
Recommended Excitation :
10V DC
Material :
Stainless Steel
Description

HZFS-026 Mini Load Cell

Stainless Steel Mini Load Cell Pressure Testing For Small Space with various capacities

Detailed Product Description

Rated capacities(Emax): 50, 100, 200, 500lb, 1,3,5,7.5,10klb, 100kg

Recommended Excitation: 10V DC

Construction: Stainless Steel

Application: Pressure Testing For Small Space

Type: Micro Load Cell

200lb 500lb Stainless Steel Load Cell

200lb 500lb Stainless Steel Load Cell

Items UNIT TECHNICAL DATA
Rated capacities(Emax) lb, kg 50, 100, 200, 500lb, 1,3,5,7.5,10klb, 100kg
Sensitivity mV/V 1.0±0.5
Total error F.S ±0.05%; ±1%(3~10klb)
Creep error(30min) F.S ±0.3%
Zero balance F.S ±1%
TCO F.S/℃ ±0.05% / 10
TC SPAN F.S/℃ ±0.05% / 10
Input impedance Ω 380±30
Output impedance Ω 350±5(2~10klb); 352±3(50klb~1klb)
Insulation impedance MΩ ≥5000
Temperature range, operating ℃ -30~ +70
Maximum safe overload F.S 100%
Ultimate overload F.S 120%
Excitation, recommend V 10V DC
Excitation, maximum V 10V DC
Protection class IP67
Construction Stainless Steel
Cable m Length: 1.5
mm Diameter: φ3
Wiring Exc+(Red) Exc-(Black) Sig+(Green) Sig-(White)
