50kg Tension And Compression Load Cell 2.5-5V
50kg Tension And Compression Load Cell 2.5-5V
Specifications
Brand Name :
Innovation
Model Number :
INFS-022
Place of Origin :
China
MOQ :
10pcs
Payment Terms :
L/C, D/P, T/T, Western Union
Supply Ability :
1000pcs per month
Packaging Details :
carton
Rated capacities(Emax) :
5~50kg
Recommended Excitation :
2.5~5V
Material :
Stainless Steel
Description

Screw Tension And Compression Force Sencor mini Load Cell

Screw Tension And Compression Force Sencor Stainless Steel mini Load Cell for robotic hands

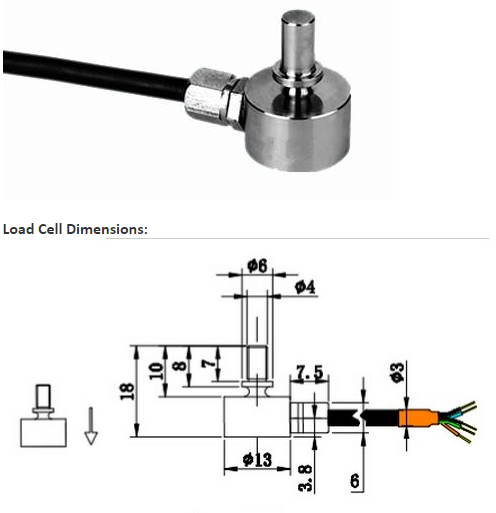

INFS-022 Screw Tension and Compression Force Sencor Load Cell

Force measurement in small space installation,such as feeling tester for keyboard switch, compression force measurement for hot and cold lamination machine, and grasping force measurement for robotic hands.


50kg Tension And Compression Load Cell 2.5-5V

Capacity 5-50kg Material Stainless Steel
Rated Output 1.0-1.5mV/V Output Impedance 350±3Ω
Zero Balance ±2%F.S. Insulation ≥5000MΩ/100VDC
Non-linearity 1.0-5%F.S. Recommended Excitation 2.5-5V
Hysteresis 1.0%F.S. Maximum Excitation 10V
Repeatability 1.0%F.S. Compensated Temp Range -10~60ºC
(30)Creep (30min) 0.1%F.S. Operating Temp Range -20~80ºC
Temp Effect on Output 0.1%F.S./10ºC Safe Load Limit 120%
Temp Effect on Zero 0.1 %F.S./10ºC Ultimate Load Limit 150%
Input Impedance 350±5Ω Cable Size φ(2-3)x 3m
Wire Connection Ex + : Red; Ex - : Black; Sig + : Green; Sig - : White
