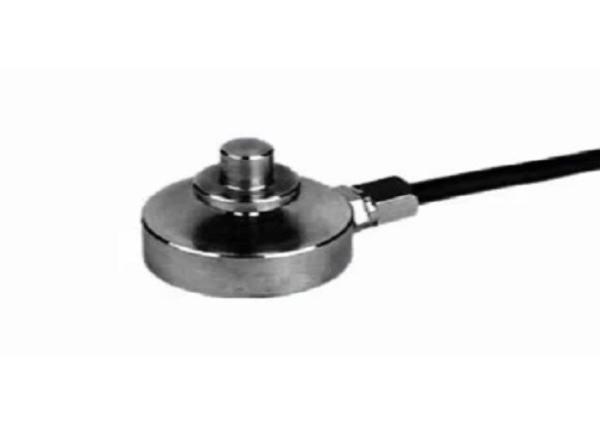

INFS-019 20KG Stainless Steel Tension And Compression round Load Cell Weight Force Sensor For Lamination 5-10V
INFS-019 20KG Stainless Steel Tension And Compression round Load Cell Weight Force Sensor For Lamination 5-10V
Specifications
Brand Name :
Innovation
Model Number :
INFS-019
Place of Origin :
China
MOQ :
10pcs
Payment Terms :
L/C, D/P, T/T, Western Union
Supply Ability :
1000pcs per month
Packaging Details :
carton
Rated capacities(Emax) :
5~50kg
Recommended Excitation :
5-10V
Material :
Stainless Steel
Application :
lamination
Description

Stainless Steel 5~50kg Screw Tension And Compression mini Load cell

INFS-019 5~50kg Screw Tension And Compression Stainless Steel mini Load Cell in small space installation

INFS-019 Screw Tension and Compression Force Sencor Load Cell, Force measurement in small space installation,such as feeling tester for keyboard switch, compression force measurement for hot and cold lamination machine, and grasping force measurement for robotic hands.

Load Cell Parameters:

Capacity 5-50kg Material Stainless Steel
Rated Output 1.0-1.5 mV/V Output Impedance 1000±3Ω
Zero Balance ±2%F.S. Insulation ≥5000MΩ/100VDC
Non-linearity 0.5%F.S. Recommended Excitation 5-10V
Hysteresis 0.5%F.S. Maximum Excitation 15V
Repeatability 0.5%F.S. Compensated Temp Range -10~60ºC
(30)Creep (30min) 0.05%F.S. Operating Temp Range -20~80ºC
Temp Effect on Output 0.1%F.S./10ºC Safe Load Limit 120%
Temp Effect on Zero 0.1%F.S./10ºC Ultimate Load Limit 150%
Input Impedance 1000±5Ω Cable Size φ3x 3m
Wire Connection Ex + : Red; Ex - : Black; Sig + : Green; Sig - : White
