Mini Load Cell HZFS-011 200kg micro Stainless Steel Weighing Tension And Compression weight sensor 2.5-5V
Mini Load Cell HZFS-011 200kg micro Stainless Steel Weighing Tension And Compression weight sensor 2.5-5V
Specifications
Brand Name :
Innovation
Model Number :
HZFS-011
Place of Origin :
China
MOQ :
10pcs
Payment Terms :
L/C, D/P, T/T, Western Union
Supply Ability :
1000pcs per month
Packaging Details :
carton
Rated capacities(Emax) :
5 ~ 100kg
Recommended Excitation :
2.5-5V
Material :
Stainless Steel
item name :
Stainless Steel Load Cell
Description

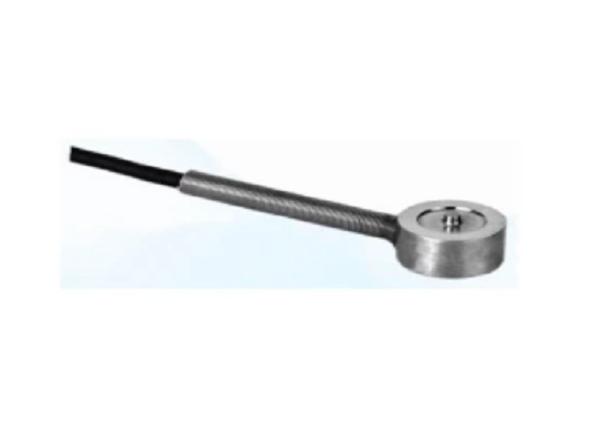

HZFS-011 Mini Force Sensor

HZFS-035 Screw Tension And Compression 200kg 1.0-1.5mV/V Mini Load Cell for welding machine

HZFS-011 Mini Force Sensor

capacity: 5 ~ 100kg

Recommended Excitation: 2.5-5V

Material: Stainless Steel

Force measurement in small space installation,such as feeling tester for keyboard switch,compression force measurement for hot and cold lamination machine,and grasping force measurement for robotic hands.

Mini Load Cell HZFS-011 200kg micro Stainless Steel Weighing Tension And Compression weight sensor 2.5-5V

Capacity 5 ~ 100kg Material Stainless Steel
Rated Output 0.5/1.0-1.5 mV/V Output Impedance 350±3Ω
Zero Balance ± 2%F.S. Insulation ≥5000MΩ/100VDC
Non-linearity 1.0-5.0%F.S. Recommended Excitation 2.5-5V
Hysteresis 1.0-5.0%F.S. Maximum Excitation 5V
Repeatability 1.0-5.0%F.S. Compensated Temp Range -10~60ºC
Creep (30min) 0.1-0.5%F.S. Operating Temp Range -20~80ºC
Temp Effect on Output 0.1%F.S./10ºC Safe Load Limit 150%
Temp Effect on Zero 0.1%F.S./10ºC Ultimate Load Limit 200%
Input Impedance 350±10Ω Cable Size φ2x3m
Wire Connection Ex + : Red; Ex - : Black; Sig + : Green; Sig - : White
