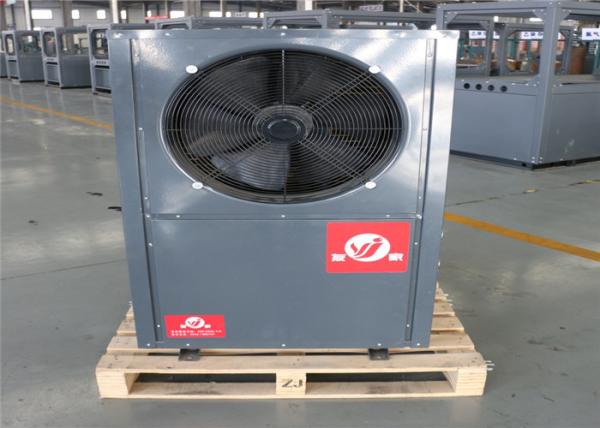

Low Noise Commercial Cooling Units , Electric Air Source Heat Pump 50HZ
Low Noise Commercial Cooling Units , Electric Air Source Heat Pump 50HZ
Specifications
Model Number :
YW-140D（40P)
Type :
Air Source Heat Pump
Application :
Hotel,Commercial and industrial
Product Name :
Commercial Heat Pump
Rated input power :
9.8Kw
Function :
Heating And Cooling
Air Blow Type :
Top
Place of Origin :
China
Brand Name :
YouJIA New energy
Certification :
CCC, ISO, CQC
MOQ :
1 set
Price :
Negotiable
Packaging Details :
Reinforced Carton box with wooden tray
Delivery Time :
1-2 weeks
Payment Terms :
T/T
Supply Ability :
10 sets/day
Description

YW-140D(40P) Low Noise Electric Air Source Heat Pump Top Air Blow Type Stable Running

In domestic heating use, an ASHP absorbs heat from outside air and releases it inside the building, as hot air, hot water-filled radiators, underfloor heating and/or domestic hot water supply. The same system can often do the reverse in summer, cooling the inside of the house. When correctly specified, an ASHP can offer a full central heating solution and domestic hot water up to 80 °C


Common commercial type


Applicable to schools, hotels, hospitals, factories, communities, clubs and other places where heating, cooling and hot water are required.


Imported fully enclosed scroll compressor with low noise;


The main components are all imported brands;


It can realize 45%~100% four-level energy regulation or frequency conversion adjustment;


Intelligent control, efficient and safe, easy to operate;


Intelligent defrosting design;


Small footprint, no need for machine room, easy installation and maintenance;


Widely used in public facilities such as hotel shopping malls, office buildings.

Heat pump function: Heating, cooling, hot water

Unit parameters:

Unit Type YW-35D(10P) YW-70D(20P) YW-140D(40P)

Rated power/frequency

 380V 3N~/50HZ

Cooling mode

 Cooling mode(KW) 35.4 70.8 141.6
input power(KW) 11.16 22.32 46.4
Heating mode

Nominal condition

(7℃)

 Heating(KW) 28.8 57.6 115.2
Rated input power(KW) 10.8 21.6 43.2

Low temperature condition

(-12℃)

Rated heating capacity

(KW)

 23.8 47.6 95.2

Rated input power

(KW)

 9.8 19.6 39.2
Maximum input current(A) 27.7 55.4 110.8
Circulating pump flow (m³/h) 6.43 12.87 25.72
Refrigerant/charge(R22/Kg) 9 18 36
Hot water rated temperature 45℃

Refrigeration inlet and outlet water temperature		 5~15℃
Hot water maximum temperature 55℃
waterproof level IP×4
Anti-shock protection category I Grade
Ambient temperature range 30~40℃
Unit noise db(A) ≤60 ≤65 ≤65
Unit weight(Kg) 320 650 1300
Unit size(mm) 1590*850*1600 2000*1100*2090 2200*2000*2170

Low Noise Commercial Cooling Units , Electric Air Source Heat Pump 50HZ
