Cooling Air Source Heat Pump System Cooling Most Efficient YW-70D 20P I Grade
Cooling Air Source Heat Pump System Cooling Most Efficient YW-70D 20P I Grade
Specifications
Model Number :
YW-70D(20P)
Type :
Air Source Heat Pump
Application :
Hotel,Commercial and industrial
Product Name :
Commercial Heat Pump
input power(KW) :
22.32
Function :
Heating, cooling, hot water
Maximum input current(A) :
55.4
Place of Origin :
China
Brand Name :
YouJIA New energy
Certification :
CCC, ISO, CQC
MOQ :
1 set
Price :
Negotiable
Packaging Details :
Reinforced Carton box with wooden tray
Delivery Time :
1-2 weeks
Payment Terms :
T/T
Supply Ability :
10 sets/day
Description

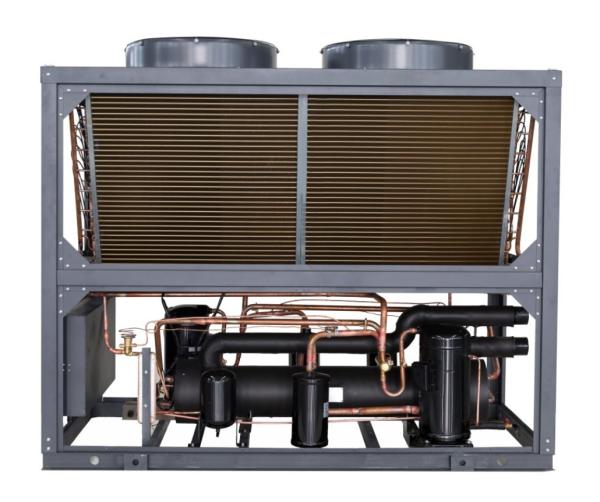

YW-70D(20P) Cooling Most Efficient Air Source Heat Pump For Office Building Air Conditioning

Air source heat pumps can provide fairly low cost space heating. A high efficiency heat pump can provide up to four times as much heat as an electric heater using the same energy. In comparison to gas as a primary heat source, however, the lifetime cost of an air source heat pump may be affected by the price of electricity compared to gas (where available). Use of gas may be associated with higher carbon emissions, depending upon how the electricity is generated.


Common commercial type


Applicable to schools, hotels, hospitals, factories, communities, clubs and other places where heating, cooling and hot water are required.


Imported fully enclosed scroll compressor with low noise;


The main components are all imported brands;


It can realize 45%~100% four-level energy regulation or frequency conversion adjustment;


Intelligent control, efficient and safe, easy to operate;


Intelligent defrosting design;


Small footprint, no need for machine room, easy installation and maintenance;


Widely used in public facilities such as hotel shopping malls, office buildings.

Heat pump function: Heating, cooling, hot water

Unit parameters:

Unit Type YW-35D(10P) YW-70D(20P) YW-140D(40P)

Rated power/frequency

 380V 3N~/50HZ

Cooling mode

 Cooling mode(KW) 35.4 70.8 141.6
input power(KW) 11.16 22.32 46.4
Heating mode

Nominal condition

(7℃)

 Heating(KW) 28.8 57.6 115.2
Rated input power(KW) 10.8 21.6 43.2

Low temperature condition

(-12℃)

Rated heating capacity

(KW)

 23.8 47.6 95.2

Rated input power

(KW)

 9.8 19.6 39.2
Maximum input current(A) 27.7 55.4 110.8
Circulating pump flow (m³/h) 6.43 12.87 25.72
Refrigerant/charge(R22/Kg) 9 18 36
Hot water rated temperature 45℃

Refrigeration inlet and outlet water temperature		 5~15℃
Hot water maximum temperature 55℃
waterproof level IP×4
Anti-shock protection category I Grade
Ambient temperature range 30~40℃
Unit noise db(A) ≤60 ≤65 ≤65
Unit weight(Kg) 320 650 1300
Unit size(mm) 1590*850*1600 2000*1100*2090 2200*2000*2170

Cooling Air Source Heat Pump System Cooling Most Efficient YW-70D 20P I Grade
